Maruti Suzuki Swift Dezire- fuse box diagram

26 July 2019 admin Maruti Suzuki, Swift 0

Maruti Suzuki Swift Dezire- fuse box diagram

Fuses box in engine compartment

Maruti Suzuki Swift Dezire - fuse box - engine compartment
Maruti Suzuki Swift Dezire – fuse box – engine compartment
Fuse Ampere rating [A] Description
(1) 100 FL1 (GAS)
120 FL1 (DIESEL)
(2) 100 FL2
(3) 100 FL3
(4) 50 FL4
(5) 80 FL5
(6) 100 FL6
(7) 50 Ignition switch -2
(8) 7,5 ECM
(9) 15 Automatic Transmission Relay
(10) — Blank
(11) 10 Air compressor
(12) 15 FI (GAS)
(13) 30 FI (DIESEL)
(14) 60 Power steering
(!5) 30 Radiator fan
(16) 40 ABS motor
(17) 30 Blower fan
(18) 30 Starting motor
(19) — Blank
(20) 30 Accessory
(21) — Blank
(22) 15 Head light (left)
(23) 25 ABS control module
(24) 15 Head light (right)
(25) 20 Front fog light
(26) — Blank
(27) 40 Ignition switch
(28) 7,5 Starting Signal
(29) 10 INJ DRV (DIESEL)
(30) 10 FL 2 (DIESEL)
(31) 15 F/P (DIESEL)

Fuse box under the dash board

Vehicle with keyless push start system

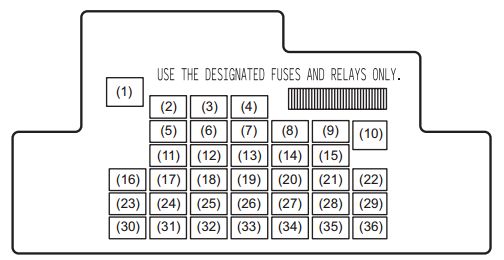

Maruti Suzuki Swift – fuse box – passeneger compartment – keyless push start system
Maruti Suzuki Swift – fuse box – passeneger compartment – keyless push start system
Fuse Ampere rating [A] Description
(1) 30 Belt
(2) 20 Power window
(3) 20 Steering lock
(4) 20 Rear defogger
(5) — Blank
(6) — Blank
(7) — Blank
(8) 7,5 Starting signal
(9) 15 ACC-2
(10) 30 Power window
(11) 10 Hazard
(12) 7,5 Blank
(13) 15 Ignition coil
(14) 10 ABS control module
(15) 15 ACC
(16) — Blank
(17) 15 Horn
(18) 10 Stop light
(19) 10 Air bag
(20) 10 Back-up light
(21) 15 Rear wiper/washer
(22) 25 Front wiper
(23) 7,5 Dome light
(24) — Blank
(25) 7,5 RR fog light
(26) — Blank
(27) 7,5 Ignition-1 signal
(28) 15 Radio 2
(29) 10 ACC 3
(30) 15 Radio
(31) 10 Tail lamp
(32) 20 D/L
(33) 7,5 CRUISE
(34) 10 Meter
(35) 7,5 Ignition-2 signal
(36) — Blank

Vehicle without keyless push start system

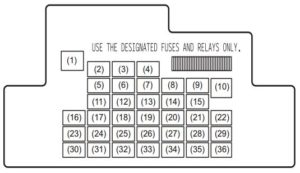

Maruti Suzuki Swift - fuse box - passeneger compartment - without keyless push start system
Maruti Suzuki Swift – fuse box – passeneger compartment – without keyless push start system
Fuse Ampere rating [A] Description
(1) 30 Belt
(2) — Blank
(3) — Blank
(4) 20 Rear defogger
(5) — Blank
(6) — Blank
(7) — Blank
(8) 7,5 Starting signal
(9) 15 ACC-2
(10) 30 Power window
(11) 10 Hazard
(12) — Blank
(13) 15 Ignition coil
(14) 10 ABS control module
(15) 15 ACC
(16) — Blank
(17) 15 Horn
(18) 10 Stop light
(19) 10 Air bag
(20) 10 Back-up light
(21) 15 Rear wiper/washer
(22) 25 Front wiper
(23) 7,5 Dome light
(24) — Blank
(25) 7,5 RR fog light
(26) — Blank
(27) 7,5 Ignition-1 signal
(28) — Blank
(29) — Blank
(30) 15 Radio
(31) 10 Tail lamp
(32) 20 D/L
(33) 7,5 Stop lamp sw/clutch sw
(34) 10 Meter
(35) 7,5 Ignition-2 signal
(36) — Blank

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
