Mazda 5 (2006) – fuse box diagram
Year of production: 2006

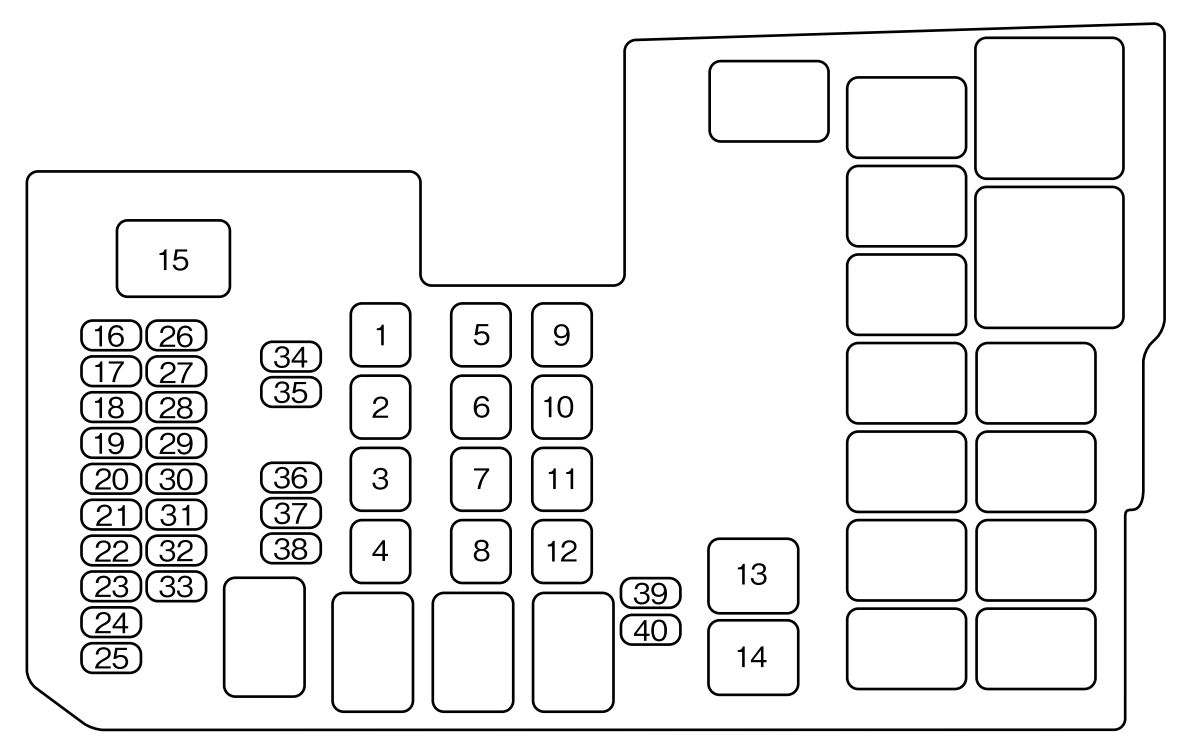

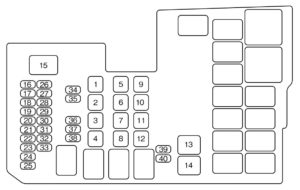

Fuse block (Engine compartment)
| Position | Description | Fuse rating [A] | Protected component |
| 1 | FAN | 30 | Cooling fan |
| 2 | FAN | 30 | Cooling fan |
| 3 | P.WIND | 40 | Power windows* |
| 4 | IG KEY1 | 30 | For protection of various circuits |
| 5 | ABS-V | 20 | ABS, DSC* |
| 6 | ABS-P | 30 | ABS, DSC* |
| 7 | IG KEY2 | 20 | For protection of various circuits* |
| 8 | HEATER DEICER | 20 | Water heater* |
| 9 | BLOWER | 40 | Blower motor |
| 10 | GLOW IG KEY1 | 40 | Glow plugs* |
| 11 | BTN | 40 | For protection of various circuits |
| 12 | IG KEY2 | 40 | For protection of various circuits * |
| 13 | CLOSER P.SLIDE LH | 20 | Easy closer,Power slide door (LH)* |
| 14 | CLOSER P.SLIDE RH | 20 | Easy closer,Power slide door (RH)* |
| 15 | EHPAS | 80 | EHPAS* |
| 16 | FOG | 15 | Front fog lights* |
| 17 | D.LOCK | 20 | Power door lock |
| 18 | P.WIND H/CLEAN | 20 | Headlight washer*, Power windows* |
| 19 | MAG | 10 | Magnet clutch |
| 20 | DEFOG | 25 | Rear window defroster |
| 21 | ENG+B | 10 | PCM |
| 22 | STOP | 10 | Brake lights |
| 23 | FUEL | 20 | Fuel pump*, Fuel warmer* |
| 24 | HAZARD | 10 | Turn signals, Hazard warning flashers |
| 25 | ROOM | 15 | Overhead lights, Map lights, Luggage compartment light, For protection of various circuits |
| 26 | — | — | — |
| 27 | — | — | — |
| 28 | GLOW SIG | 7,5 | PCM* |
| 29 | HEAD HR | 10 | Headlight high beams (RH) |
| 30 | HEAD HL | 10 | Headlight high beams (LH) |
| 31 | HORN | 15 | Horn |
| 32 | SUN ROOF | 20 | Sunroof* |
| 33 | ETC MIRROR BURGLAR | 7,5 | Theft-Deterrent Systemí |
| 34 | HEAD LR | 15 | Headlight low beams (RH), Manual Headlight leveling* |
| 35 | HEAD LL | 15 | Headlight low beams (LH) |
| 36 | ENG BAR2 | 15 | O2 heater* |
| 37 | ENG BAR | 15 | Air flow sensor, Engine control system |
| 38 | INJ | 20 | Injector*, PCM* |
| 39 | ILLUMI | 10 | Illumination |
| 40 | TAIL | 10 | Taillights, Parking lights, License plate lights, Rear fog light*, For protection of various circuits |
| *Some models | |||

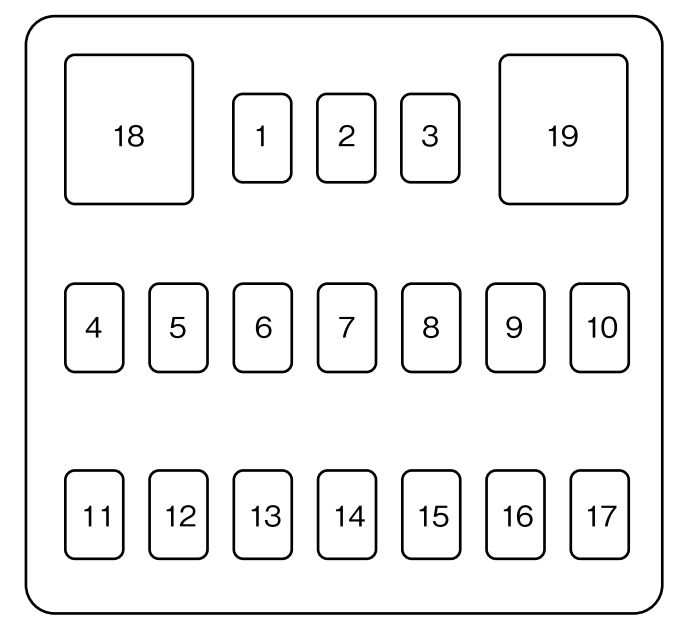

Fuse block (Passenger’s side)
| Position | Description | Fuse rating [A] | Protected component |
| 1 | M.DEF | 7,5 | Mirror defroster* |
| 2 | — | — | — |
| 3 | — | — | — |
| 4 | P.OUTLET | 15 | Accessory Socket |
| 5 | SHIFT/L | 5 | AT shift* |
| 6 | CIGAR | 15 | Lighter |
| 7 | MIRROR | 7,5 | Power control mirror, Audio system* |
| 8 | A/C | 10 | Air conditioner |
| 9 | F.WIP | 25 | Windshield wipers and washer |
| 10 | R.WIP | 15 | Rear window wiper and washer |
| 11 | ENG | 5 | Main relayí, PCMí |
| 12 | METER | 10 | Instrument cluster, Auto Headlight leveling* |
| 13 | SAS | 10 | Supplemental restraint systems |
| 14 | S.WARM | 15 | Seat warmer* |
| 15 | ABS/DSC | 5 | ABS, DSC* |
| 16 | EHPAS | 5 | EHPAS* |
| 17 | ENG2 | 15 | — |
| 18 | P/W | 30 | Power windows* |
| 19 | P/W | 40 | — |
| *Some models | |||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
