Mazda MPV (2002 – 2006) – fuse box diagram
Year of production: 2002, 2003, 2004, 2005, 2006

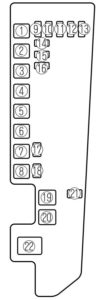

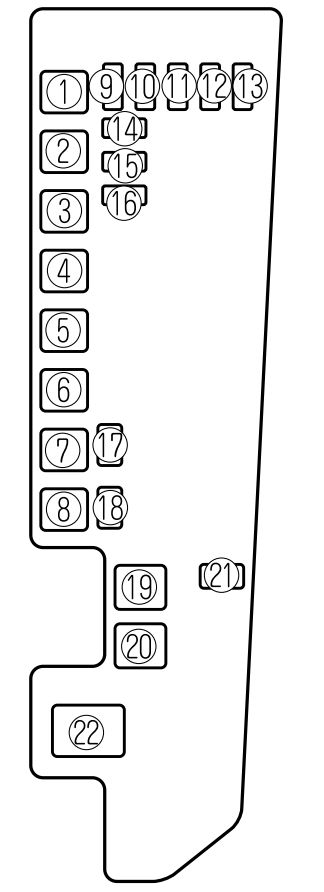

Fuse block (Engine compartment)
| Description | Ampere rating [A] | Description | |
| 1 | DEFOG | 40 | Rear window defroster |
| 2 | BTN | 60 | STOP, HAZARD, ROOM, D.LOCK and DRL fuses |
| 3 | ABS | 60 | Antilock brake system, For protection of various circuits |
| 4 | FAN1 | 30 | Cooling fan |
| 5 | FAN2 | 30 | Cooling fan |
| 6 | HEATER | 40 | Heater |
| 7 | R.HEAT | 30 | Rear heater, For protection of various circuits |
| 8 | IG KEY2 | 40 | A/C, P.WIND, SUN ROOF and R.WIP fuses |
| 9 | A/C | 10 | Air conditioner, For protection of various circuits |
| 10 | TAIL | 15 | Taillights |
| 11 | A/C PWR | 15 | Inverter |
| 12 | HORN | 15 | Horn |
| 13 | FOG | 15 | For protection of various circuits |
| 14 | EEC | 5 | For protection of various circuits |
| 15 | HEAD L | 15 | Headlight-left |
| 16 | HEAD R | 15 | Headlight-right |
| 17 | HID L | 20 | — |
| 18 | HID R | 20 | — |
| 19 | IG KEY1 | 60 | METER, ENGINE and WIPER fuses |
| 20 | EGI INJ | 30 | For protection of various circuits |
| 21 | FUEL PUMP | 20 | Fuel pump |
| 22 | MAIN | 120 | For protection of all circuits |

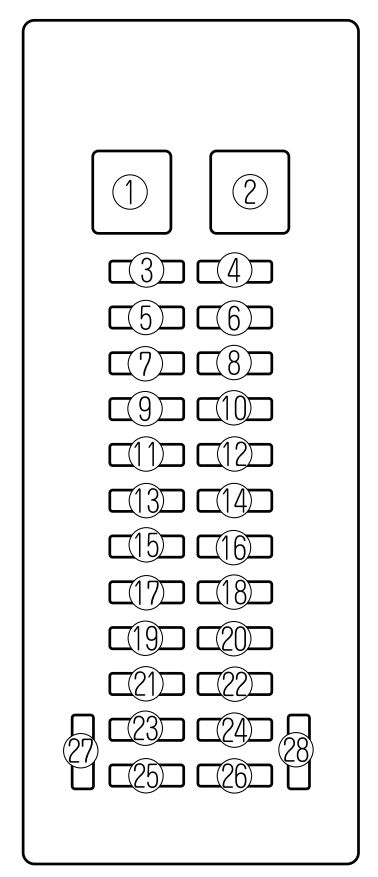

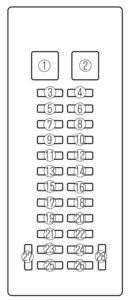

Fuse block (Driver’s side)
| Description | Ampere rating [A] | Description | |
| 1 | P.WIND | 30 | Power windows, For protection of various circuits |
| 2 | WIPER | 20 | Windshield wipers and washer |
| 3 | SUN ROOF | 15 | Sunroof, For protection of various circuits |
| 4 | R.WIP | 10 | Rear window wiper and washer |
| 5 | SEAT | 20 | For protection of various circuits |
| 6 | M.DEF | 10 | Mirror defroster, For protection of various circuits |
| 7 | A/C | 10 | Air conditioner, For protection of various circuits |
| 8 | DRL | 10 | For protection of various circuits |
| 9 | — | — | — |
| 10 | H/CLEAN | 20 | For protection of various circuits |
| 11 | — | — | — |
| 12 | HAZARD | 10 | Hazard warning flashers |
| 13 | ROOM | 15 | Overhead lights, Map lights, Luggage compartment light |
| 14 | AUX POWER | 25 | Accessory socket |
| 15 | CLOSER LH | 20 | For protection of various circuits |
| 16 | AUDIO | 10 | Audio system, For protection of various circuits |
| 17 | D.LOCK | 30 | Power door locks, For protection of various circuits |
| 18 | P/SEAT | 30 | Power seat |
| 19 | ENGINE | 10 | Engine control system |
| 20 | METER | 10 | Instrument cluster |
| 21 | STOP | 15 | Brake lights |
| 22 | CLOSER RH | 20 | For protection of various circuits |
| 23 | ACC. DELAY | 30 | Power windows delay, For protection of various circuits |
| 24 | METER | 15 | Instrument cluster, INH switch |
| 25 | ST.SIGN | 10 | Starter signal |
| 26 | CIGAR | 25 | Lighter |
| 27 | — | — | — |
| 28 | — | — | — |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
