Mazda Tribute (2010 – 2011) – fuse box diagram

Year of production: 2010, 2011

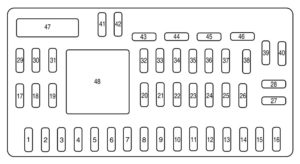

The fuse panel is located on the right-hand side of the center console, by the instrument panel.

Fuse/relay	Ampere rating [A]	Description
1	30	Not used (spare)
2	15	Brake On/Off switch
3	15	Not used (spare)
4	30	Moon roof
5	10	Brake-shift interlock (BSI), Passenger compartment fuse panel
6	20	Turn signals, Stop lamps
7	10	Low beam headlamps (left)
8	10	Low beam headlamps (right)
9	15	Interior lights
10	15	Backlighting
11	10	Four wheel drive
12	7,5	Power mirror switch
13	7,5	Not used (spare)
14	10	FCIM (radio buttons), Front display module
15	10	Climate control
16	15	Not used (spare)
17	20	All lock motor feeds, Liftgate release, Liftglass release
18	20	Heated seat
19	25	Rear wiper
20	15	Datalink
21	15	Fog lamps
22	15	Park lamps
23	15	High beam headlamps
24	20	Horn relay
25	10	Demand lamps
26	10	Instrument panel cluster
27	20	Ignition switch
28	5	Radio
29	5	Instrument panel cluster
30	5	Not used (spare)
31	10	Restraints control module
32	10	Rear video camera module
33	10	Not used (spare)
34	5	Not used (spare)
35	10	Four wheel drive, Electronic power steering (EPAS)
36	5	Passive anti-theft system (PATS) transceiver
37	10	Climate control
38	20	Subwoofer/Amp (Audiophile radio)
39	20	Radio
40	20	Front power point
41	15	Driver/passenger door lock switches, Moon roof, Camera display in mirror
42	10	Not used (spare)
43	10	Rear wiper logic, Heated seats relay, Instrument cluster
44	10	Not used (spare)
45	5	Front wiper logic, Blower motor relay
46	7,5	Occupant classification system (OCS), Passenger airbag deactivation indicator (PADI)
47	30 Circuit Breaker	Power windows, Moon roof
48	—	Delayed accessory relay

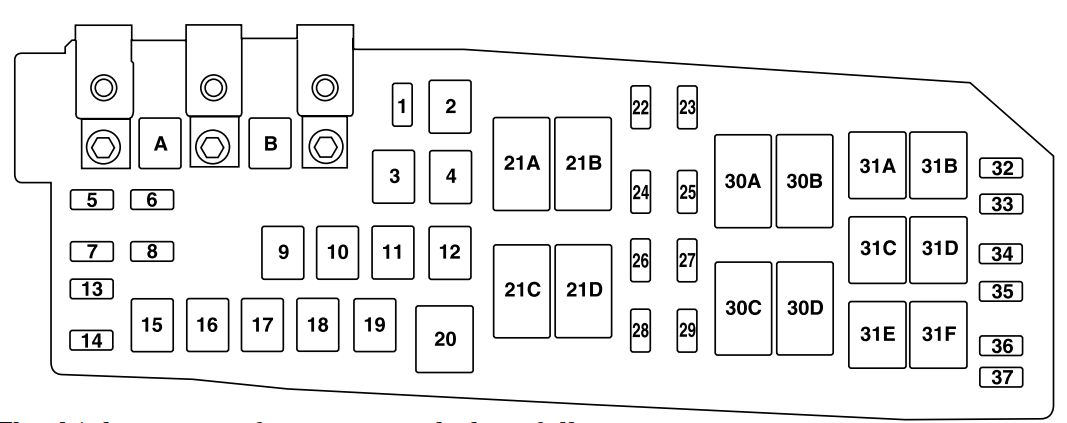

The power distribution box is located in the engine compartment.

Fuse/relay	Ampere rating [A]	Description
A	80 Midi	Electronic power steering module (EPAS)
B	125 Midi	Passenger compartment fuse panel
1	15*	Heated mirror
2	30**	Rear defroster
3	20**	Rear power point (center console)
4	—	Not used
5	10*	Powertrain control module (PCM) – keep alive power, PCM relay, Canister vent
6	15*	Alternator
7	10*	Liftgate latch
8	20*	Trailer tow parking lamps
*	50**	Anti-lock Brake System (ABS)
10	30**	Front wipers
11	30**	Starter
12	40**	Blower motor
13	10*	A/C clutch
14	15*	Trailer tow turn lamps
15	—	Not used
16	40**	Cooling fan 1
17	40**	Cooling fan 2
18	20**	ABS solenoid
19	30**	Power seats
20	—	A/C clutch relay
21A	—	Rear defroster relay
21B	—	Fuel relay
21C	—	Blower relay
21D	—	PCM relay
22	20*	Fuel pump
23	15*	Fuel injectors
24	—	Not used
25	5*	ABS
26	15*	Ignition coils
27	10*	PCM – general powertrain components malfunction indicator lamp
28	20*	PCM – emission related powertrain components malfunction indicator lamp
29	15*	PCM
30A	—	Cooling fan 1 relay
30B	—	Starter relay
30C	—	Cooling fan main relay
30D	—	Cooling fan 2 relay
31A	—	Reverse lamp relay
31B	—	Not used
31C		Trailer tow left turn relay
31D	—	Trailer tow right turn relay
31E	—	Trailer tow park relay
31F	—	Liftgate latch relay
32	—	Not used
33	—	PCM diode
34	—	Start diode
35	10*	Reverse lamp relay, Speed control module, Rear defrost relay
36	—	Not used
* Mini fuse ** Cartridge fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
