Mercedes-Benz 190 (1982 – 1993) – fuse box diagram
Year of production: 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993

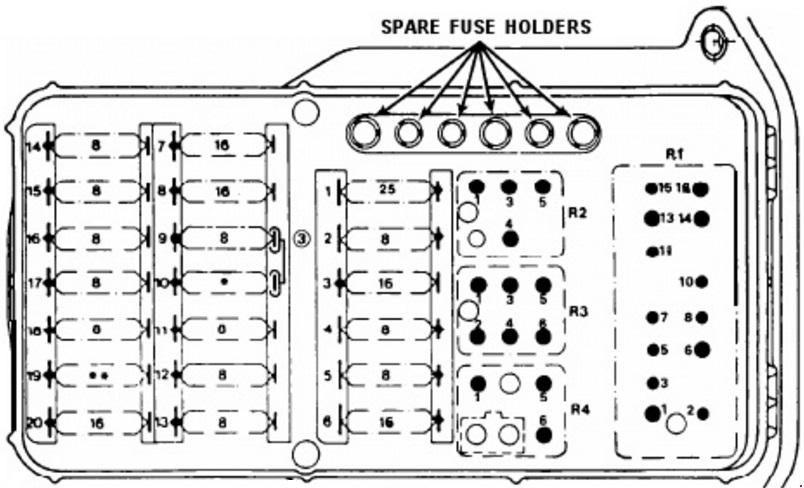

Fuse box
| No. |
A |
Circuits protected |
| 1 | 81) 162) 253) |
Auxiliary Fan/Coolant Fan Tempmatic Climate Control |
| 2 | 8 | Carburetor Auxiliary Fan/Coolant Fan Tempmatic Climate Control |
| 3 | 16 | Auxiliary Fan/Coolant Fan |
| 4 | 8 | Right high beam, high beam witness |
| 5 | 8 | Left high beam |
| 6 | 16 | Combined relay, Rear Defogger |
| 7 | 16 | Electric window motor rear right, front left |
| 8 | 16 | Electric window motor rear left, front right |
| 9 | 8 | Anti-Lock Brake System, Backup Lamps, Center Console, Cruise Control Gauges, Stop Lamps, Warning Indicators (fuel reserve light, brakepads wear light, brake liquid level light, handbrake), Electromagnetic Automatic Box Valve |
| 10 | 84) 165) |
Anti-Theft Alarm System, Auxiliary Fan/Coolant Fan, Fan – Magnetic coupling, Cruise Control, Electronic Engine Control, Heated Seats, Orthopedic Seats, Outside Heated Mirrors, Right Outside Mirror, Tachometer, Wiper/Washer, Al Heated Windshield Sprinkler, Outside Temperature Gauge, Relay For Idle Stop |
| 11 | 8 | Horn, Tempmatic Climate Control, Turn Signal Lamps, Warning System |
| 12 | 8 | Back interior lights, antenna Anti-Theft Alarm System, Central Locking System courtesy Lamps, Rear Reading Lamp, Power Seats |
| 13 | 8 | Rpm-meter, Automatic Antenna, Clock, Courtesy Lamps, Hazard Lamps, Radio/CD Player, Trunk Lamp, Warning System |
| 14 | 8 | Illumination: Instrument Cluster/Center Console, Headlamp Wiper/Washer, Lamps Park/Tail/Side, Marker (Right Side)/License/Shift Pattern, Warning System |
| 15 | 8 | Lamps: Park/Tail/Side, Marker (Left Side)/ License/ Shift Pattern |
| 16 | 8 | Fog Lamps |
| 17 | 8 | Headlamps (Right Low Beam) |
| 18 | 8 | Headlamps (Left Low Beam) |
| 19 | 16 | Cigar Lighter, Glove Box Lamp, Radio, Rear Defogfler, Sliding Roof (sunroof) |
| 20 | 16 | Headlamps, Headlamp Wiper/Washer, Wiper/Washer |
| Relay |
||
| R1 | Combination Relay (Rear Defogger, Timer, Wiper/Washer, Hazard/Turn Signal Flasher) | |
| R2 | Power Window Relay | |
| R3 | Auxiliary Fan Relay | |
| R4 | OVP Relay | |
| 1) As of model year 1990 2) Model years 1984 to 1988 3) Model years 1987 to 1989 4) Without Heated Seats 5) With Heated Seats |
||

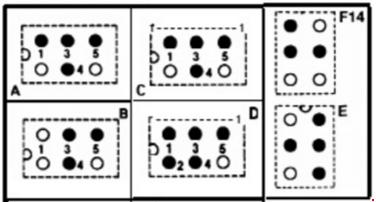

Auxiliary Relay Box
| No. |
A |
Circuits protected |
| 1 | 25 | From Power Seat Switches: From Height, Forward-Backward |
| 2 | 25 | Front Power Seat Switches: Rear Height, Backrest Control Unit |
| Relay | ||
| A | Power Seat Relay Auxiliary Fan High Sped Relay |
|
| B | Auxiliary Fuse Holder (Power Seat) | |
| C | Auxiliary Fan Relay (201.028/.034) Relay For Dual Auxiliary Fan (201.025) Power Seat Relay Auxiliary Fan High Sped Relay |
|
| D | Headlamp Washer Relay Anti-Theft Fuse Holder Power Seat Relay |
|
| E | Intake Manifold Pre-heater (190E 2.3) | |
| F14 | Ant-Theft Alarm (ATA) | |
Auxiliary Fuse Holder
| A |
Circuits protected |
| 8 | Cellular Telephone (TRU) |
| 16 | Heated Seals |
| 25 | Tempmatic Blower Switch |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
