Mercedes-Benz 300SD (1992 – 1993) – wiring diagrams – battery

Mercedes-Benz 300SD (1992 – 1993) – wiring diagrams – battery

Year of productions:  1992, 1993

Battery

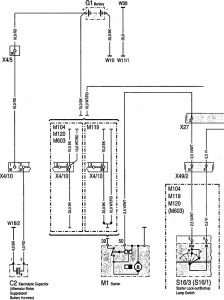

Mercedes-Benz 300SD - wiring diagram - battery (part 1)
Mercedes-Benz 300SD – wiring diagram – battery (part 1)

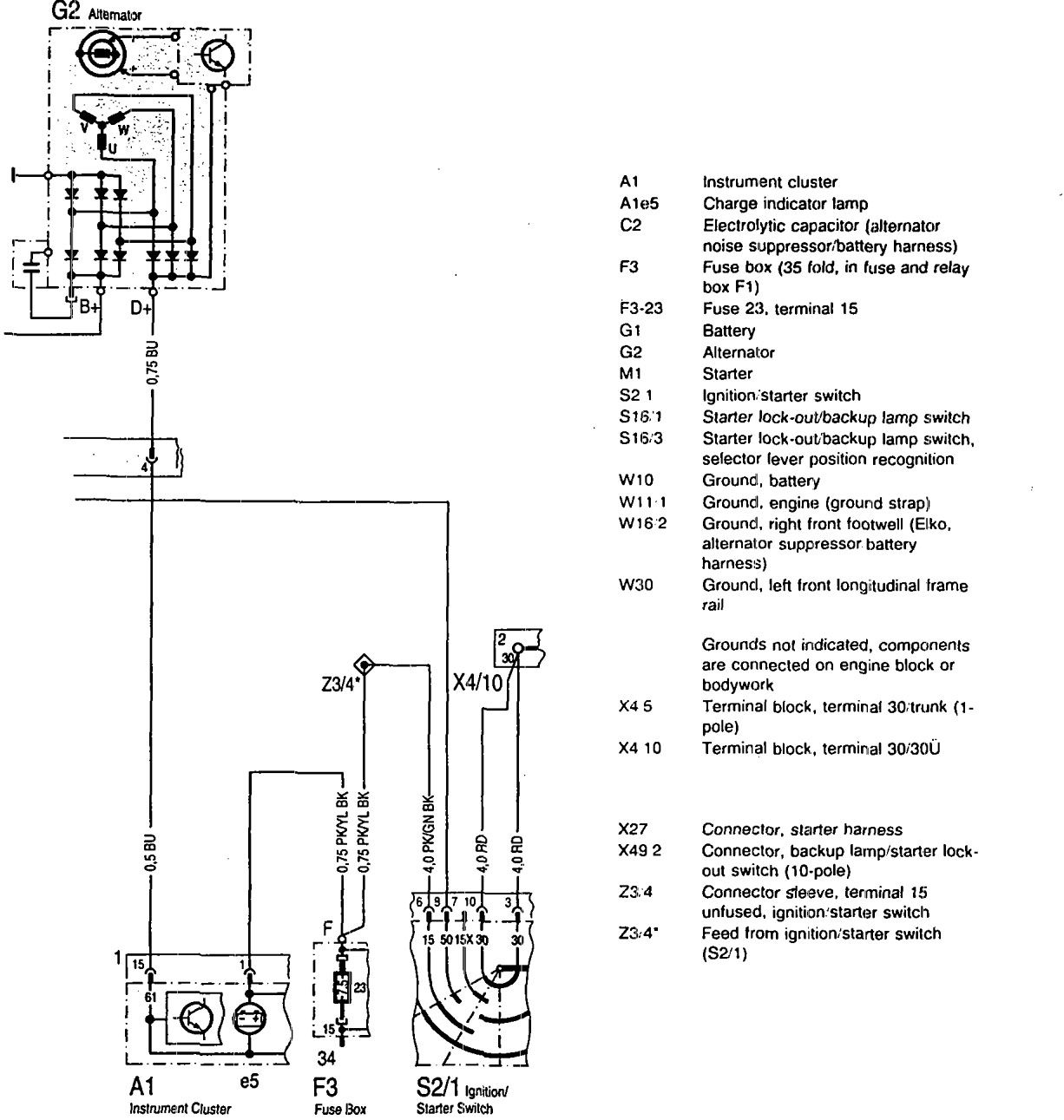

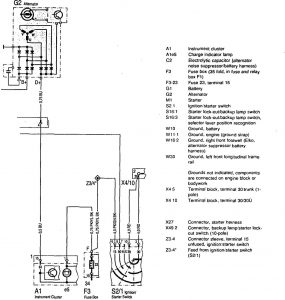

Mercedes-Benz 300SD - wiring diagram - battery (part 2)
Mercedes-Benz 300SD – wiring diagram – battery (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
