Mercedes-Benz 300SE (1992 – 1993) – wiring diagrams – fuel controls

Mercedes-Benz 300SE (1992 – 1993) – wiring diagrams – fuel controls

Year of productions:  1992, 1993

Fuel controls

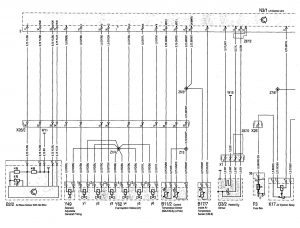

Mercedes-Benz 300SE - wiring diagram - fuel controls (part 1)
Mercedes-Benz 300SE – wiring diagram – fuel controls (part 1)

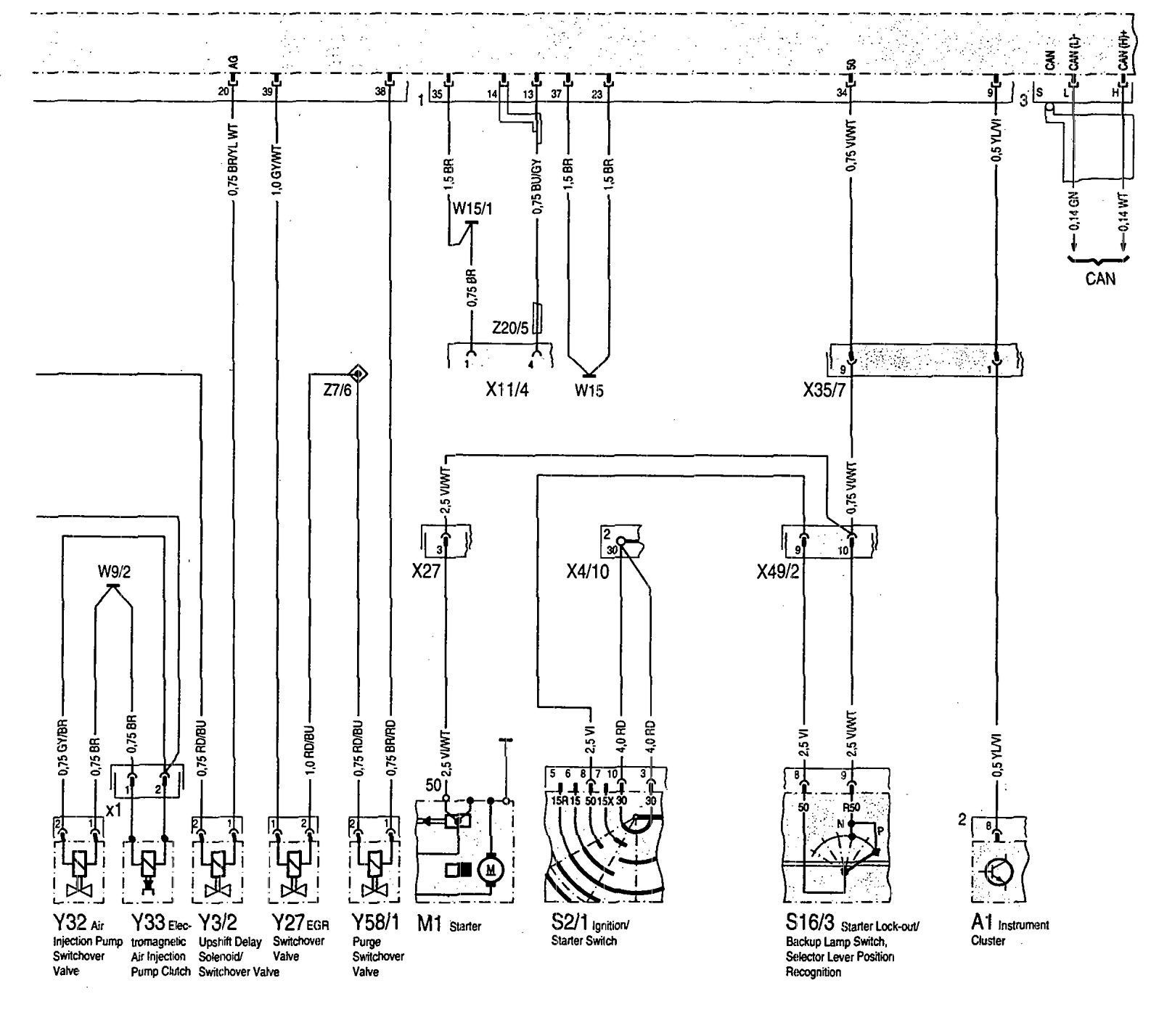

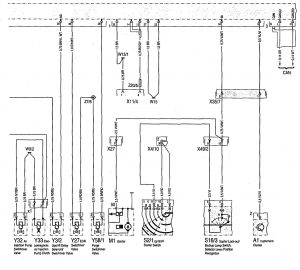

Mercedes-Benz 300SE - wiring diagram - fuel controls (part 2)
Mercedes-Benz 300SE – wiring diagram – fuel controls (part 2)

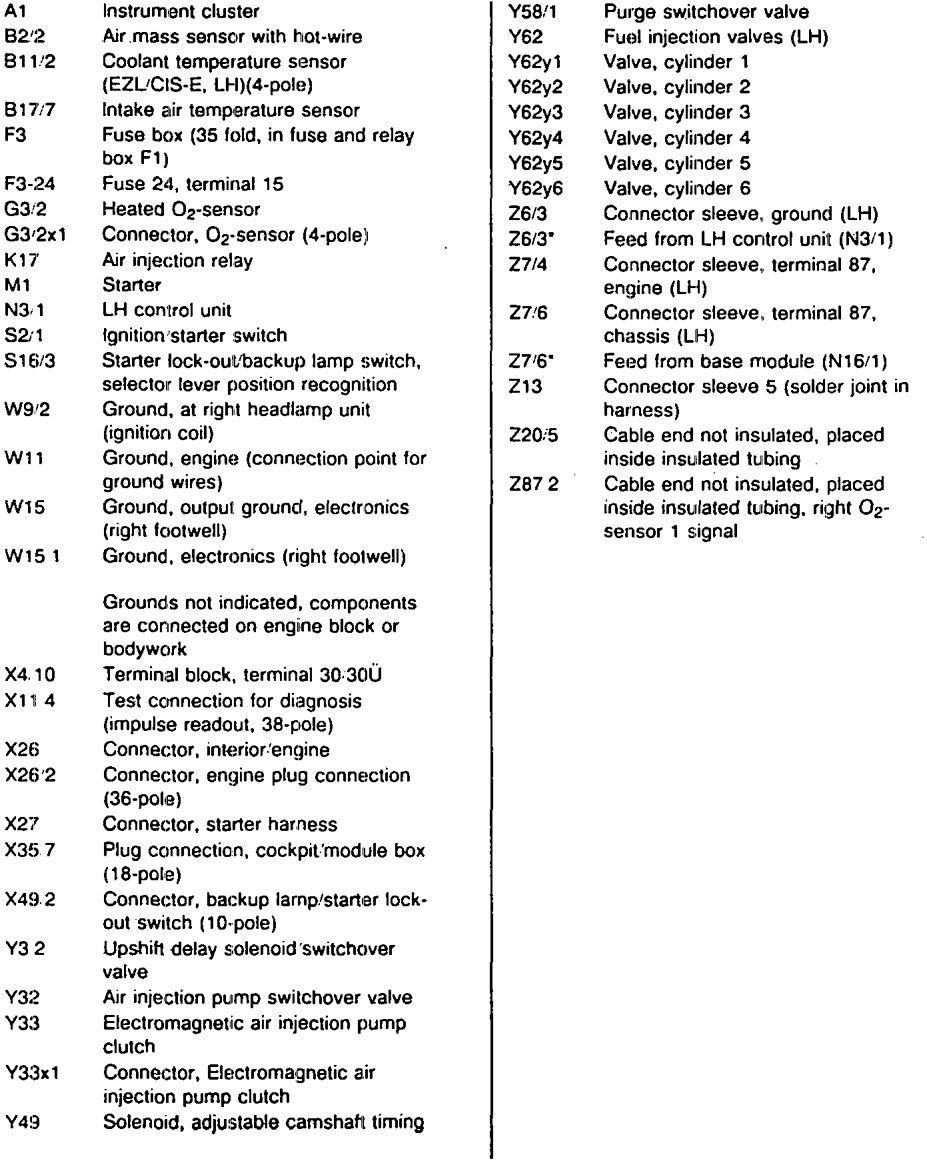

Mercedes-Benz 300SE - wiring diagram - fuel controls (part 3)
Mercedes-Benz 300SE – wiring diagram – fuel controls (part 3)

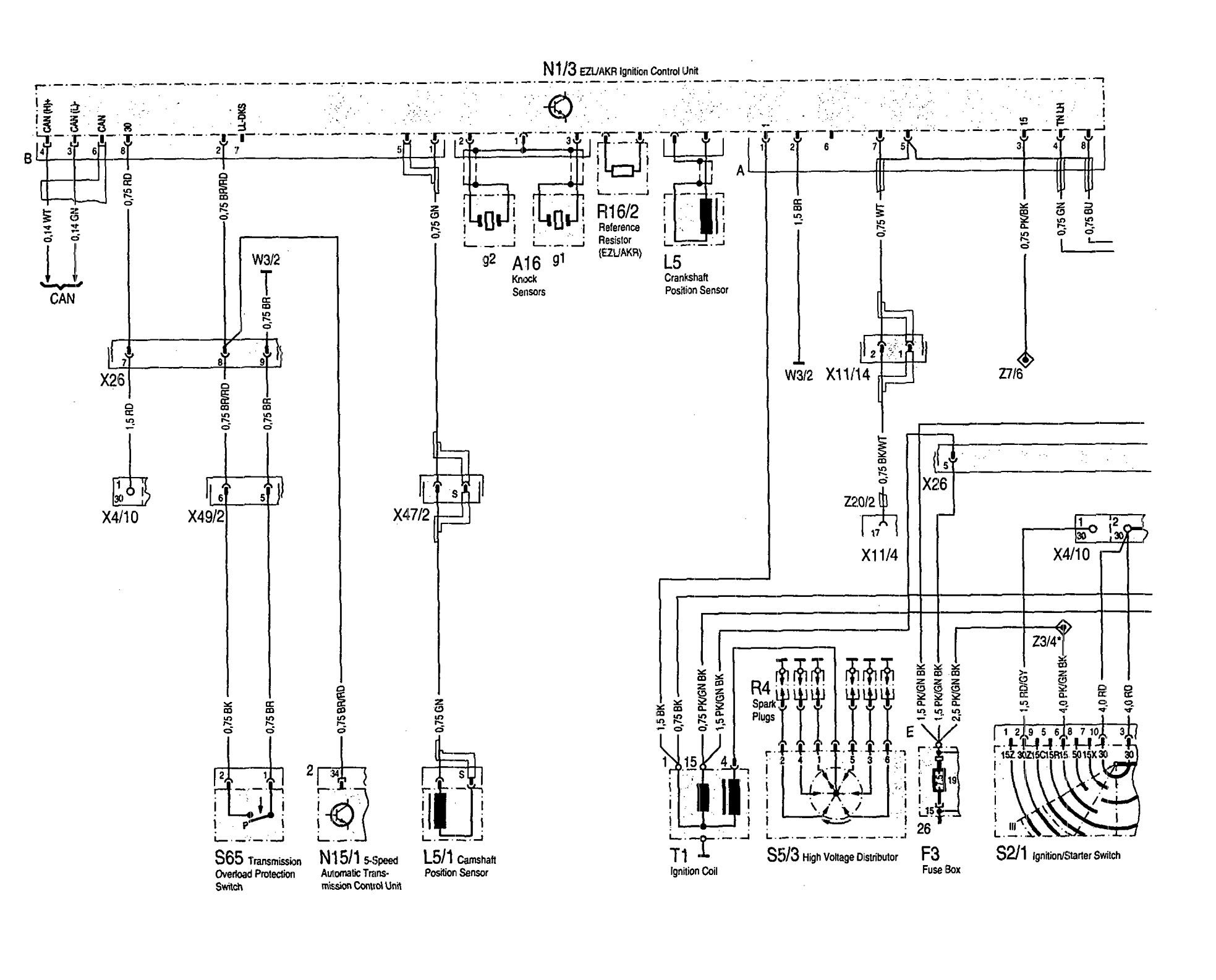

Mercedes-Benz 300SE - wiring diagram - fuel controls (part 4)
Mercedes-Benz 300SE – wiring diagram – fuel controls (part 4)

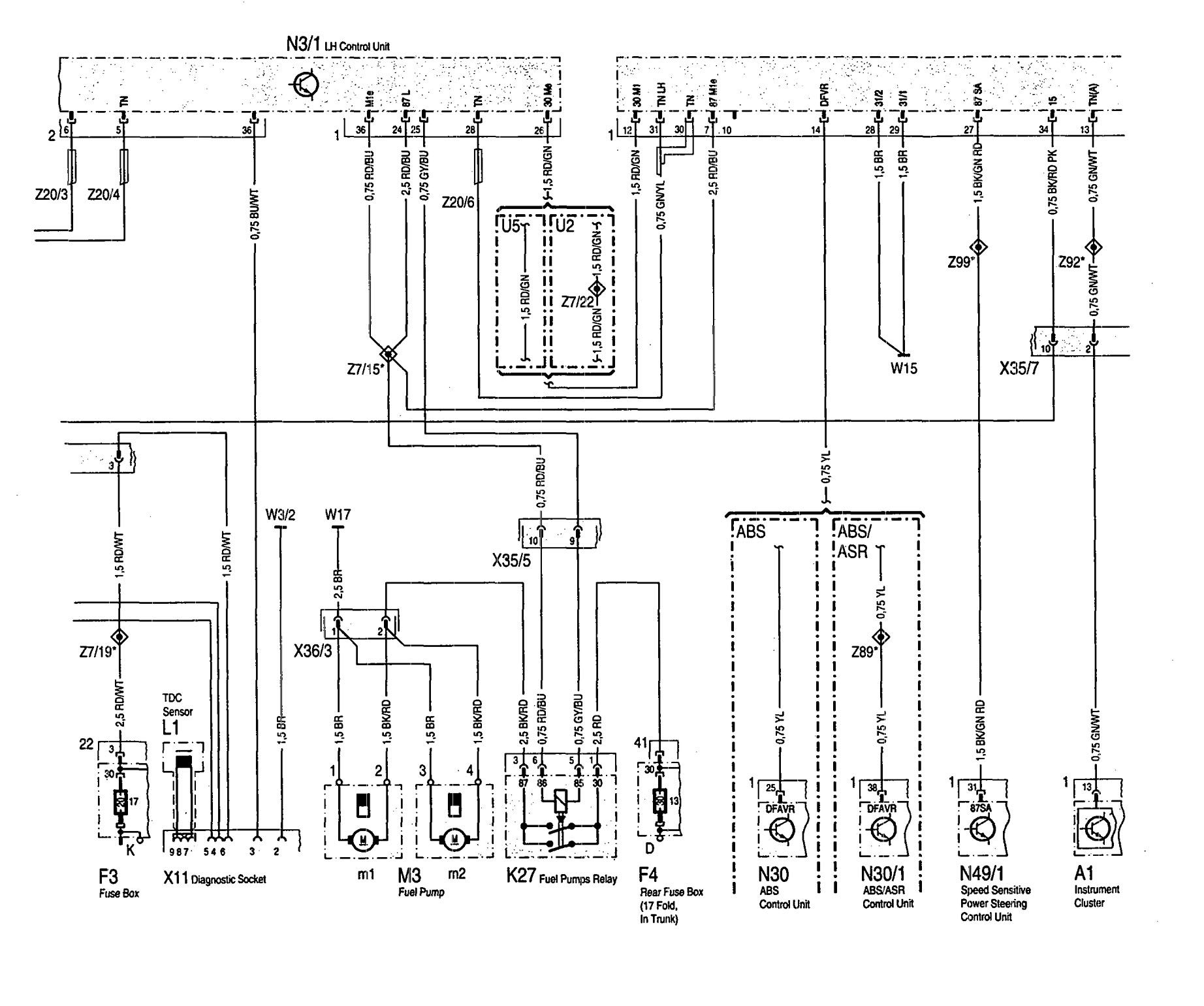

Mercedes-Benz 300SE - wiring diagram - fuel controls (part 5)
Mercedes-Benz 300SE – wiring diagram – fuel controls (part 5)

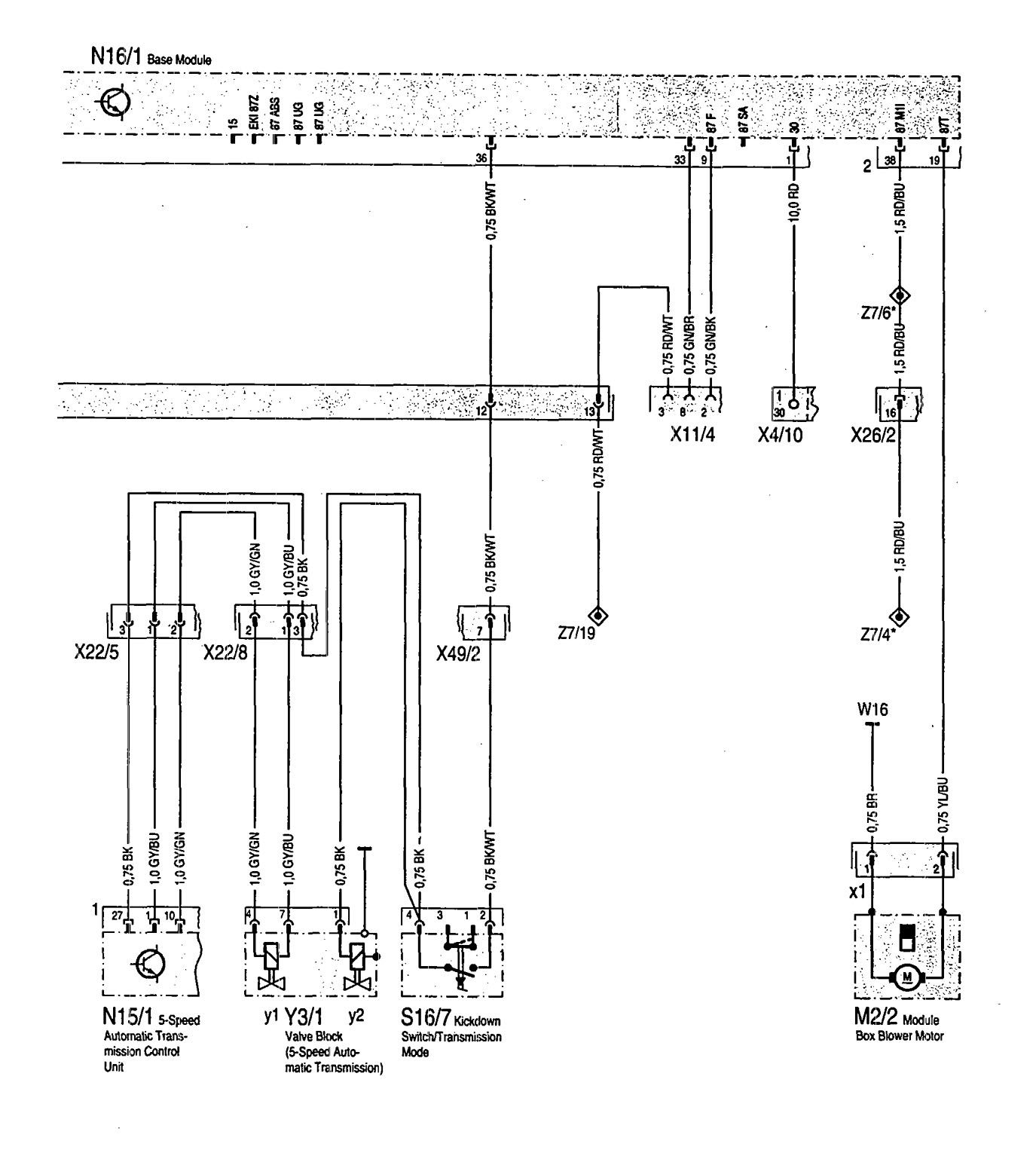

Mercedes-Benz 300SE - wiring diagram - fuel controls (part 6)
Mercedes-Benz 300SE – wiring diagram – fuel controls (part 6)

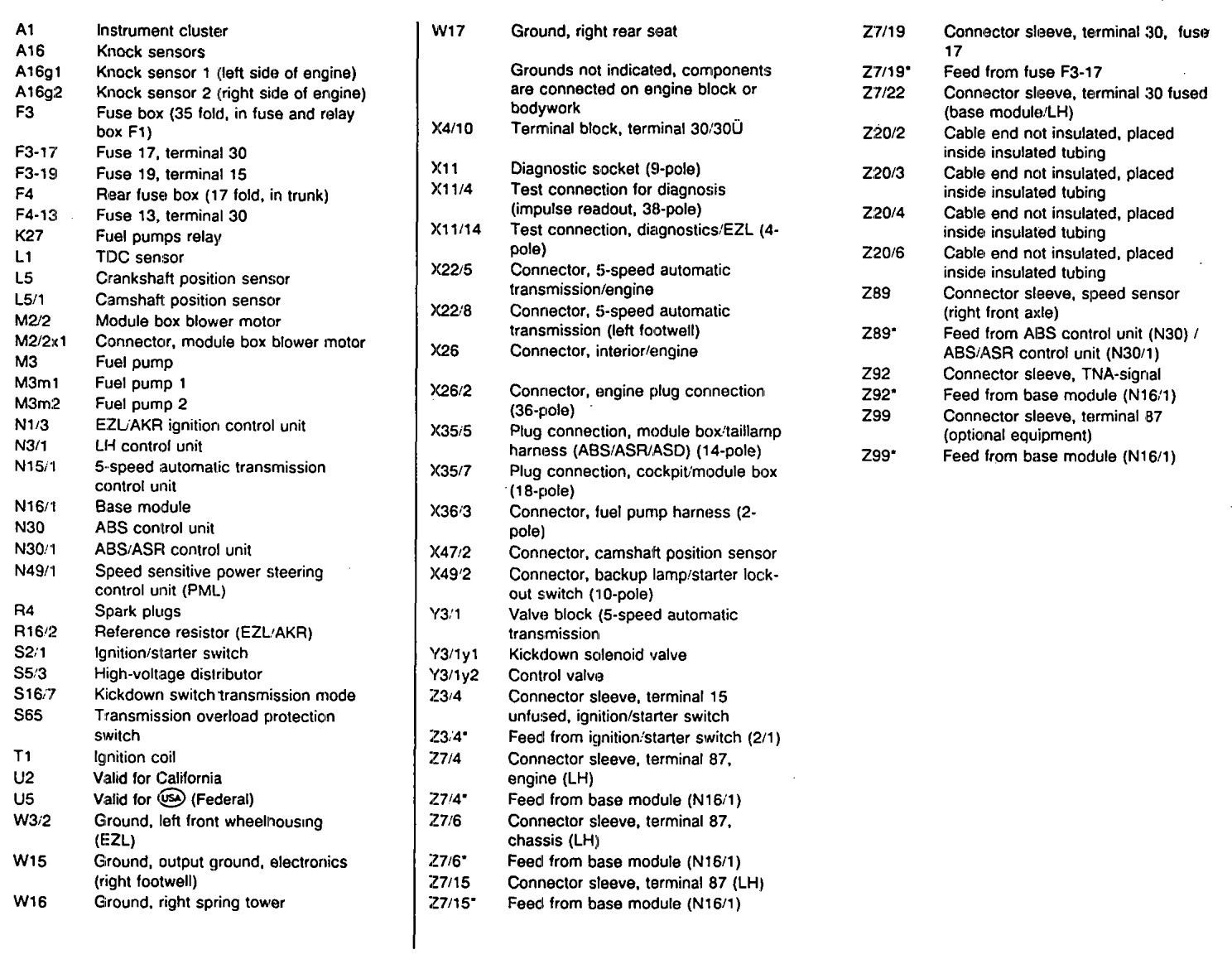

Mercedes-Benz 300SE - wiring diagram - fuel controls (part 7)
Mercedes-Benz 300SE – wiring diagram – fuel controls (part 7)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
