Mercedes-Benz 300SE (1992 – 1993) – wiring diagrams – heater

Mercedes-Benz 300SE (1992 – 1993) – wiring diagrams – heater

Year of productions:  1992, 1993

Heater

Version 1

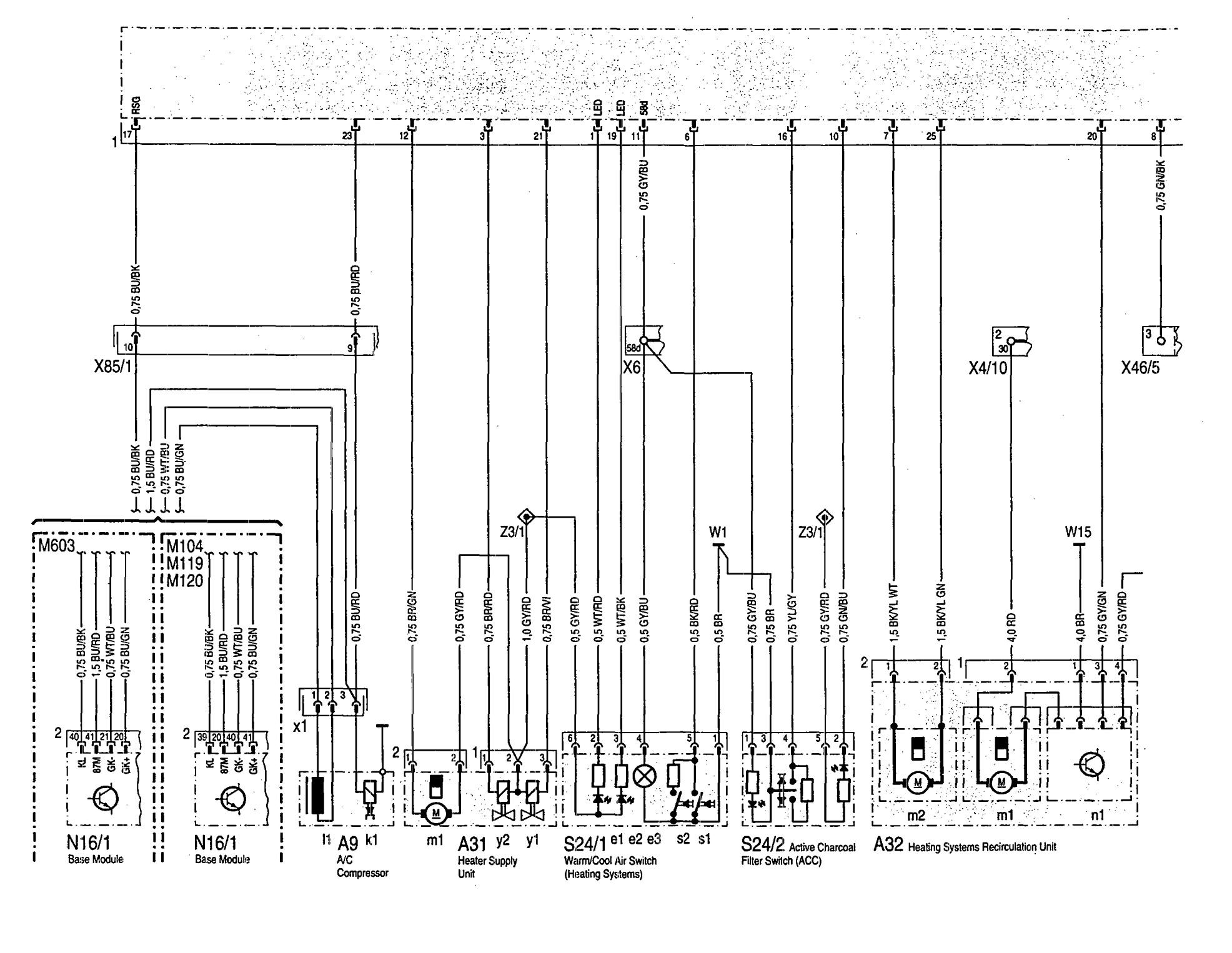

Mercedes-Benz 300SE - wiring diagram - heater (part 1)
Mercedes-Benz 300SE – wiring diagram – heater (part 1)

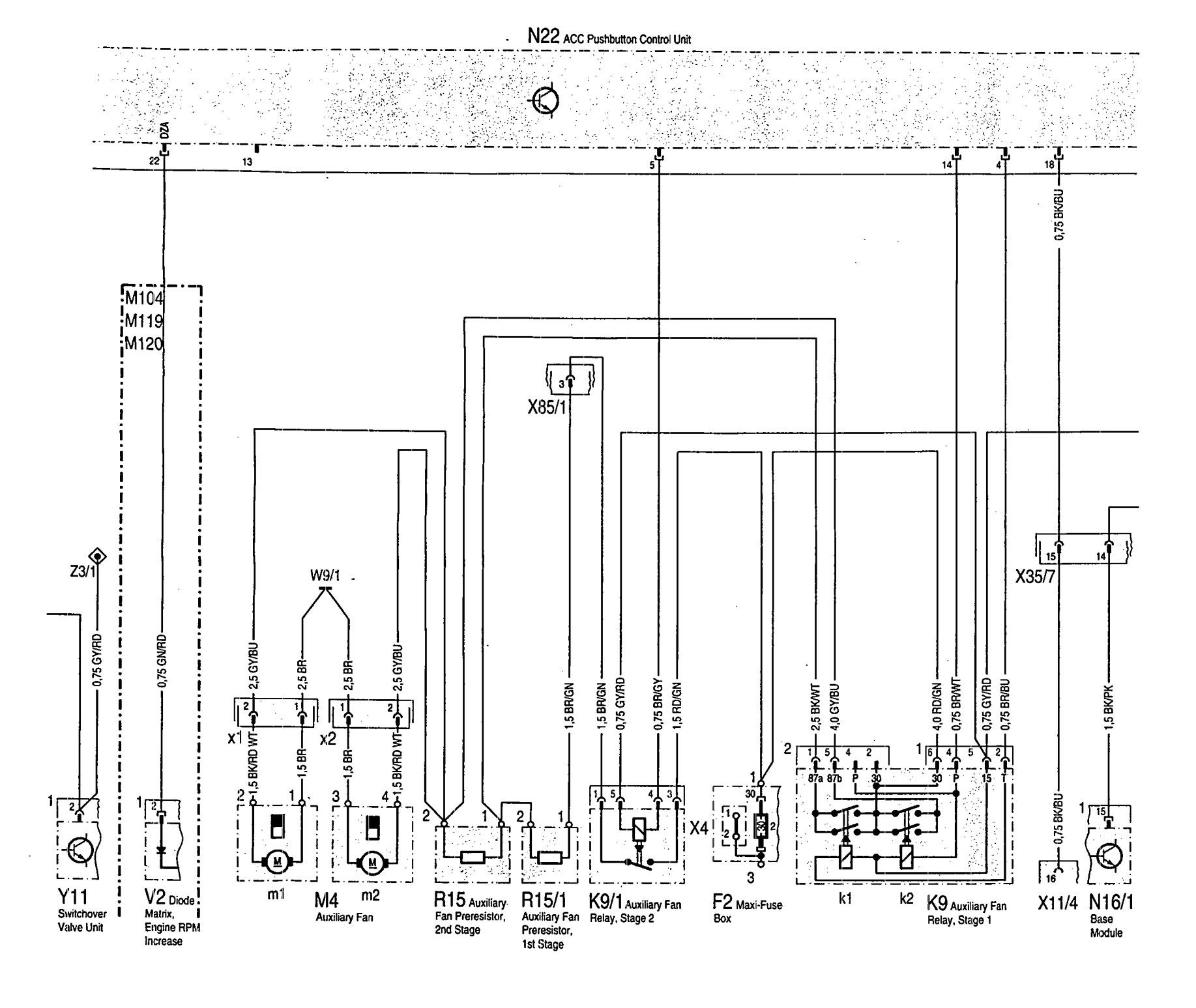

Mercedes-Benz 300SE - wiring diagram - heater (part 2)
Mercedes-Benz 300SE – wiring diagram – heater (part 2)

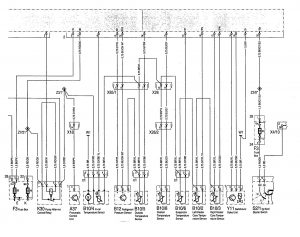

Mercedes-Benz 300SE - wiring diagram - heater (part 3)
Mercedes-Benz 300SE – wiring diagram – heater (part 3)

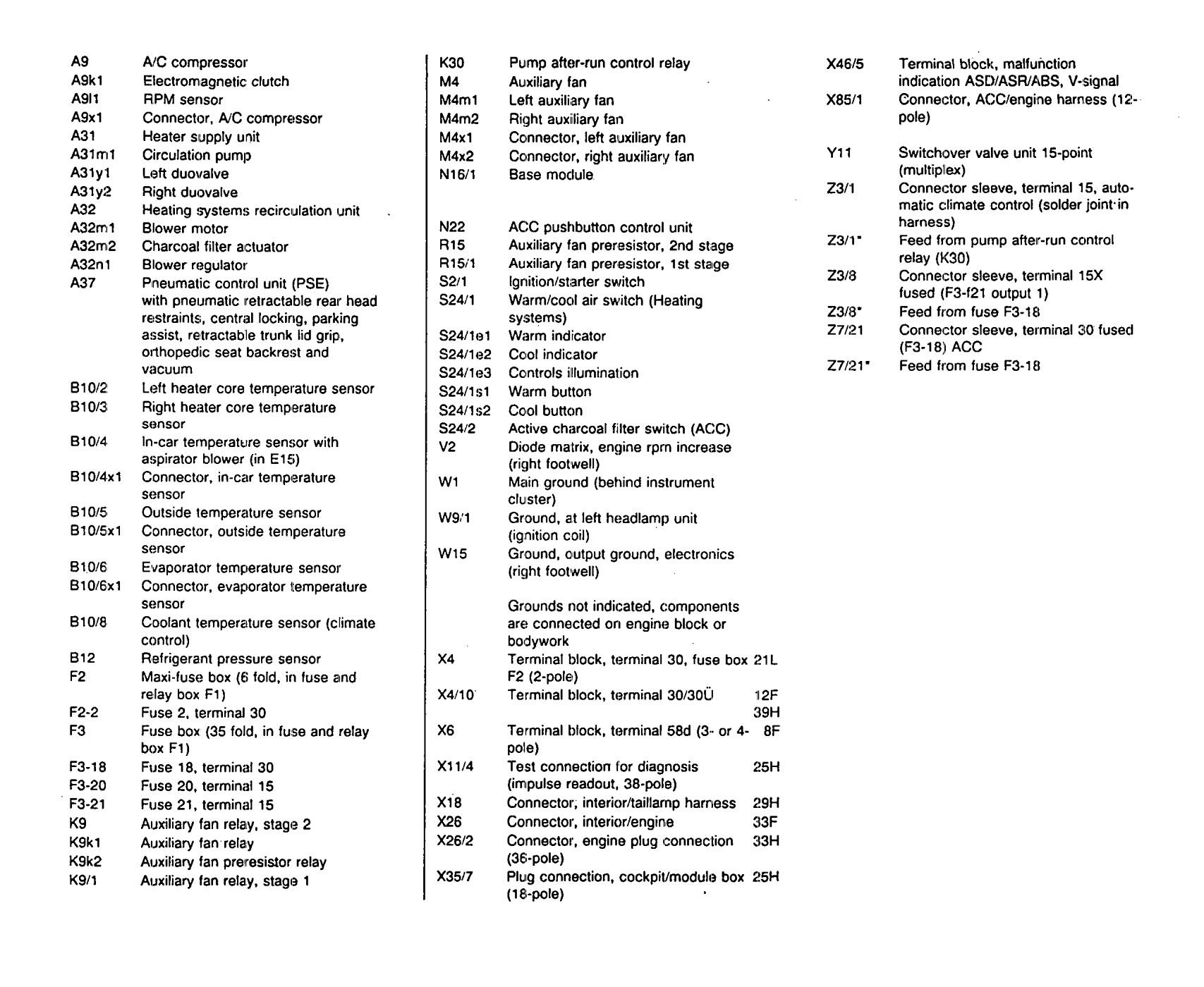

Mercedes-Benz 300SE - wiring diagram - heater (part 4)
Mercedes-Benz 300SE – wiring diagram – heater (part 4)

Version 2

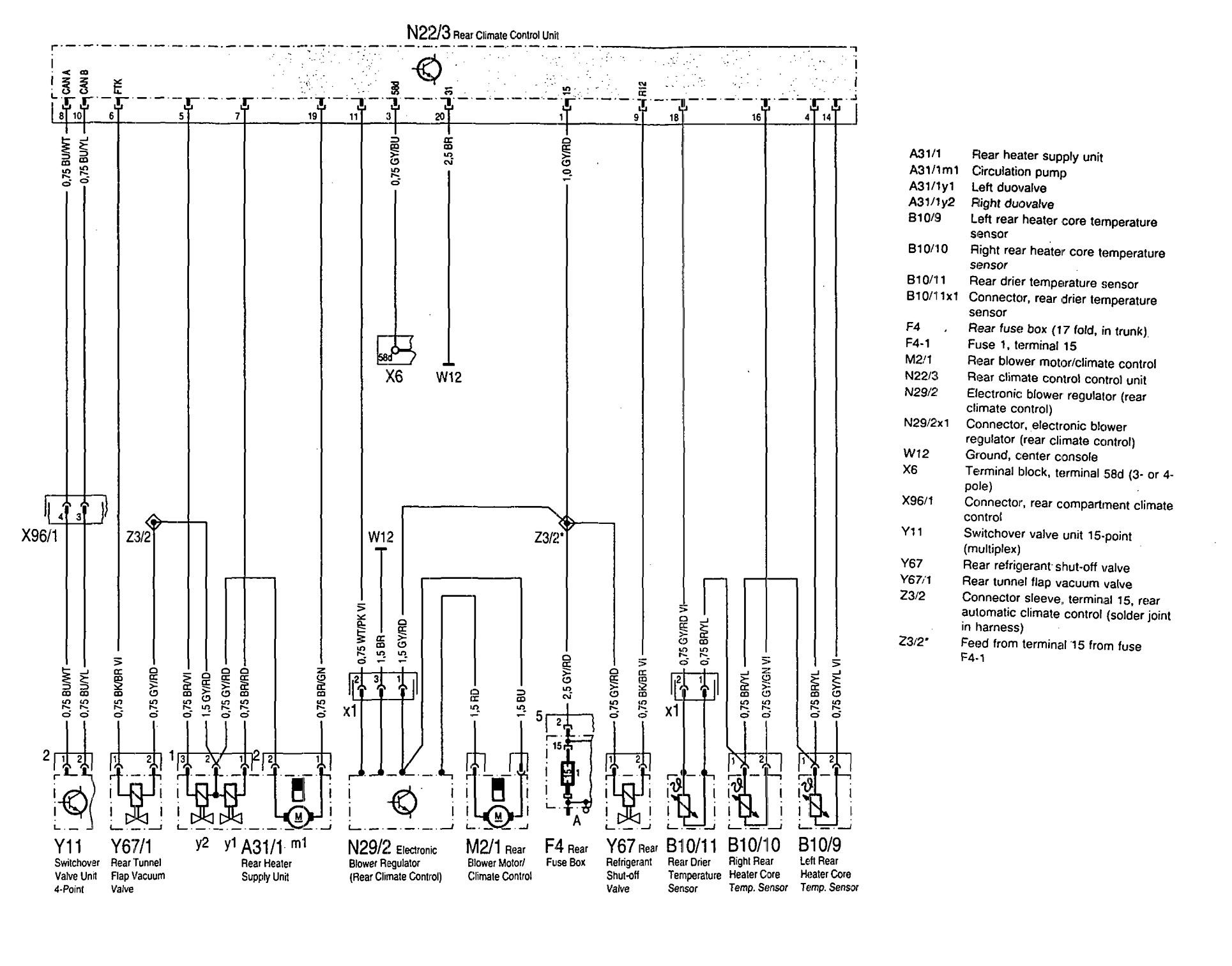

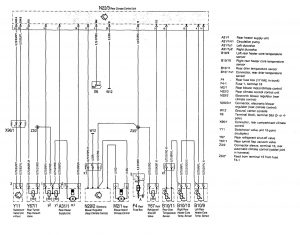

Mercedes-Benz 300SE - wiring diagram - heater
Mercedes-Benz 300SE – wiring diagram – heater

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
