Mercedes-Benz 500SL (1990 – 1993) – wiring diagrams – battery

Mercedes-Benz 500SL (1990 – 1993) – wiring diagrams – battery

Year of productions:  1990, 1991, 1992, 1993

Battery

Mercedes-Benz 300SL - wiring diagram - battery

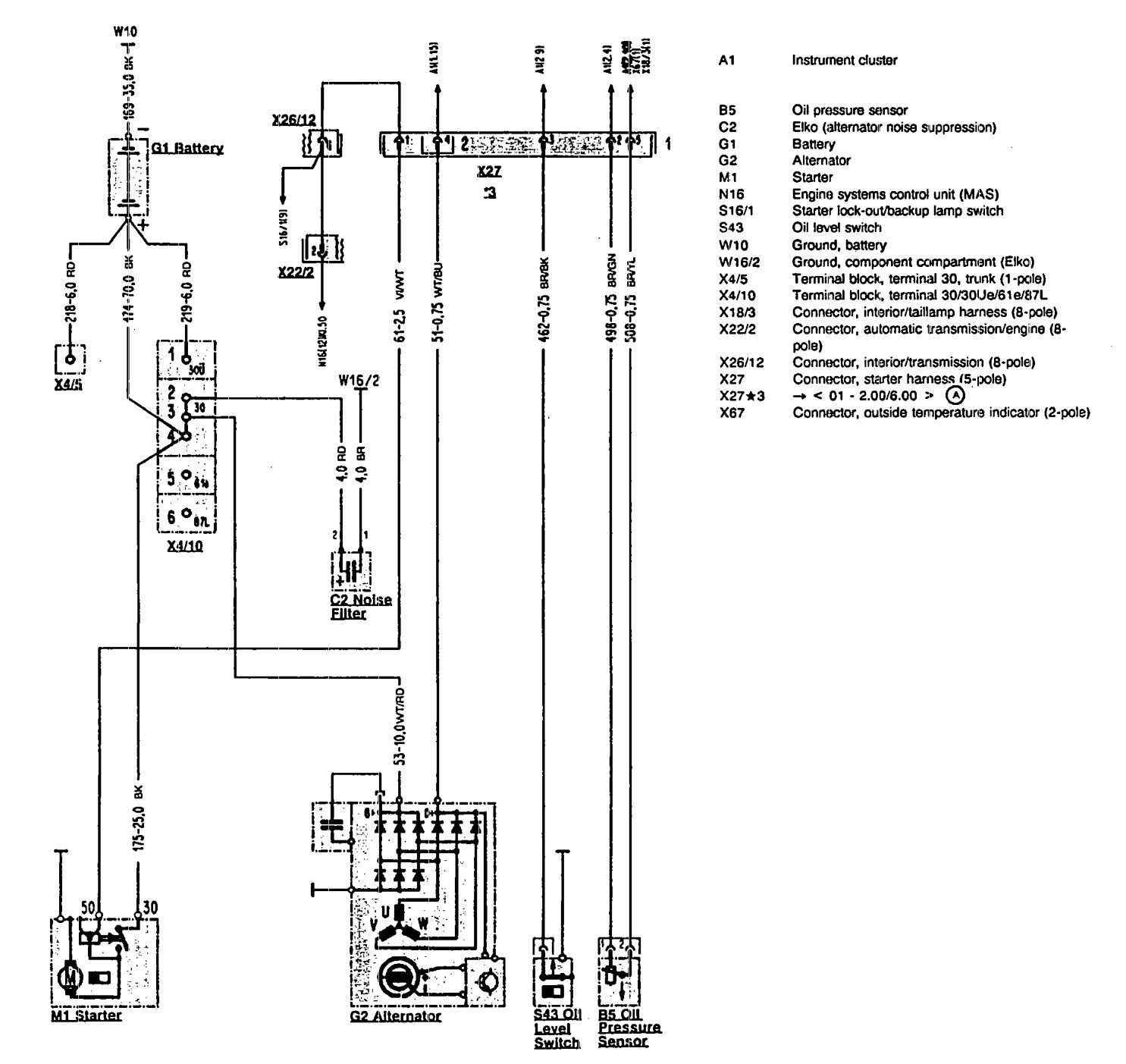

Mercedes-Benz 500SL – wiring diagram – battery

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
