Mercedes-Benz 500SL (1990 – 1993) – wiring diagrams – fuse panel
Year of productions: 1990, 1991, 1992, 1993

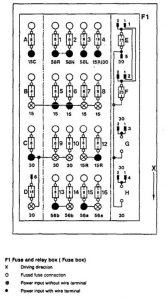

Fuse panel
| Fuse number | Circuit | Ampere rating [A] | Fuse connections |
| 1 | 56R | 8 | Right standing lamp, right taillamp lamp, side-marker lamps, light warning buzzer illumination, exterior lamp, switch, circuit 30, combi-instrument, switch illumination, circuit 56d, headlamp cleaning system, right taillamo, license plate |
| 2 | 58N | 8 | Exterior lamp switch, circuit NSE, fog lamp, rear fog lamp |
| 3 | 58L | 8 | Left standing lamp, left taillamp |
| 4 | 15R/30 | 16 | Seat adjustment, convenience feature limit switch, seat adjustment, mirror, telscopic steering column with memory, telescopic steering column engine 103, 104; external mirror adjustment |
| 5 | 15 | 8 | Stop lamp, Combi – instrument, front dome lamp circuit 15, external lamp failuire indicator lamo, ETR warning bluzzer, Soft top control unit, cruise control unit |
| 6 | 15 | 8 | Power soft top control unit, left safety package relay, backup lamp, turn signal hazard warning flasher relay, horn, outside temperature indicator |
| 7 | 15 | 8 | Heating ACC; ACC control unit, mono valve, coolant circulating pump, aspirator blower, circulating pump relay, ACC switch-over valve block, auxiliary fan realy circuit 86 |
| 8 | 15 | 8 | Central locking system control unit, right safety package relay, power heated mirrors, heated windshield washer nozzles, anti-theft alarm (ATA) system, infrared remote control, mirror and telescopic steering column memory, roil bar control unit |
| 9 | 30 | 8 | Diagnostic plug circuit 6, electronic clock, dome reading lamp unit, entrance exit lamps, combination relay, radio, vanity mirror |
| 10 | 30 | 8 | Residual engine heat utilization, blower, circulating pump, aspirator blower, switch-over valve block, ACC control unit, mono valve |
| 11 | 15R | 16 | Wiper motor, combination relay, windshield wiper control unit, washer pump, high beam flasher, headlamp cleaning system raly |
| 12 | 15R | 8 | Heated seats, cigarette lighter, heater rear window switch, glove box illumination, convenience relay circuit 86, storage compartment illumination |
| 13 | 56b | 8 | Left low beam |
| 14 | 56b | 8 | Right low beam |
| 15 | 56a | 8 | Left high beam |
| 16 | 56a | 8 | Right high beam, hifg beam indicator |
| A | 15C | 8 | Radio |
| B | 15 | 8 | Engine systems control unit (MAS), air pum electromagnetic clutch, blower motor component compartment, heated O2 sensor, A/C compressor clutch, automatic transmission switch-over valve, kickdown switch |
| C | 30 | 8 | Sound system, entrance exit lamps |
| D | 30 | 16 | Left and right seat heaters |
| E | 30 | 25 | Driver power seat mirrors, rear hight, backrest, head restraint, front passenger power seat motors, front hogh, backrest, head restraint |
| F | 30 | 25 | Driver power seat motors; front hight, fore-alt, backrest (memory), front passenger power seat motors; front hight, fore-alt |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
