Mercedes-Benz Citan (w415) – fuse box diagram

7 August 2019 admin Citan, Mercedes-Benz 0

Mercedes-Benz Citan (w415) – fuse box diagram

Year of production:

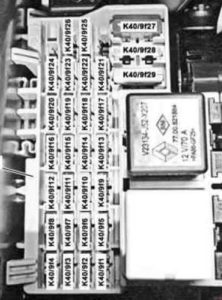

Left vehicle interior fuse box

Mercedes-Benz Citan (w415) - fuse box diagram - left vehicle interior fuse box
Mercedes-Benz Citan (w415) – fuse box diagram – left vehicle interior fuse box
Number Fused function Ampers
K40/9f1 Trailer hitch 10
K40/9f2 Sockets for front accessories, cigarette lighter 10
K40/9f3 Seat heater relay, brake lights relay, ESP, body manufacturer supply relay, heater/ ventilation operating unit, display, radio 15
K40/9f4 Sockets for rear accessories 10
K40/9f5 Instrument panel 5
K40/9f6 Door locking system 30
K40/9f7 Warning lamps, rear fog lamps 10
K40/9f8 Mirror heater 10
K40/9f9 Body manufacturer supply power relay 10
K40/9f10 Radio, display 15
K40/9f11 Brake lights switch, electrical outside mirror relay, tire pressure monitoring, ESP, Run Flat Indicator (wireless), rain/light sensor, body manufacturer supply, A/C system relay, power steering relay, interior illumination 10
K40/9f12 Ignition lock 5
K40/9f13 Dome lamp (up to 05/14) 5
K40/9f14 Power window child safety lock, front power window relay, rear power window relay 5
K40/9f15 ESP 10
K40/9f16 Brake lamp 10
K40/9f17 Windshield/rear window washer system pump 20
K40/9f18 Transponder 5
K40/9f19 Rear power window lifter 30
K40/9f20 Seat heater, body manufacturer supply 15
K40/9f21 Horn, diagnostic connector 15
K40/9f22 Rear window washer system 15
K40/9f23 Heater blower (Semi-automatically controlled air conditioning, TEMPMATIC) 20
Heater blower (A/C system) 30
K40/9f24 Climate control blower 20
K40/9f25 Spare —
K40/9f26 Spare —
K40/9f27 Front power window lifter 40
K40/9f28 Electric outside mirror, reversing camera display 5
K40/9f29 Rear window heater 30

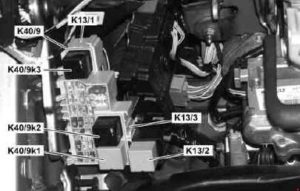

Mercedes-Benz Citan (w415) - fuse box diagram - left vehicle interior fuse box
Mercedes-Benz Citan (w415) – fuse box diagram – left vehicle interior fuse box
Number Relay
K13/1 Heated rear window relay
K13/2 Front power window switch relay
K13/3 Rear power window switch relay
K40/9k1 Auxiliary heater relay 1
K40/9k2 Auxiliary heater relay 2
K40/9k3 Circuit 15R relay

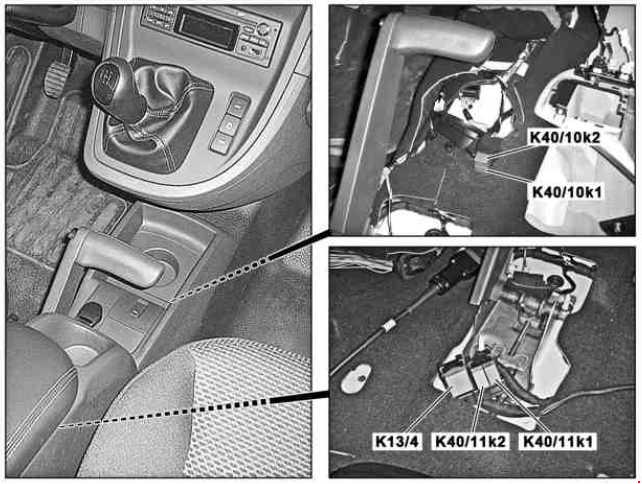

Vehicle interior relay

Mercedes-Benz Citan - (w415) - fuse box diagram - vehicle interior relay
Mercedes-Benz Citan – (w415) – fuse box diagram – vehicle interior relay
Number Relay
K13/4 Anti-pinch protection relay
K40/10k1 Circuit 61 relay
K40/10k2 Circuit 15R relay
K40/11k1 Seat power supply relay
K40/11k1 Stop lamp relay

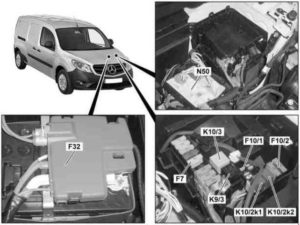

Engine compartment fuse box

Mercedes-Benz Citan - (w415) - fuse box diagram - engine-compartment
Mercedes-Benz Citan – (w415) – fuse box diagram – engine-compartment
Number Description
F7 Fuse block, 9-pin
F10/1 Fuse block 1, engine compartment
F10/2 Fuse block 2, engine compartment
F32 Front electrical prefuse box
N50 Fuse and relay module control unit (SRM)



Number Relay
K9/3 Electric fan motor relay, stage 2
K10/2k1 Fuel pump relay
K10/2k2 Fuel preheating/backup lamp relay
K10/3 Engine control unit relay (up to 05/14)

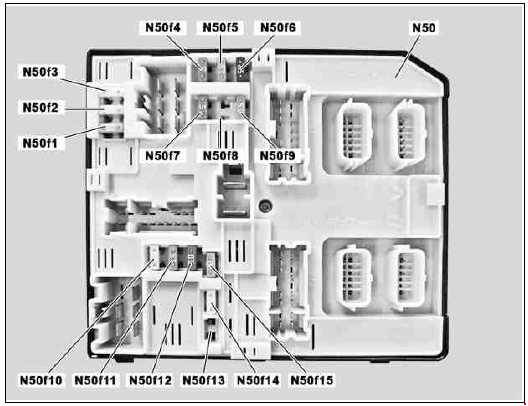

Fuse and relay module control unit (SRM)

Mercedes-Benz Citan - (w415) - fuse box diagram - fuse and relay module control unit (SRM)
Mercedes-Benz Citan – (w415) – fuse box diagram – fuse and relay module control unit (SRM)
Number Relay Ampers
N50f1 Windshield wiper 30
N50f2 ESP 25
N50f3 Spare —
N50f4 Electric power steering 5
N50f5 Circuit 15 relay 15
N50f6 Airbag, emergency tensioning retractor 7,5
N50f7 Spare —
N50f8 Spare —
N50f9 Climate control 15
N50f10 Engine functions relay, circuit 87 25
N50f11 Engine functions relay, circuit 87 15
N50f12 Engine functions relay, circuit 87 10
N50f13 CDI control unit (circuit 15), ME-SFI [ME] control unit (circuit 15) 5
N50f14 Spare —
N50f15 Starter 30

Fuse box in the engine compartment

Mercedes-Benz Citan - (w415) - fuse box diagram - engine-compartment
Mercedes-Benz Citan – (w415) – fuse box diagram – engine-compartment
Number Relay Ampers
F7f1 Valid for engine 607 Heater module for coolant preheating 60
F7f2 Valid for engine 607 Heater module for coolant preheating 60
F7f3 Valid for engine 607 Glow output stage, dual-clutch transmission 60
F7f4 Spare —
F7f5 Circuit 30 supply fuse Body manufacturer supply power relay, radio, display, horn, diagnostic connector, brake lights switch, electric outside mirror relay, tire pressure monitoring, ESP, Run Flat Indicator (wireless), rain/light sensor, body manufacturer supply, A/C system relay, power steering relay, interior illumination 70
F7f6 ESP 50
F7f7 Valid for engine 607 Auxiliary heater relay 1 40
F7f8 Circuit 30 supply fuse Rear window heater relay, trailer hitch, vehicle interior fuse and relay module 2 prefuse, front power window switch relay (up to 05/14), left front door power window motor relay (as from 06/14) 70
F7f9 Valid for engine 607 Auxiliary heater relay 2 70
Fuse block 1
F10/1f1 Fuse and relay module (SRM) 5
F10/1f2 Battery sensor 5
F10/1f3 Heating element relay for fuel preheating 25
F10/1f4 Fuel pump supply relay 20
F10/1f5 Valid up to 05/14:CDI control unit (circuit 87), ME-SFI [ME] control unit (circuit 87), fuel pump relay (engine 607) 15
F10/1f6 F15uel filter condensation sensor (engine 607 up to 05/14)
Valid as of 06/14:CDI control unit (circuit 87), ME-SFI [ME] control unit (circuit 87), fuel pump relay (engine 607
F10/1f7 Spare —
F10/1f8 Spare —
Fuse block 2
F10/2f1 Fuse and relay module (SRM) control unit supply 60
F10/2f2 Fuse and relay module (SRM) control unit supply 60

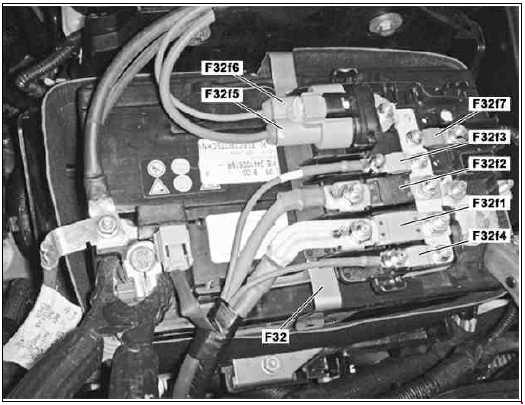

Front electrical prefuse box

Mercedes-Benz Citan (w415) - fuse box diagram - front electrical prefuse box
Mercedes-Benz Citan (w415) – fuse box diagram – front electrical prefuse box
Number Relay Ampers
F32f1 Engine compartment 2 fuse block 250
F32f2 Starter 500
F32f3 Engine compartment 1 fuse block supply, engine control unit relay (K10/3, bis 05/14), engine functions relay (N50k8, as of 06/14) 40
F32f4 Internal combustion engine fan motor relay (N50k3) 40
F32f5 Electric power steering 40
F32f6 Fuse and relay module supply 40
F32f7 E30ngine compartment 1 fuse block supply
