Mercedes-Benz CL-Class c215 (2000 – 2006) – fuse box diagram
Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006
Location of fuses
| Fuses and relays | Location |

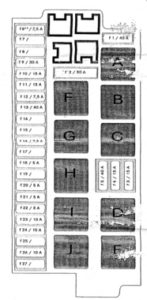

| Fuses 1 – 27 | Engine compartment – left side/driver side |
| Relays A.B,C,D,E,F,G,H,I,J | |

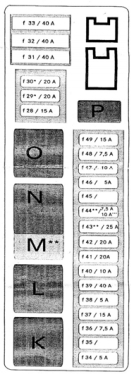

| Fuses 28 – 49 | Engine compartment – right side/passenger side |
| Reyals K,L,M,N,O | |

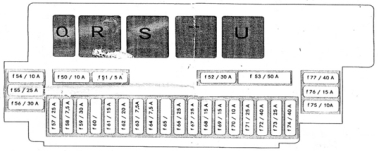

| Fuses 50 – 77 | Under the rear seat on the passenger side |
| Relays Q,R,S,T,U | |
| Fuses 78 – 86 | On the left side of dashboard |
Fuses and relays
| Fuse number | System |
| F9,F46 | ABC suspension |
| F13,F80 | Adjustable mirror, left |
| F39,F80 | Adjustable mirror, right |
| F3,F4,F78 | Adjustable sterring column |
| F9,F32,F46 | Air suspension |
| F32 | Air suspension compressor |
| F60 | Antenna booster |
| F51,F78,F80 | Anti-thef alarm system |
| F33,F47,F82 | Automatic temperature control |
| F13,F39 | Automatic dimming exterior mirror |
| F77 | Automatic dimming interior mirror |
| F33 | Blower motor AC |
| F24 | Car audio system |
| F23 | CD changer |
| F83 | Centrol control unit |
| F62 | Central locking |
| F86 | Cigar lighter, front |
| F72,F74 | Cigar lighter, rear, left/right |
| F76 | Cool box |
| F78 | Cruise control |
| F81,F84 | Diagnostic socket |
| Electronic fuse | Dipped beam headlamp, left/right |
| F36,F80 | Distronic |
| F77 | Dome lamp |
| F13,F64 | Driver seat adjustment |
| F13,F64 | Driver seat heating |
| F64 | Driver seat ventilation |
| F11,F60 | Electronic Troll Collection |
| F30,F44,F87 | Engine fan |
| F29,F30, older F43, F44, older F87, F88 | ENGINE EMERGENCY STOP |
| F29,F30,F43,F44,F78,F87,F88 | Engine managment unit |
| F13,F39,F72,F74 | Entrance light |
| F2,F34,F80 | ESP |
| F13,F39 | Exterior mirror indicators left/right |
| F28 | Fanfare Horn |
| Electronic fuse | Fog lamp, front left/fight |
| F13,F39 | Folding exterior mirror |
| F39,F66 | Front passenger seat heating |
| F66 | Front passenger seat ventilation |
| Electronic fuse | Front side light, left/right |
| F52,F91 | Fuel pump |
| F77 | Garage door remote control |
| Electronic fuse | Headlamp cleaning system |
| F40 | Headlamp range adjustment |
| F13,F39 | Heated mirror |
| F41,F80 | Heated booster |
| F49 | Ignition coil |
| F78 | Ignition lock |
| F79,F84,F85 | Instrument cluster |
| F63 | Interactive seat |
| F13,F77 | Interior mirror adjuster |
| F77 | Interior motion sensor |
| F58 | Keyless go |
| Electronic fuse | Main beam headlamp, left/right |
| F77 | Make-up mirror |
| F22 | Navigation system |
| F75,F80 | Parktronic system |
| F39,F66 | Passenger seat adjustment |
| F13,F39,F62,F72,F74 | Power locking |
| F13 | Power window, drivers seat |
| F13,F39 | Power window, passenger seat |
| F13,F72 | Power window, rear left |
| F13,F74 | Power window, rear right |
| F77 | Rain/Driving light sensor |
| F77 | Reading lamp |
| F68,F69 | Rear air conditionig |
| Electronic fuse | Rear fog lamp |
| F62,F80 | Rear head release |
| F62,F72,F74,F80 | Rear head restraint adjustment |
| F67,F72,F74 | Rear seat adjustment |
| F67,F72,F74 | Rear seat heating |
| F67 | Rear seat ventilation |
| Electronic fuse | Rear side lamp, left/right |
| F50,F80 | Rear window blind |
| F53,F82 | Rear window defroster |
| Electronic fuse | Registration plate lighting |
| F13,F53,F62 | Remote closing and locking trunk lid |
| F13,F62 | Remote trunk lid release |
| Electronic fuse | Reversing lamp |
| F19,F71,F73 | Seatbelt pre-tensioner |
| F64,F66 | Seatbelt comfort fit system |
| F17 | Seatbelt locking system |
| F77 | Sliding/tilting sunroof |
| F25 | Sound system |
| F16 | Stop signal switch |
| F59 | Taxi |
| F18,F61 | Telephone system/emergency call |
| F70 | Tire pressure monitoring system |
| F54,F55,F56 | Trailer coupling |
| F55 | Trailer power supply |
| F37 | Transmission control |
| F38,F62 | Trunk interior nonlocking switch |
| Electronic fuse | Trunk light |
| Electronic fuse | Turn indicators |
| F23 | TV/Rear TV |
| F61 | Voice control system |
| F5,F78 | Windscreen wipers |
| F10 | Windshield washer system |
| F1 | Wiper recess heating |
| Electronic fuse | Front side (marker) light left/right |
| Glove compartment light | |
| Hazard (flasher) warning system | |
| Headlamp cealing system | |
| (High) main beam lamp left/right | |
| (Low) dimmed beam light | |
| Front fog lamp – left/right | |
| Rear fog lamp | |
| Rear side (marker) light left/right | |
| Registration plate lighting | |
| Reversing lamp back-up light) | |
| Tail lights left/right | |
| Parking lights left/right | |
| Turn signal flasher lights | |
| Trunk light | |
| Turn indicators |
Relays
| Relay | Description |
| A | Wiper heating and position |
| B | Binding post 15 |
| C | Binding post |
| D | Steering column jacket horizontal 1 |
| E | Steering column jacket horizontal 2 |
| F | Recirculating pump |
| G | Wiper speed 1/2 |
| H | Wiper ON/OFF, Steering column jacket vertical 1 |
| J | Steering column jacket vertical 2 |
| K | Motronic/Chassis |
| L | Choke |
| M | Disel control system |
| N | Secondary air pump |
| O | Air suspension |
| P | Horn |
| Q | Rear bind |
| R | Tow-away protection EWD S Binding post 15 |
| T | Fuel pump |
| U | Rear window heater |
| V | Motronic |
| W | Coolant pump charge air |
| X | Fuel pump AMG |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
