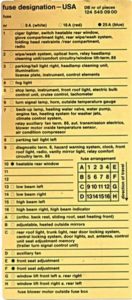

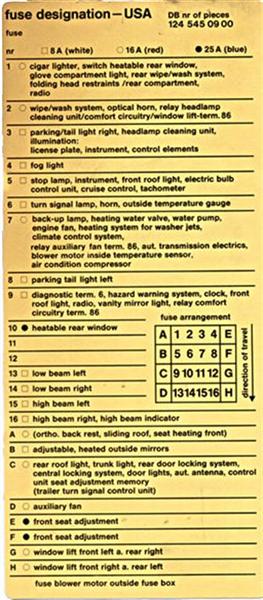

Mercedes-Benz E Class w124 – E300 Turbodiesel – fuse box diagram (124 545 09 00)
USA version – w124.193
Fuse chart application: w124_026, w124_030, w124_090, w124_133, w124_193
Fuse | Ampere rating [A] | Colour | Circuits protected |
1 | 16 | red | Cigar lighter, switch heatable rear window, glove compartment light, rear wiper/wash system, folding head restraints/rear compartment, radio |
2 | 16 | red | Wiper/wash system, optical horn, relay headlamp, cleaning unit/comfort circuity window lift term. 86 |
3 | 8 | white | Parking/tail light right, headlamp cleaning unit, illumination: license plate, instrument, control elements |
4 | 8 | white | Fog light |
5 | 8 | white | Stop lamp, instrument, front roof light, electric bulb control unit, cruise control, tachometer |
6 | 8 | white | Turn signal lamp, horn (outside temperature gauge) |
7 | 16 | red | Back-up lamp, heating water valves, water pump, engine fan, heating system for washer jets, climate control system, relay auxiliary fan term. 86, aut transmission electrics, blower motor inside temperature sensor, air condition compressor |
8 | 8 | white | Parking tail light left |
9 | 8 | white | Diagnostic term. 6, hazard warning system, clock, front roof light (electronic radio, vanity mirror light, relay comfort circuitry term. 86 |
10 | 25 | blue | Heatable rear window |
11 | — | — | — |
12 | — | — | — |
13 | 8 | white | Low beam left |
14 | 8 | white | Low beam right |
15 | 8 | white | High beam left |
16 | 8 | white | High beam right, high beam indicator |
A | 16 | red | Ortho. back rest, sliding roof, seat heating front |
B | 8 | white | Adjustable, heated outside mirrors |
C | 16 | red | Rear roof light, trunk light, rear door locking system, central locking system, door lights, aut. antenna, control unit seat adjustment memory (trailer turn signal control unit) |
D | 16 | red | Auxiliary fan |
E | 25 | blue | Front seat adjustment |
F | 25 | blue | Front seat adjustment |
G | 16 | red | Window lift front left a. rear right |
H | 16 | red | Window lift front right a. rear left |
Fuse blowe motor outside fuse box |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
