Mercedes-Benz E-Class w210 – E320 (1999) – fuse box diagram

8 August 2019 admin E-Class, Mercedes-Benz 0

Mercedes-Benz E-Class w210 – E320 (1999) – fuse box diagram

Year of production: 1999

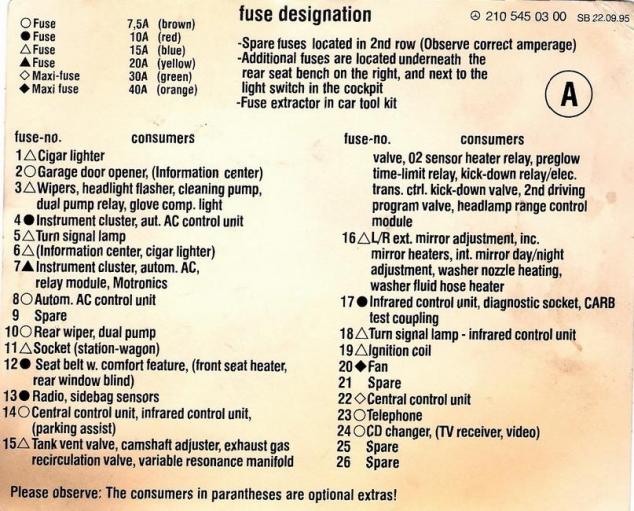

Fuse box in engine compartment (210 545 03 00)

Fuse Ampere rating [A] Colour Function
1 15 blue Cigar lighter
2 7,5 brown Garage door opener, (information center)
3 15 blue Wipers, headlight flasher, cleaning pump, dual pump relay, glove compartment light
4 10 red Instrument cluster, aut. AC control unit
5 15 blue Turn signal lamp
6 15 blue (Information center, cigar lighter)
7 20 yellow Instrument cluster, autom. AC, relay module, Motornics
8 7,5 brown Autom. AC control unit
9 — — Spare
10 7,5 brown Rear wiper, dual pump
11 15 blue Socket (station wagon)
12 10 red Seat belt w. comfort feature, (front seat heater, rear window blind)
13 10 red Radio, sidebag sensor
14 7,5 brown Central control unit, infrared control unit, (parking assist)
15 15 blue Tank vent valve, camshaft adjuster, exhaust gus recirculation valve, variable resonance manifold valve, 02 sensor heater relay, preglow time-limit relay, kick-down relay/elec. trans. ctrl. kick-down valve, 2nd driving program valve, headlamp range control module
16 15 blue L/R ext. mirror adjustment, inc. mirror heaters, 8int. mirror day/night adjustment, washer nozzle heating, washer fluid hose heater
17 10 red Infrared control unit, diagnostic socket, CARB test coupling
18 15 blue Turn signal lamp – infrared control unit
19 15 blue Ignition coil
20 40 orange Fan
21 — — Spare
22 30 green Central control unit
23 7,5 brown Telephone
24 7,5 brown CD changer, (TV receiver, video)
25 — — Spare
26 — — Spare
– Spare fuses located in 2nd row  (observer correct amperage)- Additional fuses are located underneath the rear seat bench on the right, and the nextr to the light switch in the cocpit- Fuse extractor in car tool kit

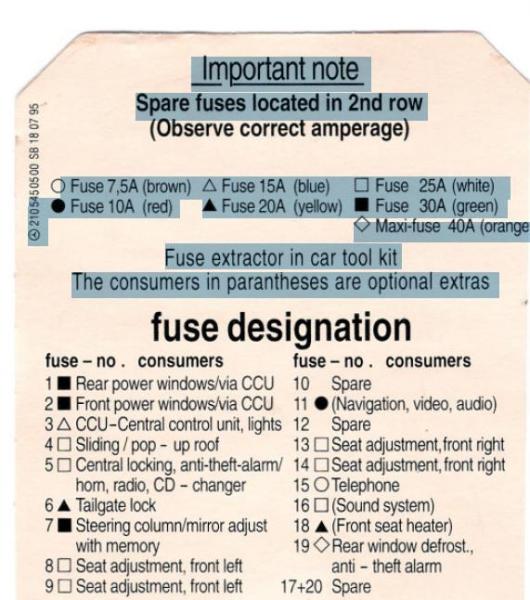

Fuse box under the seat, near the battery (210 545 05 00):

Fuse Ampere rating [A] Colour Function
1 30 green Rear power windows/via CCU
2 30 green Front power windows/via CCU
3 15 blue CCU – Central control unit, lights
4 25 white Sliding/pop – up roof
5 25 white Central locking, anti – theft /horn, radio, CD changer
6 20 yellow Tailgate lock
7 30 green Steering column/mirror adjust with memory
8 25 white Seat adjustment, front left
9 25 white Seat adjustment, front left
10 — — Spare
11 10 red (Navigation, video, audio)
12 — — Spare
13 25 white Seat adjustment, front right
14 25 white Seat adjustment, front right
15 7,5 brown Telephone
16 25 white (Sound system)
17 — — Spare
18 20 yellow Front seat heater
19 40 orange Rear window defrost, anti thef alarm
20 — — Spare
– Spare fuses located in 2nd row  (observer correct amperage)

Fuses

Ampere rating [A] Colour Fuse
7,5 brown Fuse
10 red Fuse
15 blue Fuse
20 yellow Fuse
25 white Fuse
30 green Fuse
40 orange Maxi – fuse
Mercedes-Benz E-Class w210 e320 (1996) - fuse box diagram
Mercedes-Benz E-Class w210 e320 (1996) – fuse box diagram
Mercedes-Benz E-Class w210 e320 (1996) -fuse box diagram in rear compartment
Mercedes-Benz E-Class w210 e320 (1996) -fuse box diagram in rear compartment

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
