Mercury Mariner (2005 – 2007) – fuse box diagram
Year of production: 2005, 2006, 2007

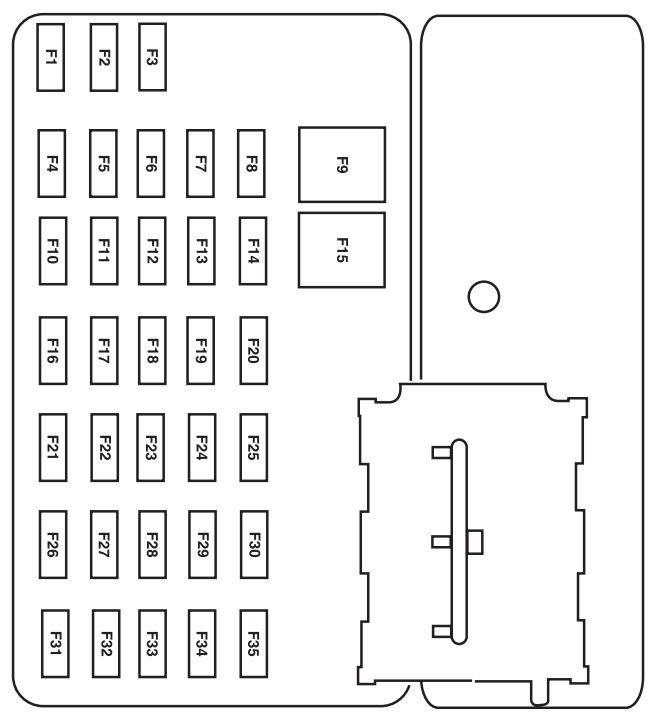

Passenger compartment fuse panel
The fuse panel is located on the right-hand side of the center console, by the instrument panel.
Fuse/relay | Ampere rating [A] | Description |
1 | 15 | Trailer tow park lamps |
2 | — | Not used |
3 | 15* | Front and rear park lamps |
4 | 10* | Ignition switch |
5 | 2* | Powertrain Control Module (PCM relay), Fuel pump relay, Main fan relay, High/Low speed fan relay 2, PATS module |
6 | 15* | Center High-Mounted Stop Lamp (CHMSL), Stop lamps, PCM, Anti-lock Brake System (ABS), Speed control, Brake On-Off switch |
7 | 10* | Instrument cluster, Diagnostic connector, Power mirror switch, Radio |
8 | 5* | Canister vent (’07) |
9 | 30** | Power door locks, Power seats |
10 | 15* | Heated mirrors |
11 | 15* | Sunroof, Electrochromatic mirror, Compass |
12 | 5* | Radio |
13 | — | Not used |
14 | — | Not used |
15 | 30** | Power windows |
16 | 15* | Subwoofer |
17 | 15* | Low beams |
18 | 10* | 4WD |
19 | — | Not used |
20 | 15* | Horn |
21 | 10* | ’05-’06: Rear wiper motor, Rear wiper washer |
15 | ’07: Rear wiper motor, Rear wiper washer | |
22 | 10* | Instrument cluster |
23 | — | Not used |
24 | 20* | Cigar lighter |
25 | 20* | Front wiper motor, Front wiper washer |
26 | 5* | Climate control system mode switch |
27 | 5* | Canister vent (’05-’06), Speed control cancel switch |
28 | 10* | Instrument cluster |
29 | 10* | Reverse park aid |
30 | — | Not used |
31 | — | Not used |
32 | 10* | Brake-Transmission shift lock |
33 | 15* | Air bag module, Passenger Air bag Deactivation (PAD) indicator lamp, Occupant Classification Sensor (OCS) |
34 | 5* | ABS module, Evac and Fill, Speed control |
35 | 5* | Heated seats module, 4WD |
* Mini fuse ** Cartridge fuse |

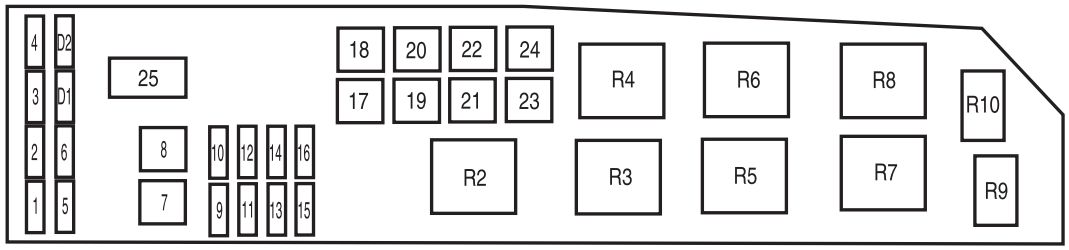

Power distribution box
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Fuse/relay | Ampere rating [A] | Description |
1 | — | Not used |
2 | 25* | Headlamp power |
3 | 25* | High beams, Turn signals, Interior lamps, Headlamp power |
4 | 5* | Keep Alive Power (KA PWR) |
5 | 15* | Heated Exhaust Gas Oxygen (HEGO) sensors |
6 | 20* | Fuel pump |
7 | 40** | RUN/ACC relay – Electrochromatic mirror, Cigar lighter, Front and rear wipers, Compass |
8 | 30** | Powertrain Control Module (PCM), Injectors and coil |
9 | 15* | Alternator |
10 | 30* | Heated seats |
11 | 10* | PCM |
12 | 20* | Power point |
13 | 20* | Fog lamps |
14 | 15* | A/C clutch, A/C relay |
15 | 30* | Anti-lock Brake System (ABS) solenoid |
16 | 25* | I/P fuse panel (RUN/START) |
17 | 50** | Ignition (main) |
18 | 40* | Blower motor |
19 | 40** | Accessory delay relay – Subwoofer and 4WD, Low beam |
20 | 60** | ABS |
21 | 40** | Horn, CHMSL, Cluster, Power locks and power seats |
22 | 40**(I4) | 2.3 L: Cooling fan |
50** (V6) | 3.0 L:Cooling fan | |
23 | 40** | Rear defroster, Park lamps relay |
24 | 40** (I4) | 2.3 L: High/Low speed fan |
50** (V6) | 3.0 L:High/Low speed fan | |
25 | — | Shunt |
Relay | ||
R2 | PCM | |
R3 | Fuel pump relay | |
R4 | Cooling fan relay | |
R5 | High/Low speed fan relay 1 | |
R6 | Blower motor relay | |
R7 | Starter relay | |
R8 | High/Low speed fan relay 2 | |
R9 | Fog lamps relay | |
R10 | A/C relay | |
Diode | ||
D1 | — | |
D2 | A/C diode | |
* Mini fuse **Cartridge fuse |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
