Mercury Mariner (2008 – 2011) – fuse box diagram

Mercury Mariner (2008 – 2011) – fuse box diagram

Year of production: 2005, 2006, 2007

Passenger compartment fuse panel

The fuse panel is located on the right-hand side of the center console, by the instrument panel.

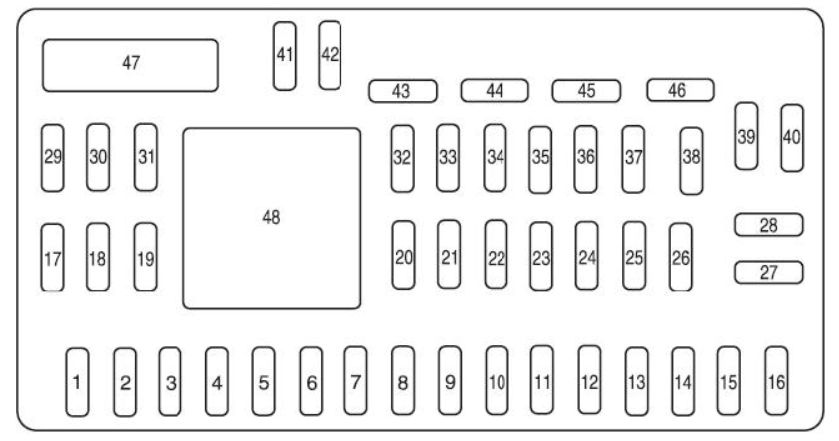

Mercury Mariner - fuse box diagram - passenger compartment
Mercury Mariner – fuse box diagram – passenger compartment
Fuse/relay Ampere rating [A] Description
1 30 110V inverter
2 15 Brake On/Off switch
3 15 ’09-’11: SYNC module
4 30 ’09-’11: Moon roof
5 10 Keypad illumination, Brake Shift Interlock (BSI), Passenger compartment fuse panel
6 20 Turn signals, Stop lamps
7 10 Low beam headlamps (left)
8 10 Low beam headlamps (right)
9 15 Interior lights
10 15 Backlighting
11 10 Four wheel drive
12 7,5 Power mirror switch
13 7,5 ’08: Canister vent
14 10 FCIM (radio buttons), Satellite radio, Front display module, GPS module (’10-’11)
15 10 Climate control
16 15
17 20 All lock motor feeds, Liftgate release, Liftglass release
18 20 Heated seat
19 25 Rear wiper
20 15 Datalink
21 15 Fog lamps
22 15 Park lamps
23 15 High beam headlamps
24 20 Horn relay
25 10 Demand lamps
26 10 Instrument panel cluster
27 20 Ignition switch
28 5 Radio
29 5 Instrument panel cluster
30 5 ’08: Overdrive cancel
31 10 Restraints control module
32 10 ’10-’11: Rear video camera module
33 10 ’08: Speed control switch
34 5 ’08: Speed control deactivate switch, ABS
35 10 Four wheel drive, Electric power assist steering (EPAS), Park aid module, Active park assist module (’10-’11), 110V inverter module
36 5 Passive anti-theft system (PATS) transceiver
37 10 Climate control
38 20 Subwoofer/Amp (audiophile radio / premium radio)
39 20 Radio, Radio amplifier (navigation only (’10-’11))
40 20 Front power point
41 15 Driver/passenger door lock switches, Automatic dimming mirror, Compass, Ambient lighting, Moon roof, Camera display in mirror
42 10
43 10 Rear wiper logic, Heated seats relay, Instrument cluster
44 10
45 5 Front wiper logic, Blower motor relay
46 7,5 Occupant classification system (OCS), Passenger airbag deactivation indicator (PADI)
47 30 Circuit Breaker: Power windows, Moon roof (’08)
Relay
48 Delayed accessory

Engine Compartment Fuse Box

2008, Hybrid

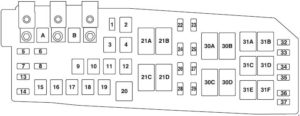

Mercury Mariner - fuse box diagram - engine compartment - hybrid (2008)
Mercury Mariner – fuse box diagram – engine compartment – hybrid (2008)

2009-2011

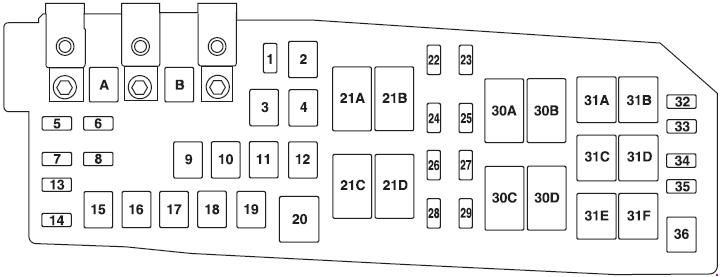

Mercury Mariner - fuse box diagram - engine compartment (2009 - 2011)
Mercury Mariner – fuse box diagram – engine compartment (2009 – 2011)
Fuse/relay Ampere rating [A] Description
A 80 Electronic power steering module (EPAS)
B 125 Passenger compartment fuse panel (SPDJB)
1 15 Heated mirror
2 30 Rear defroster
3 20 Rear power point (center console)
4 20 ’08: Fuel pump (except Hybrid)
40 Hybrid: Electric vacuum pump
5 10 Powertrain Control Module (PCM) Keep Alive power, PCM relay (’09-’11), Canister vent (’09-’11), Transmission control module (Hybrid)
6 15 except Hybrid: Alternator
7 10 ’08: Reverse lamps
15 ’09-’11: Liftgate latch
8 20 Trailer tow parking lamps
5 Hybrid: Traction battery control module
9 50 Anti-lock Brake System (ABS)
Hybrid: Brake control module
10 30 Front wipers
11 30 except Hybrid: Starter
12 40 Blower motor
13 10 A/C clutch
14 15 except Hybrid: Trailer tow turn lamps
10 Hybrid: Heater/Coolant pump
15 10 Hybrid: Traction Battery Control Module (TBCM)
16 40 Cooling fan 1
17 40 Cooling fan 2
18 20 except Hybrid: ABS solenoid
50 Hybrid: Brake control module solenoid
19 30 Power seats
22 20 ’09-’11: Fuel pump (except Hybrid)
15 Hybrid: Ignition coils
23 15 ’09-’11: Fuel injectors (except Hybrid)
24 10 ’08: PCM transmission (except Hybrid)
Hybrid: Transmission control module
25 5 ’09-’11: Anti-lock Brake System (ABS) (except Hybrid)
Hybrid: Traction battery control module, Thermal expansion valve
26 10 ’08: PCM mil (except Hybrid)
15 ’09-’11: Ignition coils (except Hybrid)
20 Hybrid: Fuel pump, Traction battery control module
27 10 ’08: PCM non-mil
’09-’11: PCM – general powertrain components malfunction indicator lamp
28 15 ’08: PCM (except Hybrid)
Hybrid: Heated Exhaust Gas Oxygen (HEGO) sensor, PCM (mil-on — malfunction indicator lamp)
20 ’09-’11: PCM – emission related powertrain components malfunction indicator lamp (except Hybrid)
29 15 ’08: Ignition coils
’09-’11: PCM
32 Hybrid: A/C clutch diode
33 PCM diode
34 except Hybrid: Start diode
35 10 Reverse lamp relay, Speed control module (’08), Rear defrost relay, Run/start (’09-’11)
36
37
Relay
20 A/C clutch
21A Rear defroster
21B ’09-’11: Fuel pump
Hybrid: Ignition
21C Blower
21D PCM
30 Cooling fan 1
30B Starter
Hybrid: Electric vacuum pump mechanical
30C Cooling fan main
30D Cooling fan 2
31A Reverse lamp
31B ’08: Fuel pump
31C except Hybrid: Trailer tow left turn
Hybrid: Heater pump
31D except Hybrid: Trailer tow right turn
Hybrid:
Coolant pump
31E except Hybrid: Trailer tow park
31F 09-’11: Liftgate latch

Auxiliary relay box (Hybrid)

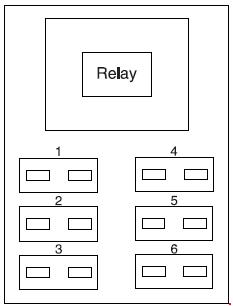

Mercury Mariner - fuse box diagram - auxilliary relay box (hybrid)
Mercury Mariner – fuse box diagram – auxilliary relay box (hybrid)
Fuse/relay Ampere rating [A] Description
1
2
3
4 5 Vacuum pump monitor
5
6
Relay
R1 Electric vacuum pump (solid state)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
