Mercury Milan (2005 – 2009) – fuse box diagram
Year of production: 2005, 2006, 2006, 2007, 2008, 2009

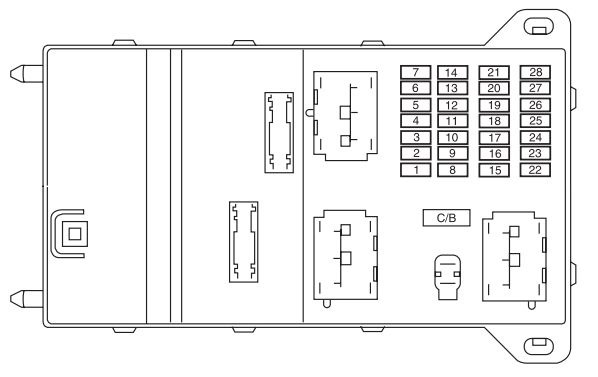

Passenger compartment fuse panel
The fuse panel is located below and to the left of the steering wheel by the brake pedal. Remove the panel cover to access the fuses.
| Fuse/relay | Ampere rating [A] | Description |
| 1 | 10 | Backup lamps, Electrochromatic mirror |
| 2 | 20 | Horns |
| 3 | 15 | Battery saver: Interior lamps, Puddle lamps, Trunk lamp, Power windows |
| 4 | 15 | Parklamps, Side markers, License plate lamps |
| 5 | — | Not used |
| 6 | — | Not used |
| 7 | — | Not used |
| 8 | 30 | Rear window defroster |
| 9 | 10 | Heated mirrors |
| 10 | 30 | Starter coil, PCM |
| 11 | 15 | High beams |
| 12 | 7,5 | Delay accessories: Radio head units, Moonroof, Lock switch illumination, Electrochromatic mirrors |
| 13 | 7,5 | Cluster, KAM-PCM, Analog clock, Climate control head units, Canister vent solenoid |
| 14 | 15 | Washer pump |
| 15 | 20 | Cigar lighter |
| 16 | 15 | Door lock actuator, Decklid lock solenoid |
| 17 | 20 | Subwoofer |
| 18 | 20 | Radio head units, OBDII connector |
| 19 | — | Not used |
| 20 | 7,5 | Power mirrors |
| 21 | 7,5 | Stop lamps |
| 22 | 7,5 | Audio |
| 23 | 7,5 | Wiper relay coil, Cluster logic |
| 24 | 7,5 | OCS (Passenger’s seat), PAD indicator |
| 25 | 7,5 | RCM |
| 26 | 7,5 | PATS Transceiver, Brake shift interlock solenoid, Brake pedal switch |
| 27 | 7,5 | Cluster, Climate control head units |
| 28 | 10 | ABS/Traction Control, Heated seats, Compass |
| C/B | 30 CB | Power windows, Delayed accessory (SJB fuse12) |

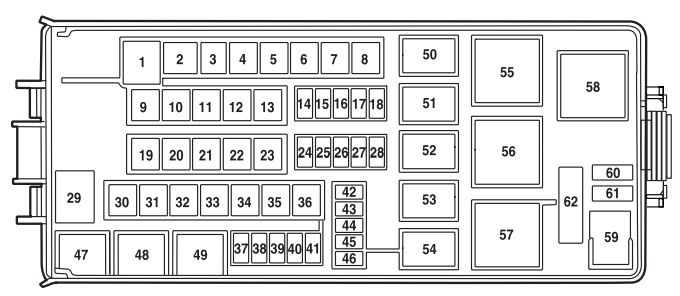

Engine Compartment Fuse Box (2005 – 2007)
The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
| No. | A | Circuits Protected |
| 1 | 60 | SJB power feed (fuses 12, 13, 14, 15, 16, 17, 18, C/B) |
| 2 | 40 | Powertrain power |
| 3 | — | Not used |
| 4 | 40 | Blower motor |
| 5 | — | Not used |
| 6 | 40 | Rear window defroster, Heated mirrors |
| 7 | 40 | PETA Pump (PZEV engine only) |
| 8 | — | Not used |
| 9 | 20 | Wipers |
| 10 | 20 | ABS Valves |
| 11 | 20 | Heated seats |
| 12 | — | Not used |
| 13 | — | Not used |
| 14 | 15 | Ignition switch |
| 15 | — | Not used |
| 16 | 15 | Transmission |
| 17 | 20 | Console power point |
| 18 | 10 | Alternator sense |
| 19 | 40 | Logic feed to SJB (solid state devices) |
| 20 | — | Not used |
| 21 | — | Not used |
| 22 | — | Not used |
| 23 | 60 | SJB power feed (fuses 1, 2, 4, 10, 11) |
| 24 | 15 | Fog lamps |
| 25 | 10 | A/C Compressor clutch |
| 26 | — | Not used |
| 27 | — | Not used |
| 28 | — | Not used |
| 29 | 50 | Engine cooling fan |
| 30 | 30 | Fuel pump relay feed |
| 31 | — | Not used |
| 32 | 30 | Driver power seat |
| 33 | 20 | Moonroof |
| 34 | — | Not used |
| 35 | — | Not used |
| 36 | 40 | ABS Pump |
| 37 | — | Not used |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | — | Not used |
| 41 | — | Not used |
| 42 | 15 | PCM non-emission related |
| 43 | 15 | Coil on plug |
| 44 | 15 | PCM emission related |
| 45 | 5 | PETA Pump feedback (PZEV engine only) |
| 46 | 15 | Injectors |
| 62 | – | Circuit Breaker: Spare |
| Diode | ||
| 60 | Fuel pump | |
| 61 | Not used | |
| Relay | ||
| 47 | Fog lamps | |
| 48 | Not used | |
| 49 | Not used | |
| 50 | Wiper Park | |
| 51 | A/C Clutch | |
| 52 | Not used | |
| 53 | Wiper RUN | |
| 54 | Transmission (I4 engine only) | |
| 55 | Fuel pump | |
| 56 | Blower motor | |
| 57 | PCM | |
| 58 | PETA Pump (PZEV engine only) | |
| 59 | Not used | |

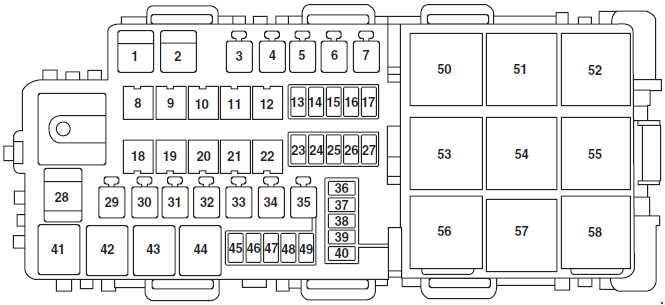

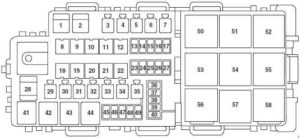

Engine Compartment Fuse Box (2008 – 2009)
| No. | A | Circuits Protected |
| 1 | 60 | SJB power feed (fuses 12, 13, 14, 15, 16, 17, 18, C/B) |
| 2 | 60 | SJB power feed (fuses 1, 2, 4, 10, 11) |
| 3 | 40 | Powertrain power, PCM relay coil |
| 4 | 40 | Blower motor |
| 5 | — | Not used |
| 6 | 40 | Rear window defroster, Heated mirrors |
| 7 | 40 | PETA Pump (PZEV) power feed |
| 8 | 40 | ABS pump |
| 9 | 20 | Wipers |
| 10 | 30 | ABS Valves |
| 11 | 20 | Heated seats |
| 12 | — | Not used |
| 13 | 10 | SYNC |
| 14 | 15 | Ignition switch |
| 15 | — | Not used |
| 16 | 15 | Transmission |
| 17 | 10 | Alternator sense |
| 18 | — | Not used |
| 19 | 40 | Logic feed to SJB (solid state devices) |
| 20 | — | Not used |
| 21 | — | Not used |
| 22 | 20 | Console power point |
| 23 | 10 | PCM KAM, FNR5 and canister vent solenoid |
| 24 | 15 | Fog lamps |
| 25 | 10 | A/C Compressor clutch |
| 26 | — | Not used |
| 27 | — | Not used |
| 28 | 60 | Engine cooling fan |
| 29 | — | Not used |
| 30 | 30 | Fuel pump/injectors relay |
| 31 | — | Not used |
| 32 | 30 | Driver power seat |
| 33 | 20 | Moon roof |
| 34 | — | Not used |
| 35 | — | Not used |
| 36 | 1 | PCM diode |
| 37 | 1 | One Touch Integrated Start (OTIS) diode |
| 38 | — | Not used |
| 39 | — | Not used |
| 40 | — | Not used |
| 45 | 5 | PETA Pump (PZEV) feedback |
| 46 | 15 | Injectors |
| 47 | 15 | PCM class B |
| 48 | 15 | Coil on plug |
| 49 | 15 | PCM class C |
| Relay | ||
| 41 | Fog lamp relay | |
| 42 | Wiper park relay | |
| 43 | A/C clutch relay | |
| 44 | FNR5 transmission relay | |
| 50 | Not used | |
| 51 | Not used | |
| 52 | Blower relay | |
| 53 | Not used | |
| 54 | Fuel pump/injectors relay | |
| 55 | Wiper RUN relay | |
| 56 | Not used | |
| 57 | PCM relay | |
| 58 | PETA Pump (PZEV) | |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
