Mitsubishi ASX (2010- present) – fuse box diagram

Year of production: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018

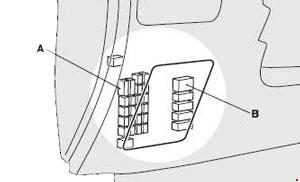

A – Main fuse block
B – Sub fuse block

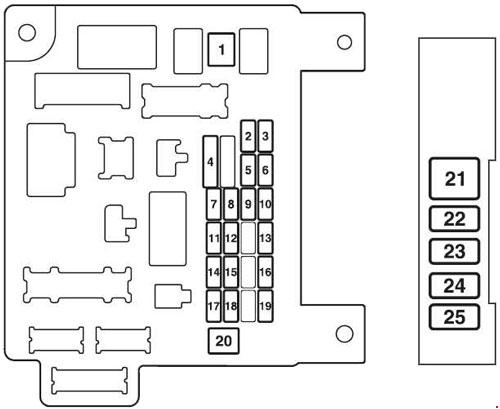

No.	Function/component	A
1	Heater	30
2	Stop lights (Brake lights)	15
3	Rear fog light	10
4	Windshield wiper	30
5	Optional	10
6	Door locks	20
7	Radio	15
8	Control unit relay	7.5
9	Interior lights (Dome lights)	15
10	Hazard warning flasher	15
11	Rear window wiper	15
12	Gauges	7.5
13	Cigarette lighter /Accessory socket	15
14	Ignition Switch	10
15	Sunroof	20
16	Outside rearview mirrors	10
17	All-wheel drive system	10
18	Back-up lights	7.5
19	Accessory socket	15
20	Power window control	30
21	Defogger	30
22	Heated door mirror	7.5
23	Passenger’s power seat	25 20
24	Driver’s power seat	25 20
25	Heated seats	30

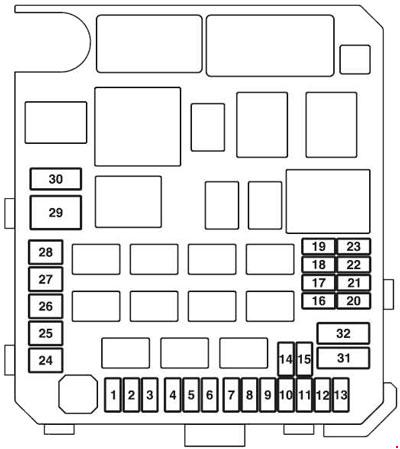

No.	Function/component	A
1	Front fog lights	15
2	Engine	7.5
3	Automatic transaxle	20
4	Horn	10
5	Alternator	7.5
6	Headlight washer	20
7	Air conditioning	10
«	ETV/Oil cooler fan (Twin Clutch SST)	15
9	Security horn	20
10	Wiper deicer	15
11	—	—
12	Power gate	30
13	Daytime running lights	10
14	Headlight (high beam) (left)	10
15	Headlight (high beam) (right)	10
16	Headlight (low beam) (left) (Discharge)	20
17	Headlight (low beam) (right) (Discharge)	20
18	Headlight (low beam) (left) (Halogen)	10
19	Headlight (low beam) (right) (Halogen)	10
20	ENG/POWER	10
21	Ignition coil	10
22	ENG/POWER	20
22	Fuel line heater	25
23	Fuel pump	15
24	Starter	30
25	—	—
26	Anti-lock braking system	40
27	Anti-lock braking system	30
28	Air conditioning condenser fan	30
29	Radiator fan	40
30	IOD	30
31	Audio amplifier	30
32	Diesel	30
33	Spare fuse	10
34	Spare fuse	15
35	Spare fuse	20

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
