Mitsubishi Delica L400 – fuse box diagram
Year of production:
Compartment Fuse Box
| № | А | Assignment |
| 1 | 10 | Horn |
| 2 | 10 | Heater relay |
| 3 | 15 | Cigaraette lighter |
| 4 | 10 | Electric control auto trans (grade option) |
| 5 | 20 | Curtain (grade option) |
| 6 | 20 | Defogger |
| 7 | 15 | Seat heater (grade option) royal exceed |
| 8 | 10 | Meter |
| 9 | 20 | Wiper |
| 10 | 15 | ETACS — Electronic Total Automobile Control System, central locking |
| 11 | 25 | Heater |
| 12 | 20 | Rear heater (grade option) |
| 13 | 10 | ECS/ABS (grade option) |
| 14 | 10 | Back up lamp |
| 15 | 10 | Indicators |
| 16 | 20 | Accessory socket |
| 17 | – | Defogger |
| 18 | – | Heater |
| 19 | – | Spare fuses |
| 20 | – | Spare fuses |
| 21 | – | Spare fuses |
| 22 | – | Spare fuses |

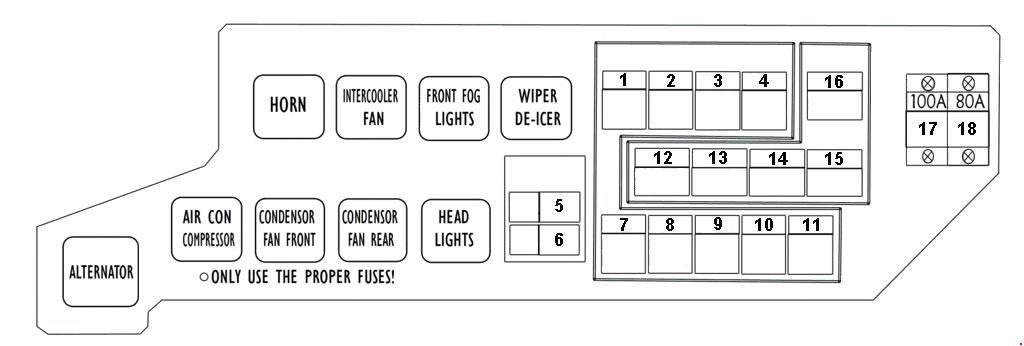

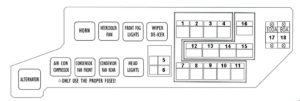

Engine Compartment Fuse Box
| № | А | Assignment |
| 1 | 10 | High beam |
| 2 | 10 151) |
AC |
| 3 | 10 | Tail lamp |
| 3 | 15 | Fog lights (grade option) |
| 4 | 10 | Tail lamp |
| 5 | 10 | Interior lights |
| 6 | 15 | Radio |
| 7 | 10 | Brake lights, central locking |
| 8 | З0 201) |
Front condensor fan |
| 9 | 15 101) |
Rear condensor fan |
| 10 | 15 | Heater fuel lines |
| 10 | 15 | Wiper De-Icer |
| 11 | 10 | Hazard |
| 12 | 20 | Engine intercoler fan |
| 13 | 30 | Back window |
| 14 | 50 | ABS |
| 15 | 40 | Lamp |
| 16 | 30 | Sunshade sunfoof |
| 17 | 100 | Alternator |
| 18 | 80 | Fuse (+B) |
| 1) up to model year 1996 | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
