Mitsubishi L200 (2005 – 2015) – fuse box diagram
Year of production: 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015
Fuse box on the dashboard

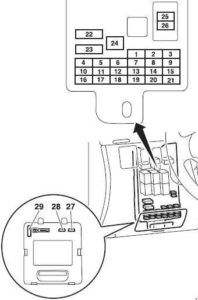

LHD

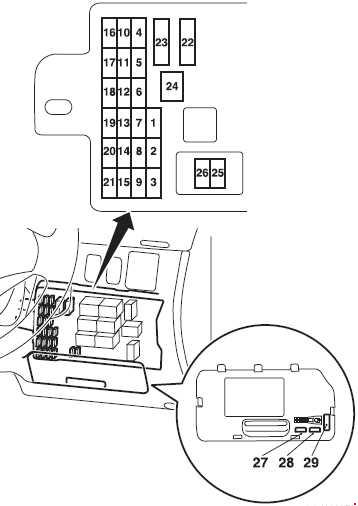

RHD
| Number | Fused function | Ampers |
| 1 | Tail lamp (left) | 7,5 |
| 2 | Cigarette lighter | 15 |
| 3 | Ignition coil | 10 |
| 4 | Starter motor | 7,5 |
| 5 | Sunroof | 20 |
| 6 | Accessory socket | 15 |
| 7 | Tail lamp (right) | 7,5 |
| 8 | Outside rear-view mirrors | 7,5 |
| 9 | Engine control unit | 7,5 |
| 10 | Control unit | 7,5 |
| 11 | Rear fog lamp | 10 |
| 12 | Central door lock | 15 |
| 13 | Room lamp | 10 |
| 14 | Rear window wiper | 15 |
| 15 | Gauge | 7,5 |
| 16 | Relay | 7,5 |
| 17 | Heated seat | 20 |
| 18 | Option | 10 |
| 19 | Heated door mirror | 7,5 |
| 20 | Windscreen wiper | 20 |
| 21 | Reversing lamps | 7,5 |
| 22 | Demister | 30 |
| 23 | Heater | 30 |
| 24 | Power seat | 40 |
| 25 | Radio | 10 |
| 26 | Electronic controlled unit | 15 |
| 27 | Spare fuse | 7,5 |
| 28 | Spare fuse | 20 |
| 29 | Spare fuse | 30 |

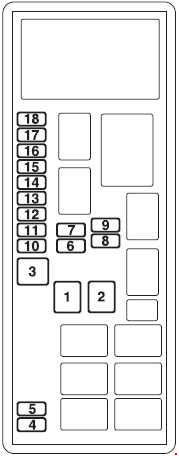

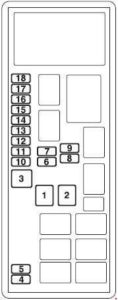

Fuse box in engine compartment
| Number | Fused function | Ampers |
| 1 | — | — |
| 2 | Electric window system | 40 |
| 3 | Ignition switch | 40 |
| 4 | Air conditioning compressor | 10 |
| 5 | Condenser fan motor | 20 |
| 6 | Headlamp high-beam (left) | 10 |
| 7 | Headlamp high-beam (right) | 10 |
| 8 | Headlamp low beam (left) | 10 |
| 9 | Headlamp low beam (right) | 10 |
| 10 | Engine control | 20 |
| 11 | Alternator | 7,5 |
| 12 | Stop lamps | 15 |
| 13 | Horn | 10 |
| 14 | Automatic transmission | 20 |
| 15 | Hazard warning flasher | 10 |
| 16 | Fuel pump | 15 |
| 17 | Front fog lamps | 15 |
| 18 | Audio amp | 20 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
