Mitsubishi Outlander (2012 – present) – fuse box diagram
Year of production: 2012, 2013, 2014, 2015, 2016, 2017, 2018

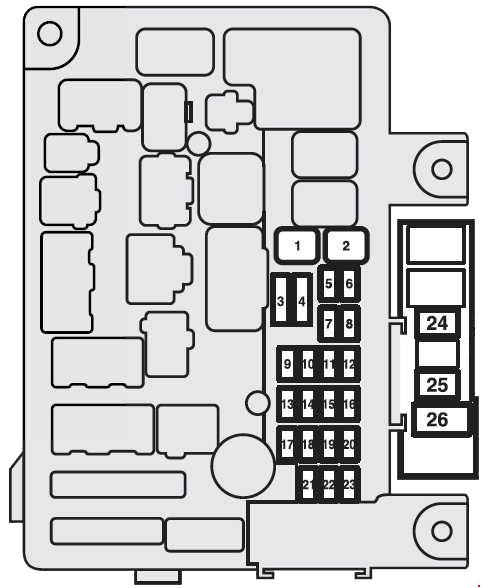

Instrument panel fuse panel
A – Main fuse block
B – Sub fuse block
| No. |
Function/component |
A |
| 1 | Power window control | 30 |
| 2 | Defogger | 30 |
| 3 | Heater | 30 |
| 4 | Windshield wipers | 30 |
| 5 | Door locks | 20 |
| 6 | Rear fog light | 10 |
| 7 | 12 V power outlet | 15 |
| 8 | Rear window wiper | 15 |
| 9 | Sunroof | 20 |
| 10 | Ignition switch | 10 |
| 11 | Option | 10 |
| 12 | Hazard warning flasher | 15 |
| 13 | 4-wheel drive system | 10 |
| 14 | Stop lights (Brake lights) | 15 |
| 15 | Gauges | 10 |
| 16 | SRS airbag | 7.5 |
| 17 | Radio | 15 |
| 18 | Control unit relay | 7.5 |
| 19 | Interior lights (Room lights) | 15 |
| 20 | Back-up lights | 7.5 |
| 21 | Heated outside rearview minors | 7.5 |
| 22 | Outside rearview minors | 10 |
| 23 | Cigarette lighter/ 12 V power outlet | 15 |
| 24 | Charge | 7.5 |
| 25 | Power seat | 30 |
| 26 | Heated seats | 30 |

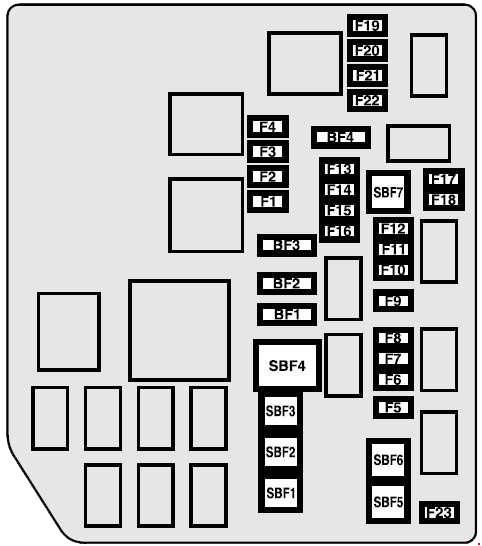

Engine compartment fuse box
| No. |
Function/component |
A |
| SBF1 | Air conditioning condenser fan motor | 30 |
| SBF2 | Starter | 30 |
| SBF3 | Air conditioning condenser fan motor | 30 |
| SBF4 | Radiator fan motor | 40 |
| SBF5 | Anti-lock braking system | 40 |
| SBF6 | VLC | 40 |
| SBF7 | Anti-lock braking system | 30 |
| BF1 | Power liftgate | 30 |
| BF2 | Audio system amplifier | 30 |
| BF3 | IOD | 30 |
| BF4 | Diesel | 30 |
| F1 | Automatic transaxle | 20 |
| F2 | Wiper de-icer | 15 |
| F3 | Not used | – |
| F4 | Daytime running lights | 10 |
| F5 | Front fog lights | 15 |
| F6 | Air conditioner | 10 |
| F7 | Headlight washer | 20 |
| F8 | Security horn | 20 |
| F9 | Horn | 10 |
| F10 | ETV | 15 |
| F11 | Alternator | 7.5 |
| F12 | Engine | 7.5 |
| F13 | ENG/POWER | 20 |
| Fuel line heater | 25 | |
| F14 | Fuel pump | 15 |
| F15 | Ignition coil | 10 |
| F16 | ENG/POWER | 10 |
| F17 | Headlight (high beam) (left) | 10 |
| F18 | Headlight (high beam) (right) | 10 |
| F19 | Head light (low beam) (left) (LED) | 20 |
| F20 | Head light (low beam) (right) (LED) | 20 |
| F21 | Head light (low beam) (left) (Halogen) | 10 |
| F22 | Head light (low beam) (right) (Halogen) | 10 |
| F23 | Battery current sensor | 7.5 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
