Mitsubishi Starion (1983 – 1989) – fuse box diagram

1 July 2021 admin Mitsubishi, Starion 0

Mitsubishi Starion (1983 – 1989) – fuse box diagram

Year of  production: 1983, 1984, 1985, 1986, 1987, 1988, 1989

Passenger Compartment Fuse Box

Mitsubishi Starion- 1983 - 1989 - fuse box diagram - passenger compartment
Mitsubishi Starion- 1983 – 1989 – fuse box diagram – passenger compartment
No. A
 Circuit Protected
1 10 Dome Light, Luggage Compartment Light, Automatic Seat Belt, Clock, Radio, Door Light, ETACS, Theft Alarm
2 15 Stop Light, Speed Control Unit
3 15 Hazard
4 10 Pop-Up Motor
5 20 Blower Motor
6 15 Position Light, Illumination Light, Tail Light, License Plate Light
7 10 A/C Magnet Cutch
8 15 Power Antenna, Central Door Lock, Power Window Relay, Alarm Buzzer
9 15 Horn, Cigarette Lighter, Headlight Relay
10 15 Wiper Motor, Washer Motor, ETACS, Rear Intermittent Wiper Relay
11 10 Radio, Clock, Power Antenna, Rear Brake Lock-Up Control Relay
12 10 Blower Relay, Defogger Relay, Air Conditioner
13 10 Turn-Signal Light, Meter and Gauge, Remote Controlled Mirror, Power Antenna, ETACS, Automatic Seat Belt
14 10 Alternator, Back-Up Light, Overdrive Relay, Speed Control Switch



Mitsubishi Starion - 1983 - 1989 - fuse box diagram - passenger compartment
Mitsubishi Starion – 1983 – 1989 – fuse box diagram – passenger compartment
No.
 Relay
R2 Turn-Signal Flasher
R3
 Hazard Flasher
R4
 Rear Brake Lock-Up Control
R5
 Door Unlock
R6
 Door Lock
R7
 Overdrive

Engine Compartment Fuse Box

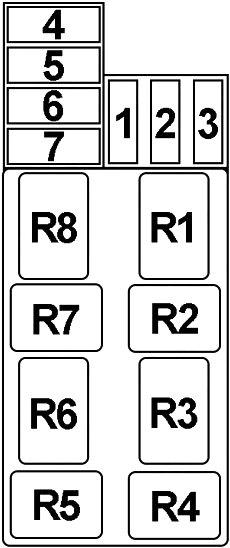

Mitsubishi Starion - 1983 - 1989 - fuse box diagram - engine compartment
Mitsubishi Starion – 1983 – 1989 – fuse box diagram – engine compartment
No. A Load Circuit
1 –  –
2 15 Fog Light
3 5 High Beam
No. mm2 in2
4 0.5 .0008 Pop-Up
5 – –  –
6 0.5 .0008 Defogger
7 0.5 .0008 Power Window
Relay
R1 Pop-Up Motor (LH)
R2 Tail Light
R3 Starter Inhibitor
R4 Power Window
R5 Defogger
R6 Wiper
R7 Headlight
R8 Pop-Up Motor (RH)

Sub Fusible Link Block

Mitsubishi Starion - 1983 - 1989 - fuse box diagram - sub fusible link block
Mitsubishi Starion – 1983 – 1989 – fuse box diagram – sub fusible link block
No.
 mm2
 in2
 Load Circuit
1 0.85 .0013 Ignition
2 0.3 .0005 ECI System
3 0.85 .0013 Battery
4 0.5 .0008 Headlight



Main Fusible Link

No.
 mm2
 in2
 Load Circuit
1 1.25 .0019 Pop-Up, Defogger, Power Window

Relay Location

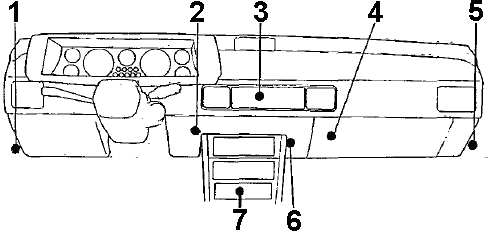

Mitsubishi Starion- 1983 - 1989 - fuse box diagram - relay location
Mitsubishi Starion- 1983 – 1989 – fuse box diagram – relay location
  1. Turn-Signal Flasher Unit / Hazard Flasher Unit / Door Unlock Relay / Overdrive Relay / Door Lock Relay / Rear Brake Lock-Up Control Relay
  2. Blower Relay
  3. Automatic Air Conditioner Control Unit
  4. Blower Motor High Speed Relay / Blower Motor Starter Cutout Relay
  5. ECI Control Unit
  6. Passing Control Relay
  7. Automatic Seat Belt Control Unit

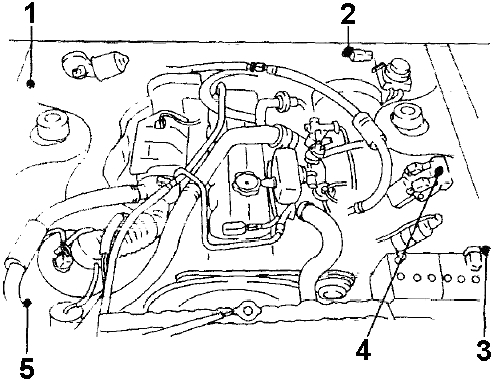

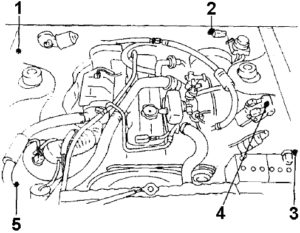

Mitsubishi Starion - 1983 - 1989 - fuse box diagram - relay location 2
Mitsubishi Starion – 1983 – 1989 – fuse box diagram – relay location 2
  1. Vacuum Pump Relay
  2. Passing Relay
  3. Radiator Fan Air Conditioner Relay No.1 / Theft Alarm Horn Relay / Condenser Fan Motor Relay / Radiator Fan Air Conditioner Relay No.2 / Magnet Clutch Relay
  4. Fog Light Relay / Radiator Fan Motor Relay No.1 / Radiator Fan Motor Relay No.2

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
