Nissan Juke (2011 – 2017) – fuse box diagram

Year of production: 2011, 2012, 2013, 2014, 2015, 2016, 2017

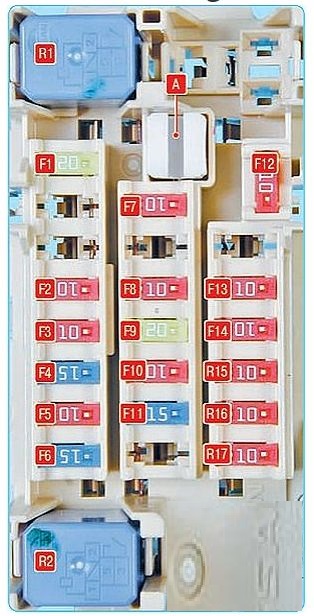

№	A	Component
F1	20A	Socket, cigarette lighter, audio system, electric mirrors
F2	10A	Audio system
F3	10A	Mounting block in engine compartment
F4	15A	Air fan blower relay
F5	10A	Air Conditioner
F6	15A	Air fan blower relay
F7	10A	Additional equipment
F8	10A	Instrument cluster
F9	20A	Trailer equipment
F10	10A	Interior lighting
F11	15A	Seat Heating
F12	10A	Mirrors heating
F13	10A	Instrument cluster
F14	10A	Additional equipment
F15	10A	Additional equipment
F16	10A	Washers
F17	10A	SRS
Relay
R1		Optional equipment relay
R2		Blower fan relay

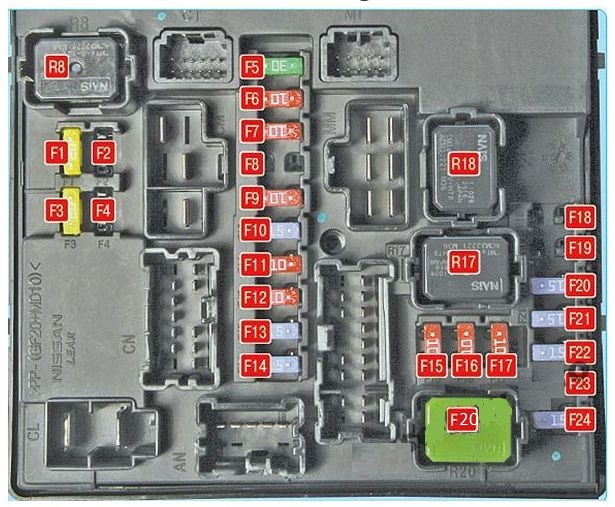

№	A	Component
F1	20A	Heated rear window, heated mirrors
F2	–	Not used
F3	20A	Engine management system
F4	–	Not used
F5	30A	Windshield washer/wipers
F6	10A	Right parking lights
F7	10A	Left parking lights
F8	–	Not used
F9	10A	A/C compressor clutch
F10	15A	Fog lights
F11	10A	High beam lamp (right)
F12	10A	High beam lamp (left)
F13	15A	Low beam lamp (left)
F14	15A	Low beam lamp (right)
F15	10A	Engine management system
F16	10A	Reversing light bulbs
F17	10A	Anti-lock braking system
F18	–	Not used
F19	–	Not used
F20	15A	Fuel pump
F21	15A	Ignition system
F22	15A	Injection system
F23	–	Not used
F24	15A	Power Steering
Relay
R8		Heater rear window Relay
R17		Cooling Fan Relay (-)
R18		Cooling Fan Relay (+)
R20		Ignition system relay

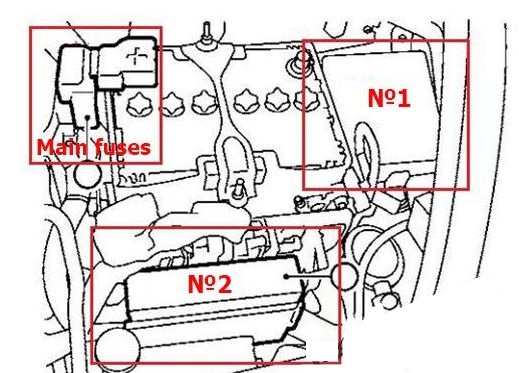

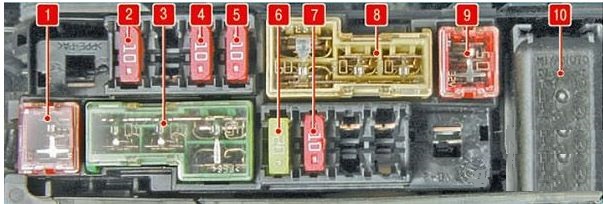

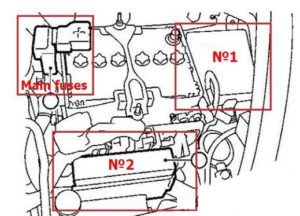

№	A	Component
1	50A	ABS
2	10A	Stop signal
3	40A	Ignition system, Power windows, ABS
4	10A	AT
5	10A	Horn, generator
6	20A	Audio system
7	10A	AT
8	60A	Electric power steering
8	30A	Headlight washer
8	30A	ABS
9	50A	Cooling Fan
10		Horn relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
