Nissan Quest (1998 – 2002) – fuse box diagram

13 October 2019 admin Nissan, Quest 0

Nissan Quest (1998 – 2002) – fuse box diagram

Year of production: 1998, 1999, 2000, 2001

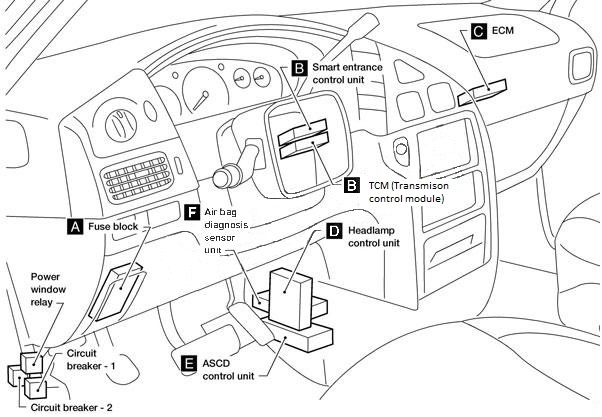

Passenger compartment

Nissan Quest - fuse box diagram - passenger compartment
Nissan Quest – fuse box diagram – passenger compartment

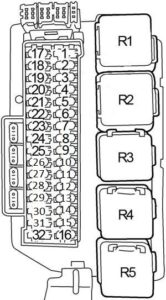

Passenger Compartment Fuse Box

Nissan Quest - fuse box diagram - passenger compartment fuse box
Nissan Quest – fuse box diagram – passenger compartment fuse box
Fuse [A] Protected Component
1 7,5 Front Heated Seats
2 10 Transmission Control Module (TCM), Rear Wiper Motor, EATC Unit
3 10 Air Bag Diagnosis Sensor Unit
4 10 IACV-AAC Valve, Vacuum Cut Valve Bypass Valve, Engine Control Module (ECM), Data Link Connector, Map/Baro Switch Solenoid Valve, Throttle Position Sensor, EVAP Canister Vent Control Valve
5 7,5 Door Mirror Remote Control Switch, SECU
6 20 Cigarette Lighter
7 20 Rear Power Point
8 20 Front Wiper Motor, Front Washer Motor, Front Wiper Amplifier
9 10 Rear Wiper Motor, Rear Washer Motor
10 15 ’01-’02: Audio, Video Monitor, Subwoofer Amplifier
  7,5 ’98-’00: Audio
11 20 ’01-’02: Rear Power Point (Console Mounted)
  20 ’98-’00: Subwoofer Amplifier
12 7,5 Headlamp Control Unit, Engine Control Module (ECM)
13 7,5 Air Conditioner Control Unit, Air Conditioner Relay, EATC Unit, Air Mix and Mode Door, IACC-FICD Solenoid Valve
14 20 Rear Window Defogger
15 20 Rear Window Defogger
16 10 Rear Window Defogger Switch, Mirror Heaters
17 10 Front Side Marker Lamps, Front Combination Lamp, Combination Switch
18 7,5 Illumination Lamps
19 10 Rear Combination Lamp, Trailer License Lamp
20 10 Audio, CD Changer, Rear Audio Remote Control Unit, FES Control Panel
21 15 Interior Lamps, Memory Seat and Mirror Control Unit, Sunroof Motor
22 20 Stop Lamp Switch, Trailer Tow Control Unit
23 10 Hazard Switch, Security Indicator Lamp
24 15 Rear Blower Motor
25 15 Rear Blower Motor
26 7,5 Heated Oxygen Sensor
27 10 Hazard Switch
28 20 Front Blower Motor, Front Blower Speed Control Unit
29 10 Data Link Connector, Combination Meter, ASCD Brake Switch, Air Conditioner Relay, Cooling Fan Relay, Rear Blower Motor Relay, Memory Seat and Mirror Control Unit, ASCD Control Unit
30 10 ABS Actuator and Electric Unit, Park/Neutral Position Switch, Headlamp Control Unit, SECU, Transmission Control Module (TCM)
31 20 Front Blower Motor, Front Blower Speed Control Unit
32 — —
Relay
R1   Tail Lamp
R2   Ignition
R3   Accessory
R4   Rear Window Defogger
R5   Blower

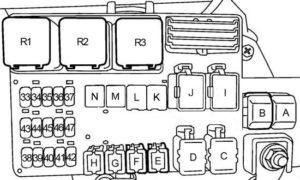

Engine Compartment Fuse Box

Nissan Quest - fuse box diagram - engine compartment fuse box
Nissan Quest – fuse box diagram – engine compartment fuse box
Fuse [A] Protected Component
33 10 Injectors, Engine Control Module (ECM)
34 10 Engine Control Module (ECM) Relay, Data Link Connector
35 10 Generator
36 15 Headlamp RH
37 15 Headlamp LH
38 7,5 Front Fog Lamp Relay
39 7,5 SECU, Vehicle Security Relay
40 — —
41 20 ABS Solenoid Valve Relay
42 15 Horn Relay
43 15 Fuel Pump Relay
44 7,5 Radiator Fan Sensing
45 — —
46 — —
47 — —
A 100 Ignition Relay (Fuse: “26”, “27”, “29”, “30”), Accessory Relay (Fuse: “5”, “6”, “7”, “8”, “9”), Tail Lmap Relay (Fuse: “17”, “18”, “19”) Fuse: “2”, “20”, “21”, “22”, “23”
B 140 Generator, Fuse: “A”, “C”, “F”, “G”, “38”, “39”, “41”, “42”
C 65 Front Blower Motor Relay (Fuse: “28”, “31”)
D — —
E — —
F 30 Circuit Breaker 1 (SECU, Power Window Relay), Circuit Breaker 2 (Power Seat)
G 40 ABS Motor Relay
H — —
I 45 Rear Window Defogger Relay (Fuse: “14”, “15”, “16”), Fuse: “24”, “25”
J 75 Cooling Fan Relay
K 30 Ignition Switch
L 20 Cooling Fan Relay
M — —
N — —
Relay
R1   Cooling Fan Relay 1
R2   Cooling Fan Relay 2
R3   Cooling Fan Relay 3

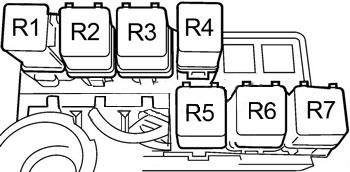

Engine Compartment Relay Box

Nissan Quest - fuse box diagram - engine compartment relay box
Nissan Quest – fuse box diagram – engine compartment relay box
Relay Description
R1 Park/Neutral Position
R2 Fuel Pump
R3 Bulb Check
R4 ’01-’02: Fog Lamp
  ’98-’00: ASCD Hold
R5 Vehicle Security
R6 Horn
R7 Air Conditioner

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
