Oldsmobile Bravada (1993) – fuse box diagram
Year of production: 1993

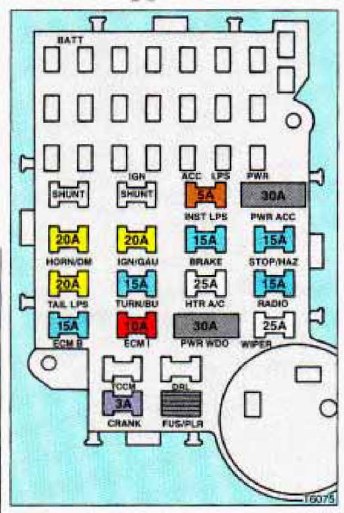

Instrument panel Fuse Block
The fuse block is under the instrument panel on the driver’s side.
| Position | Ampere rating | Circuitry |
| INST LPS | 5 | lnstrument Panel Lights, Headlight, Warning Buzzer, Heater Light, Ashtray Light, Radio Illumination Light, Rear Wiper Switch Light |
| PWR ACC | 30 | Power Door Locks, Rear Defogger Console, Accessory Receptacles, CD Player |
| HORN/DM | 20 | Horn, Dome Lights, Glove Box Light, Clock, Lighter, Lighted Vanity mirror, Outside Rearview Mirror, Courtesy Lights |
| IGN/GAU | 20 | Indicator Lights and Gages, Rear Defogger Relay, Crusie Control, Rear Defogger Switch, Seat Belt Timer |
| BRAKE | 15 | Four Wheel Anti=lock Brake Module, Digital Ratio Adapter Module (Speedometer) |
| STOP/HAZ | 15 | Stop Lights, Hazard Warning Lights, Chime Module |
| TAIL LPS | 20 | Light Switch, Tail/Park Lights, Electronic Cluster, License Light |
| TURN/BU | 15 | Turn Signals & Back-up Lights |
| HTR A/C | 25 | Heating and Air Conditioning |
| RADIO | 15 | Radi, Inside Rearview Mirror Map Lights, Rear Wiper, Rear washer, Compass |
| ECM B | 15 | Electronic Control Module, Fuel Pump |
| ECM I | 10 | Electronic Control Module |
| PRW WDO | 30 | Power Windows |
| WIPER | 25 | Windshield Wipers and Washer |
| CRANK | 3 | Electronic Control Module |
| TRAILER * | 30 | Trailer Wiring Harness |
| UNDERHOOD* | 4 | Underhood Light |
| CD PLAYER | 10 | CD Player (attached to fuse block) |
| * In-line fuse | ||
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
