Oldsmobile Bravada (1997) – fuse box diagram
Year of production: 1997

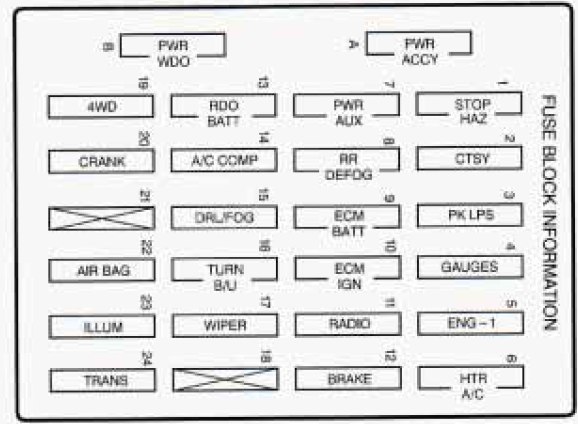

Instrument panel Fuse Block
The fuse block is under the instrument panel on the driver’s side.
| Fuse/Circuit Breaker | Usage |
| A | Power Door Locks, Power Seat, Power Seat Lumbar, Remote Keyless Entry |
| B | Power Windows, Sunroof Module/Motor |
| 1 | Stoplamps, Hazard Lamps, Chime, Center High-Mounted Stoplamp Relay, Center High-Mounted Stoplamp |
| 2 | Dome Lamps, Cargo Lamps, Visor Vanity Mirror, Cigarette Lighter, Inside Rearview Mirror Lamp, Overhead Console Lamps, Glove Box Lamp, Horns, Hom Relay, IP Courtesy Lamps, Power Ourside Rearview Mirror, Liftglass Release Motor, Illuminated Entry Modul |
| 3 | Parking Lamps, License Plate Lamps, Electric Shift Transfer Case Modu, Underhood Lamp, Rear Wiper, Fog Lamp Relay, Door Switch Lamp, Ashtray Lamp, Headlamp Switch |
| 4 | A/C Compressor Relay, Cluster Chime Module, DRL Relay Coil, Four-Wheel-Drive Indicator Lamp, DRL Module, Rear Defog Timer, Transfer Case Control Module Ignition, SIR Redundant Ignition, RKE Ignition, Fuel Sender Module |
| 5 | Oxygen Sensor Heater, Exhaust Gas Recirculation, Cam Sensor, CANN. Purge, Canister Vent Solenoid, Mass Airflow Sensor, Cam Shaft Sensor |
| 6 | Blower Motor, Temperature Door Motor, HI Blower Relay Coil |
| 7 | Power Auxiliary Outlets, Assembly Line Diagnostic Link |
| 8 | Rear Window Defogger |
| 9 | PCMNCM Battery, Fuel Pump |
| 10 | PCMNCM Ignition, Injectors, Crank Sensor, Coil Driver Module |
| 11 | Radio, Inside Rearview Mirror Map Lamp, Overhead Console Reading Lamps, Rear Wiper, Rear Washer, Overhead Console Display |
| 12 | Anti-Lock Braking System, VCM IGN-3 |
| 13 | Clock, Radio, Battery, CD Player |
| 14 | A/C Compressor Battery Feed |
| 15 | Daytime Running Lamps, Fog Lamps, Fog Lamp Relay |
| 16 | Turn Signals and Back-up Lamps, Brake-Transmission Shift Interlock Solenoid |
| 17 | Windshield Washer, Windshield Wiper Motor |
| 18 | Not Used |
| 19 | Electric Shift Transfer Case |
| 20 | Crank Signal, Air Bag System |
| 21 | Not Used |
| 22 | Air Bag Module |
| Cluster Illumination, Radio Illumination, Heater Lamp, 4WD Illumination, Chime Module, Fog Lamp Illumination, Rear Wiper Switch Illumination, Rear Defogger Switch Illumination, Liftglass Release Switch Illumination, Overhead Console Illumination |
|
| 24 | PRNDL Power, 4L60E Automatic Transmission |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
