Oldsmobile Cutlass (1997 – 1999) – fuse box diagram

Oldsmobile Cutlass (1997 – 1999) – fuse box diagram

Year of production: 1997, 1998, 1999

Instrument Panel FusBe lock – Left

The instrument panel fuse blocks are located at each end of the instrument panel.

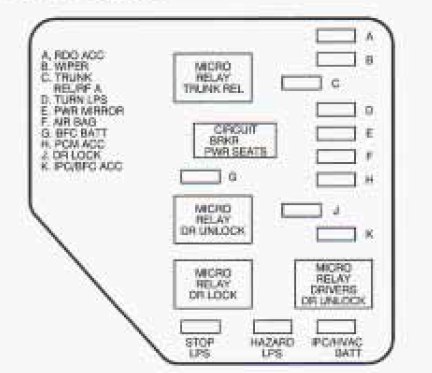

Oldsmobile Cutlass - fuse box diagram - instrument panel (left)
Oldsmobile Cutlass – fuse box diagram – instrument panel (left)
Fuse Usage
A Radio
B Wipers
C Trunk Release and Remote Lock Control
D Turn Signals
E Power Mirrors
F Air Bag
G Body Function Control Module
H Powertrain Control Module
J Door Locks
K Body Function Control Module, Cluster
STOP LPS Stoplamps
HAZARD LPS Hazard Lamps
IPCENAC BATT Cluster, Climate Control
MICRO RELAY TRUNK REL Remote Trunk Release
CIRCUIT BRKR PWR SEATS Power Seats
MICRO RELAY DR UNLOCK Door Locks
MICRO RELAY DR UNLOCK Door Locks
MICRO RELAY DRIVERS DR UNLOCK Not Used

Instrument Panel Fuse Block – Right

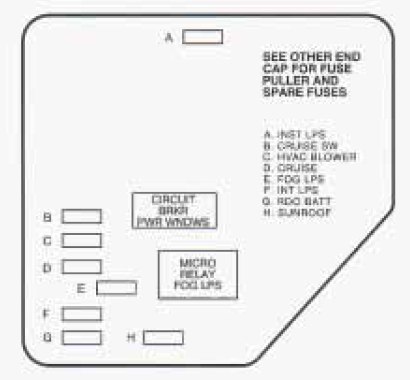

Oldsmobile Cutlass - fuse box diagram  - instrument panel (right)
Oldsmobile Cutlass – fuse box diagram  – instrument panel (right)
Fuse Usage
A Instrument Panel Lights, Dimmer
B Cruise Control
C Climate Control System
D Cruise Control
E Fog Lamps
F Interior Lamps, Body Function Control Module
G Radio
H Sunroof
CIRCUIT BRKR WINDOWS Power Windows
MICRO RELAY FOG LPS Fog Lamps

Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver’s side of the engine compartment, near the air cleaner.

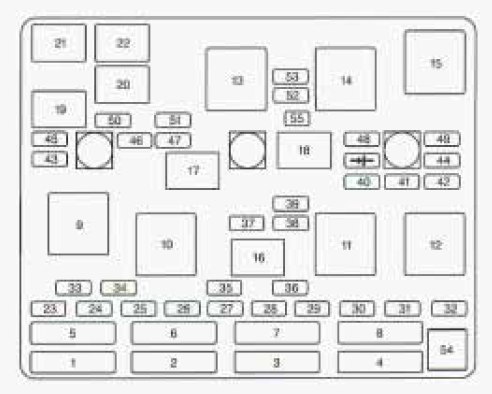

Oldsmobile Cutlass - fuse box diagram - engine compartment

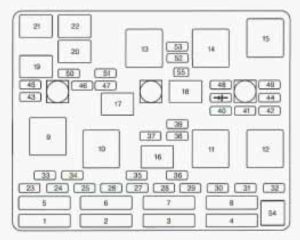

Oldsmobile Cutlass – fuse box diagram – engine compartment
Maxi Fuse Usage
1 Ignition Switch
2 Left-Hand Electrical Center-Power Seats, Power Mirrors, Door Locks, Trunk Release and Remote Lock Control
3 Left-Hand Electrical Center-Stoplamps, Hazard Lamps, Body Function Control Module, Cluster, Climate Control System
4 Right-hand Electrical Center-Fog Lamps, Radio, Body Function Control Module, Interior Lamps
5 Ignition Switch
6 Not Used
7 Anti-Lock Brakes
8 Cooling Fans



Mini Fuse Usage
9 Rear Defog
10 Not Used
11 Anti-Lock Brakes
12 Cooling Fan
13 HVAC Blower (Climate Control
14 Cooling Fans
15 Cooling Fans



Micro Fuse Usage
16 Air Conditioning Compressor
17 Not Used
18 Fuel Pump
19 Automatic Light Control
20 Automatic Light Control
21 Horn
22 Daytime Running Lamps



Mini Fuse Usage
22 Spare Fuses
23 Spare Fuses
24 Spare Fuses
25 Spare Fuses
26 Spare Fuses
27 Spare Fuses
28 Spare Fuses
29 Spare Fuses
30 Spare Fuses
31 Spare Fuses
32 Spare Fuses
33 Rear Defog
34 Accessory Power Outlets, Cigar Lighter
35 Anti-Lock Brakes
36 Anti-Lock Brakes
37 Air Conditioning Compressor, Body Function Control Module
38 Automatic Transaxle
39 Powertrain Control Module, Ignition
40 Anti-Lock Brakes
41 Ignition System
42 Back-up Lamps, Brake-Transaxle Shift Interlock
43 Horn
44 Powertrain Control Module
45 Parking Lamps
46 Rear Defog, Daytime Running Lamps, Climate Control System
47 Canister Purge Valve, Powertrain Control Module, Exhaust Gas Recirculation, Heated 02 Sensor
48 Fuel Pump, Injectors
49 Generator
50 Right-Hand Headlamp
51 Left-Hand Headlamp
52 Cooling Fan
53 WAC Blower (Climate Control)
54 Fuse Puller for Mini-Fuses
55 Tach Test Pointf for Diagnostic Testing

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
