Oldsmobile Intrigue (2001) – fuse box diagram
Year of production: 2001

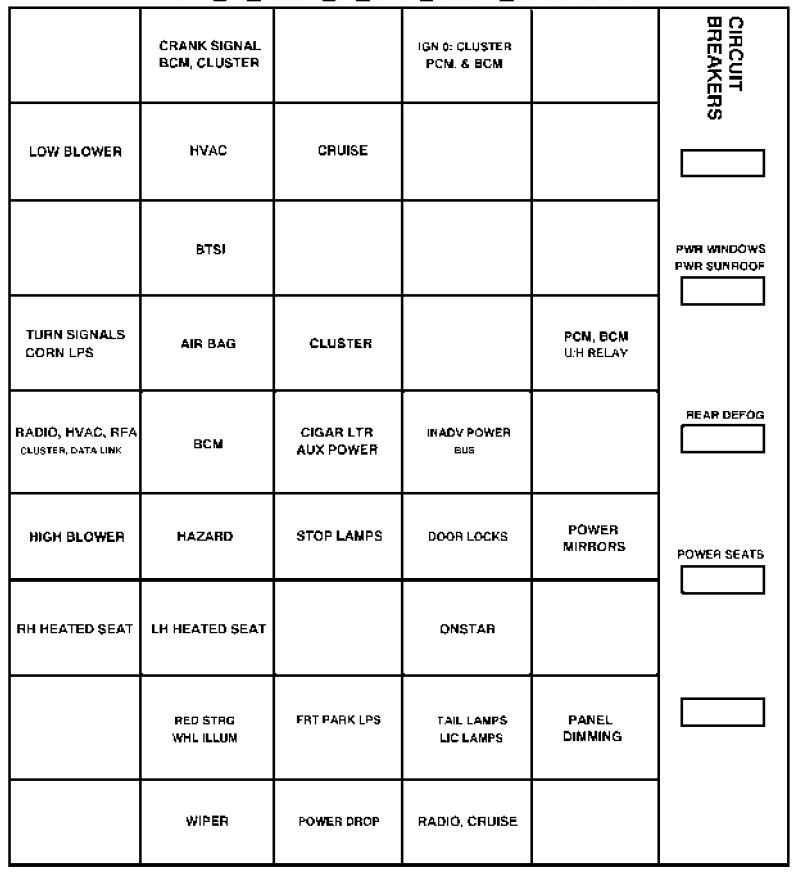

Instrument Panel Fuse Block
These fuses are located in a fuse block on the passenger’s side of the instrument panel.
| Fuse | Description |
| NOT USED | Not Used |
| CRANK SIGNAL BCM, CLUSTER | CRANK — Instrument Panel Cluster, Body Control Module, Powertrain Control Module |
| NOT USED | Not Used |
| IGN 0: CLUSTER PCM, &BCM | Instrument Panel Cluster, Powertrain Control Module, Body Control |
| NOT USED | Not Used |
| LOW BLOWER | HVAC Control Assembly, Blower Motor |
| HVAC | Air Temperature Valve Motor, HVAC Control Assembly, Solenoid Box, Compass Mirror |
| CRUISE | Cruise Control Module |
| NOT USED | Not Used |
| NOT USED | Not Used |
| NOT USED | Not Used |
| BTSI | Automatic Transaxle Shift Lock Control System |
| TURN SIGNALS, CORN LPS | Turn Signals, Cornering Lamps |
| AIR BAG | Air Bag System |
| CLUSTER | Instrument Panel Cluster |
| NOT USED | Not Used |
| PCM, BCM, U/H RELAY | Powertrain Control Module, Body Control Module, Underhood Ignition/Relay |
| RADIO, WAC, RFA CLUSTER DATA LINK | Radio, HVAC Control Assembly, Instrument Panel Cluster, Remote Keyless Entry Module, Data Link Connector, Bose Amplifier |
| BCM | Body Control Module |
| CIGAR LTR, AUX POWER |
Auxiliary Power, Cigarette Lighter, Power Drop |
| INADV POWER BUS | Vanity Mirrors, Instrument Panel Courtesy Lamps, Instrument Panel Compartment Lamps, Trunk Courtesy Lamp, Header Courtesy and Reading Lamps, I/S Lighted Rearview Mirror |
| NOT USED | Not Used |
| HIGH BLOWER | High Blower Relay |
| HAZARD | Hazard Switch |
| STOP LAMPS | Stoplamps Switch |
| DOOR LOCKS | Door Lock Relays (Internal to Body Control Module) and External Driver Door Lock Relay |
| POWER MIRRORS | Left-hand and Right-hand Power Mirrors |
| RH HEATED SEAT | Passenger’s Side Heated Seat |
| LH HEATED SEAT |
Driver’s Side Heated Seat |
| NOT USED | Not Used |
| ONSTAR | OnStar System |
| NOT USED | Not Used |
| NOT USED | Not Used |
| RED STRG WHL ILLUM | Steering Wheel Radio Switch Illumination |
| FRT PARK LPS | Front Parking Lamps, Sidemarker Lamps |
| TAIL LAMPS, LIC LAMPS | Taillamps, License Lamps, Rear Sidemarker Lamps, Rear Sidemarker Lamps |
| PANEL DIMMING | Dimmable Instrument Panel Lamps |
| NOT USED | Not Used |
| WIPER | Wiper Switch |
| POWER DROP | Power Drop |
| RADIO, CRUISE | Radio, Steering Wheel Radio Controls, Cruise Control Switches |
| NOT USED | Not Used |
| Circuit Breaker | Description |
| NOT USED | Not Used |
| PWR WINDOWS, PWR SUNROOF | Power Windows, Power Sunroof |
| REAR DEFOG | Rear Defog |
| POWER SEATS | Power Seats |
| NOT USED | Not Used |

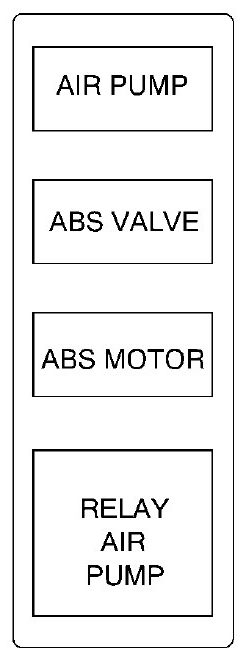

Underhood Electrical Center — Passenger’s Side
Some fuses are in the underhood electrical center. The accessory wiring junction fuse block (A) is located next to the main underhood fuse block (B) on the passenger’s side of the engine compartment.
| Fuse | Usage |
| AIR PUMP | Air Pump |
| ABS VALVE | ABS |
| ABS MOTOR | ABS |
| RELAY AIR PUMP | Air Pump |

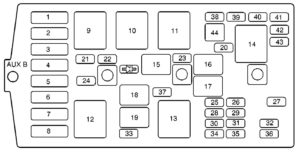

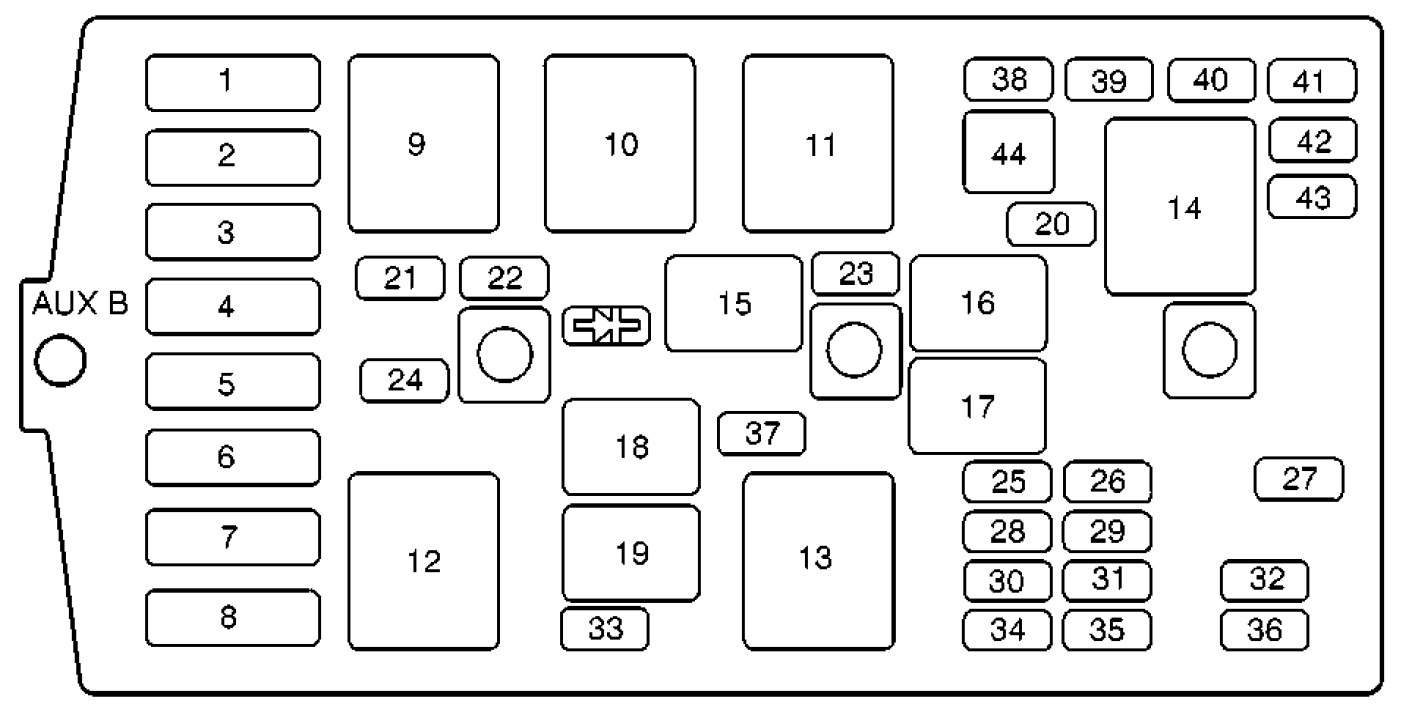

Underhood Electrical Center – Passenger’s Side
Some fuses are in the underhood electrical centers on the passenger’s side of the engine compartment.
| Maxi Fuse | Usage |
| 1 | Cooling Fan |
| 2 | Crank |
| 3 | Power Seats, Rear Defog, Trunk Release |
| 4 | HVAC Controls, Hazard Flasher, CHMSL, Body Control Module, Stoplamp, Power Mirrors |
| 5 | HVAC Controls, Compass Mirror, Cruise Control, PRNDL Lamp, Powertrain Control Module (PCM) |
| 6 | Cooling Fan |
| 7 | Body Control Module, Cigar Lighter, Accessory Power Outlet, Trunk CD Changer, Audio Systems, Keyless Entry System, I/P Cluster, HVAC Controls |
| 8 | Turn Signals, Air Bag System, I/P Cluster, Body Control Module, Windshield Wipers |
| Mini Relay | Usage |
| 9 | Cooling Fan |
| 10 | Cooling Fan |
| 11 | Crank |
| 12 | Cooling Fan |
| 13 | Ignition Main |
| 14 | Blank |
| Micro Relay | Usage |
| 15 | Air Conditioning Compressor |
| 16 | Horn |
| 17 | Fog Lamps |
| 18 | Blank |
| 19 | Fuel Pump |
| Mini Fuse | Usage |
| 20 | Blank |
| 21 | Generator |
| 22 | Powertrain Control Module |
| 23 | Air Conditioning Compressor Clutch |
| 24 | Blank |
| 25 | Fuel Injectors, Electronic Ignition |
| 26 | Transmission Solenoid |
| 27 | Horn |
| 28 | Fuel Injector, Electronic Ignition |
| 29 | Oxygen Sensor |
| 30 | PCM Devices/Engine Emissions Sensors |
| 31 | Fog Lamps |
| 32 | Headlamp (Passenger Side) |
| 33 | Trunk Release |
| 34 | Parking Lamp |
| 35 | Fuel Pump |
| 36 | Headlamp (Driver Side) |
| 37 | ABS |
| 38 | Spare |
| 39 | Spare |
| 40 | Spare |
| 41 | Spare |
| 42 | Spare |
| 43 | Spare |
| Diode | Usage |
 |
Air Conditioning Compressor Diode |
| 44 | Fuse Puller |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
