Opel Adam (2018) – fuse box diagram

22 August 2019 admin Adam, Opel 0

Opel Adam (2018) – fuse box diagram

Year of production: 2018

Engine compartment fuse box

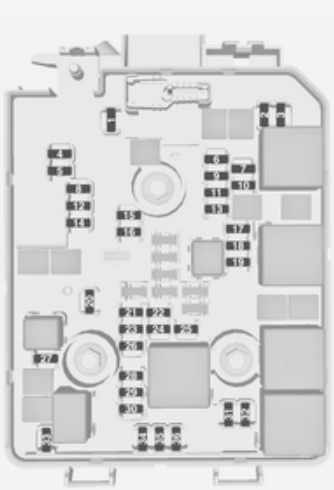

Opel Adam (2013) - fuse box diagram - engine compartment
Opel Adam (2013) – fuse box diagram – engine compartment
Fuse Circuit
1 —
2 Exterior mirror switch
3 Body control module
4 Foldable sunroof, Chassis control module
5 ABS
6 Daytime running light left
7 —
8 Body control module
9 Vehicle battery sensor
10 Headlamp leveling, TPMS, foldable sunroof
11 Rear wiper
12 Window defog
13 Daytime running light right
14 Mirror defog
15 —
16 Chassis control module, LPG system
17 Interior mirror
18 Engine control module
19 Fuel pump
20 —
21 Injection coil
22 —
23 Injection system
24 Washer system
25 Lighting system
26 Engine control module
27 —
28 Engine control module
29 Engine control module
30 —
31 Left headlamp
32 Right headlamp
33 Engine control module
34 Horn
35 Clutch
36 —

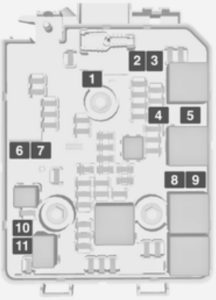

Opel Adam (2015) – fuse box – engine compartment
Opel Adam (2015) – fuse box – engine compartment
Fuse Circuit
1 ABS pump
2 Front wiper
3 Blower
4 Instrument panel
5 —
6 —
7 Electrical vacuum pump
8 Cooling fan low
9 Cooling fan high
10 —
11 Starter

Instrument panel fuse box

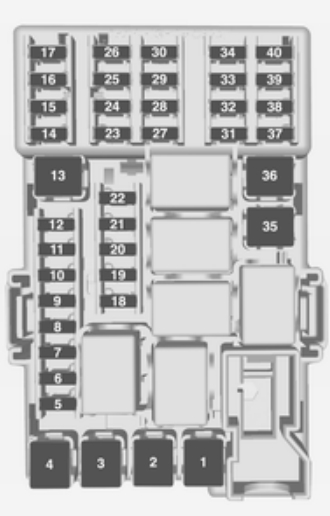

Opel Adam-2013 - fuse box - instrument panel
Opel Adam-2013 – fuse box – instrument panel
Fuse Circuit
1 —
2 —
3 Power windows
4 Voltage transformer
5 Body control module 1
6 Body control module 2
7 Body control module 3
8 Body control module 4
9 Body control module 5
10 Body control module 6
11 Body control module 7
12 Body control module 8
13 —
14 Tailgate
15 Diagnostic connector
16 Data link connection
17 Ignition
18 Air conditioning system
19 Audio amplifier
20 Parking assist
21 Brake switch
22 Audio system
23 Display
24 —
25 Onstar
26 Instrument panel
27 Seat heating, driver
28 —
29 —
30 Instrument panel
31 Horn
32 Seat heating, passenger
33 Heated steering wheel
34 —
35 —
36 —
37 Rear wiper
38 Cigarette lighter
39 —
40 —

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
