Opel Antara (from 2011) – fuse box diagram
Years of production: 2011, 2012, 2013, 2014, 2015, 2016

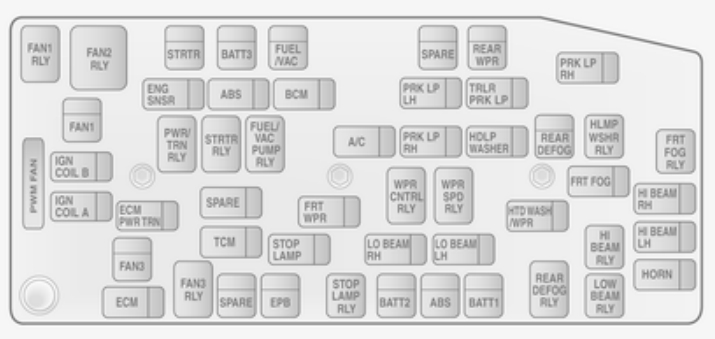

Fuse box in engine compartment
| Fuse | Circuit |
| ABS | Anti-lock Brake System |
| A/C | Climate control, air conditioning system |
| BATT1 | Instrument panel fuse box |
| BATT2 | Instrument panel fuse box |
| BATT3 | Instrument panel fuse box |
| BCM | Body Control Module |
| ECM | Engine Control Module |
| ECM PWR TRN | Engine Control Module, Powertrain |
| ENG SNSR | Engine sensors |
| EPB | Electrical parking brake |
| FAN1 | Cooling fan |
| FAN3 | Cooling fan |
| FRT FOG | Front fog lights |
| FRT WPR | Front wiper |
| FUEL/VAC | Fuel pump, vacuum pump |
| HDLP WASHER | Headlight washer |
| HI BEAM LH | High beam (lefthand) |
| HI BEAM RH | High beam (righthand) |
| HORN | Horn |
| HTD WASH/MIR | Heated washer fluid, heated exterior mirrors |
| IGN COIL A | Ignition coil |
| IGN COIL B | Ignition coil |
| LO BEAM LH | Low beam (lefthand) |
| LO BEAM RH | Low beam (righthand) |
| PRK LP LH | Parking light (lefthand) |
| PRK LP RH | Parking light (righthand) |
| PWM FAN | Pulse width modulation fan |
| REAR DEFOG | Heated rear window |
| REAR WPR | Rear wiper |
| SPARE | — |
| DTOP LAMP | Brake lights |
| STRTR | Starter |
| TCM | Transmission Control Module |
| TRLP PRL LP | Trailer parking lights |

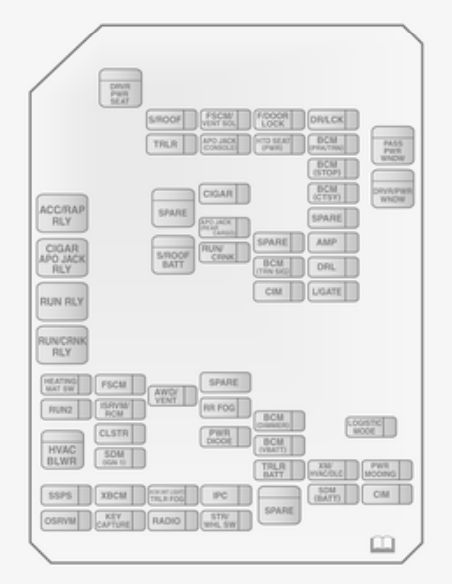

Instrument panel fuse box
| Fuse | Circuit |
| AMP | Amplifier |
| APO JACK (CONSOLE) | Power outlet (centre console) |
| APO JACK (REAR CARGO) | Power outlet (load compartment) |
| AWD/VENT | All-wheel drive, ventilation |
| BCM (CTSY) | Courtesy lights |
| BCM (DIMMER) | Instrument illumination |
| BCM (INT LIGHT TRLR FOG) | Interior lights, trailer fog light |
| BCM (PRK/TRN) | Parking lights, turn signals |
| BCM (STOP) | Brake lights |
| BCM (TRN SIG) | Turn signals |
| BCM (VBATT) | Battery voltage |
| CIGAR | Cigarette lighter |
| CIM | Communications Integration Module |
| CLSTR | Instrument cluster |
| DRL | Daytime running lights |
| DR/LCK | Driver door lock |
| DRVR PWR SEAT | Driver power seat |
| DRV/PWR WNDW | Driver power window |
| F/DOOR LOCK | Fuel filler flap |
| FRT WSR | Front washer |
| FSCM | Fuel system |
| FSCM/VENT | Fuel system, vent solenoid |
| HEATING MAT SW | Heating mat switch |
| HTD SEAT PWR | Seat heating |
| HVAC BLWR | Climate control, air conditioning fan |
| IPC | Instrument panel cluster |
| ISRVM/RCM | Interior mirror, remote compass module |
| KEY CAPTURE | Key capture |
| L/GATE | Tailgate |
| LOGISTIC MODE | Logistic mode |
| OSRVM | Exterior mirrors |
| PASS PWR WNDW | Passenger power window |
| PWR DIODE | Power diode |
| PWR MODING | Power moding |
| RADIO | Radio |
| RR FOG | Heated rear window |
| RUN 2 | Power battery key on run |
| RUN/CRNK | Run crank |
| SDM (BATT) | Safety Diagnosis Module (Battery) |
| SDM (IGN 1) | Safety Diagnosis Module (Ignition) |
| SPARE | — |
| S/ROOF | Sunroof |
| S/ROOF BATT | Sunroof battery |
| SSPS | Power steering |
| STR/WHL SW | Steering wheel |
| TRLR | Trailer |
| TRLR BATT | Trailer battery |
| XBCM | Export Body Control Module |
| XM/HVAC/DLC | XM satellite radio, climate control, data link connection |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
