Opel Corsa D (2010 – 2014) – fuse box diagram
Years: 2010, 2011, 2012, 2013, 2014

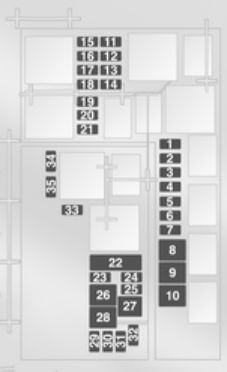

Engine compartment fuse box
The fuse box is in the front left of the engine compartment. Disengage the cover, lift it upwards and remove..
| Number | Circuit |
| 1 | Starter |
| 2 | Air conditioning system |
| 3 | Diesel fuel filter heater |
| 4 | Horn |
| 5 | Manual transmission automated, automatic transmission |
| 6 | Engine control unit |
| 7 | Fog lights |
| 8 | Engine cooling |
| 9 | Engine cooling |
| 10 | Automated manual transmission |
| 11 | Glow plugs, ignition system |
| 12 | Headlight range adjustment, Adaptive forward lighting |
| 13 | Air conditioning system |
| 14 | Automated manual transmission |
| 15 | High beam (right) |
| 16 | High beam (left) |
| 17 | Main relay |
| 18 | Engine control unit |
| 19 | Airbags |
| 20 | Main relay |
| 21 | Main relay |
| 22 | Central control unit |
| 23 | Tyre repair kit |
| 24 | Fuel pump |
| 25 | ABS |
| 26 | Heated rear window |
| 27 | ABS |
| 28 | Interior fan |
| 29 | Cigarette lighter |
| 30 | Air conditioning system |
| 31 | Power window (left) |
| 32 | Power window (right) |
| 33 | Heated exterior mirrors |
| 34 | — |
| 35 | — |
Instrument panel fuse box
The fuse box is behind the the light switch. Pull the top edge of the panel and fold down.
In right-hand drive vehicles, the fuse box is located behind a cover in the glovebox. Open the glovebox and remove the cover. To close, first put on the cover, then lock it into position.
| Number | Circuit |
| 1 | — |
| 2 | Instruments, info display |
| 3 | Radio |
| 4 | Ignition switch |
| 5 | Windscreen washer system |
| 6 | Central locking system, tailgate |
| 7 | Central locking system |
| 8 | — |
| 9 | Courtesy light |
| 10 | Electrical power steering |
| 11 | Light switch, brake light |
| 12 | ABS, brake light |
| 13 | Heated steering wheel |
| 14 | Park assist, rain sensor, interior mirror |
Load compartment fuse box
The fuse box is on the left side of the load compartment behind a cover. Remove the cover.
| Number | Circuit |
| 1 | Adaptive forward lighting |
| 2 | — |
| 3 | Seat heater (left) |
| 4 | Seat heater (right) |
| 5 | — |
| 6 | — |
| 7 | — |
| 8 | Rear carrier system, towing equipment |
| 9 | — |
| 10 | — |
| 11 | — |
| 12 | — |
| 13 | — |
| 14 | — |
| 15 | Rear carrier system, towing equipment |
| 16 | — |
| 17 | Sunroof |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market..
