Opel Corsa E (2015) – fuse box diagram
Years: 2015

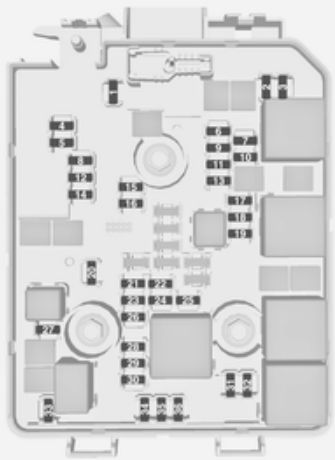

Engine compartment fuse box
he fuse box is in the front left of the engine compartment. Disengage the cover and fold it upwards until it stops. Remove the cover vertically upwards.
| Number | Circuit |
| 1 | Trailer interface module |
| 2 | Exterior mirror switch |
| 3 | Battery sensor |
| 4 | Chassis control module |
| 5 | ABS |
| 6 | Daytime running light left |
| 7 | — |
| 8 | Transmission control module |
| 9 | Body control module |
| 10 | Headlamp levelling/TPMS/ Trailer interface module |
| 11 | Rear wiper |
| 12 | Window defog |
| 13 | Daytime running light right |
| 14 | Mirror defog |
| 15 | — |
| 16 | Chassis control module/Pump kit |
| 17 | Interior mirror |
| 18 | Engine control module |
| 19 | Fuel pump |
| 20 | — |
| 21 | Injection coil |
| 22 | — |
| 23 | Injection system |
| 24 | Washer system |
| 25 | Lighting system |
| 26 | Engine control module |
| 27 | Heater shut off valve |
| 28 | Engine control module |
| 29 | Engine control module |
| 30 | Engine control module |
| 31 | Left headlamp |
| 32 | Right headlamp |
| 33 | Engine control module |
| 34 | Horn |
| 35 | Clutch |
| 36 | Front fog lights |

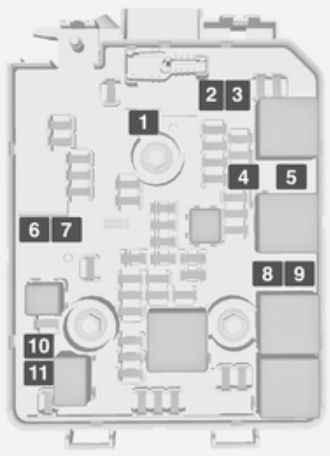

| Number | Circuit |
| 1 | ABS pump |
| 2 | Front wiper |
| 3 | Blower |
| 4 | Instrument panel |
| 5 | — |
| 6 | Diesel fuel heater |
| 7 | Transmission |
| 8 | Cooling fan low |
| 9 | Cooling fan high |
| 10 | Cooling fan |
| 11 | Starter |

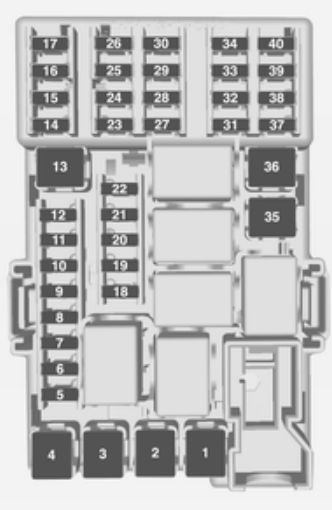

Instrument panel fuse box
Left-hand drive vehicles
The fuse box is behind the light switch in the instrument panel. Hold the handle, then pull and fold down the light switch.
Right-hand drive vehicles
The fuse box is located behind a cover in the glovebox. Open the glovebox, then open the cover and fold it down
| Number | Circuit |
| 1 | — |
| 2 | — |
| 3 | Power windows |
| 4 | Voltage transformer |
| 5 | Body control module 1 |
| 6 | Body control module 2 |
| 7 | Body control module 3 |
| 8 | Body control module 4 |
| 9 | Body control module 5 |
| 10 | Body control module 6 |
| 11 | Body control module 7 |
| 12 | Body control module 8 |
| 13 | — |
| 14 | Tailgate |
| 15 | Airbag system |
| 16 | Data link connection |
| 17 | Ignition |
| 18 | Air conditioning system |
| 19 | Sunroof |
| 20 | Parking assist/Rain sensor/ Front camera |
| 21 | Brake switch |
| 22 | Audio system |
| 23 | Display |
| 24 | — |
| 25 | Auxiliary jack |
| 26 | Instrument panel |
| 27 | Seat heating, driver |
| 28 | — |
| 29 | — |
| 30 | Instrument panel/Seat heating/ FlexDock |
| 31 | Horn |
| 32 | Seat heating, passenger |
| 33 | Heated steering wheel |
| 34 | — |
| 35 | Tyre repair kit |
| 36 | — |
| 37 | Rear wiper |
| 38 | Cigarette lighter |
| 39 | Power windows/Sunroof/Auto‐ matik transmission display |
| 40 | — |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
