Opel KARL (from 2015)- fuse box diagram
Years: 2015, 2016

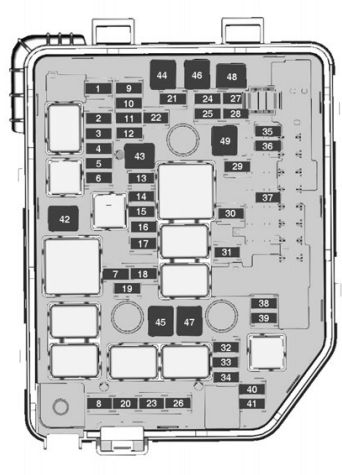

Engine compartment fuse block
The fuse box is in the front left of the engine compartment. Disengage the cover, lift it upwards and remove.
| Number | Circuit |
| 1 | Tailgate latch |
| 2 | — |
| 3 | Rear demist |
| 4 | Outside rear-view mirror heater |
| 5 | Sunroof |
| 6 | Continuously Variable transmission control module |
| 7 | Mass air flow sensor |
| 8 | Auxiliary heater pump |
| 9 | Anti-lock brake system valve |
| 10 | Regulated voltage control |
| 11 | Rear view camera |
| 12 | — |
| 13 | — |
| 14 | Engine control module/ Transmission control module |
| 15 | Fuel injection control module/Starter |
| 16 | Fuel pump moto |
| 17 | Engine control module 1 |
| 18 | Engine control module 2 |
| 19 | Injector, Ignition |
| 20 | Air conditioning system |
| 21 | Intelligent battery sensor |
| 22 | Electric steering column lock |
| 23 | Cooling fan low |
| 24 | – |
| 25 | Outside rear-view mirror switch |
| 26 | Engine control module/ Automated manual gearbox module |
| 27 | Canister vent solenoid |
| 28 | Brake pedal switch |
| 29 | Auxiliary occupant sensing |
| 30 | Headlight levelling motor |
| 31 | Horn |
| 32 | Front fog lamp |
| 33 | Main beam left |
| 34 | Main beam right |
| 35 | — |
| 36 | Rear wiper motor |
| 37 | Cornering lamp left |
| 38 | Washer pump motor |
| 39 | Cornering lamp right |
| 40 | — |
| 41 | — |
| 42 | Starter 2 |
| 43 | In-panel bussed electric centre |
| 44 | Automated manual gearbox |
| 45 | Starter 1 |
| 46 | Anti-lock brake system pump |
| 47 | Cooling fan hi |
| 48 | Front wiper motor |
| 49 | In-panel bussed electric centre accessory/RAP power |

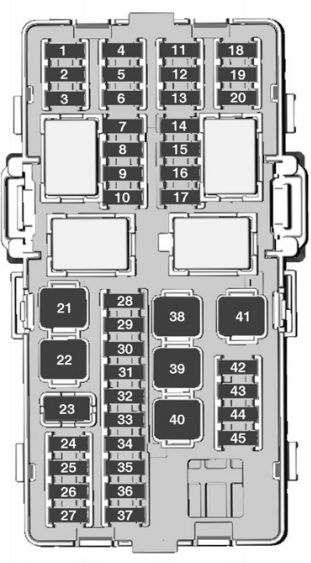

Instrument panel fuse block
In left-hand drive vehicles, the fuse box is behind the storage compartment in the instrument panel.
Open compartment, compress the locking tabs, fold compartment down and remove.
| Number | Circuit |
| 1 | Onstar |
| 2 | HVAC module |
| 3 | Instrument panel cluster |
| 4 | Continuously Variable transmission control module |
| 5 | Radio |
| 6 | Body control module 1 (CVT Stop & Start) |
| 7 | Side blind spot alert/Rear parking assist |
| 8 | Data link connection |
| 9 | Electric steering column lock |
| 10 | Sensing and Diagnostic module |
| 11 | DC-DC converter |
| 12 | — |
| 13 | Electronic toll collection system |
| 14 | Linear power module |
| 15 | Passive entry & passive start |
| 16 | Discrete logic ignition switch (Non CVT stop&start) |
| 17 | Front collision avoidance |
| 18 | Instrument panel cluster |
| 19 | Reflected LED Alert Display |
| 20 | Headlight levelling switch |
| 21 | Front power window |
| 22 | Rear power window |
| 23 | — |
| 24 | Automated manual gearbox module |
| 25 | Auxiliary power socket |
| 26 | Sunroof |
| 27 | — |
| 28 | Body control module 8 |
| 29 | Body control module 7 |
| 30 | Body control module 6 |
| 31 | Body control module 5 |
| 32 | Body control module 4 |
| 33 | Body control module 3 |
| 34 | Body control module 2 (Non CVT Stop & Start) |
| 35 | Body control module 1 (Non CVT Stop & Start) |
| 36 | Discrete logic ignition switch (CVT stop&start) |
| 37 | Steering wheel controls backlighting |
| 38 | — |
| 39 | Logistic/DC-DC converter |
| 40 | Driver express power window |
| 41 | Blower motor |
| 42 | Front heated seat |
| 43 | HVAC module |
| 44 | Heated steering whee |
| 45 | Body control module 2 (CVT Stop & Start) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
