Opel Movano (2010 – 2017) – fuse box diagram
Year of production: 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
The Instrument Panel Fuse Panel

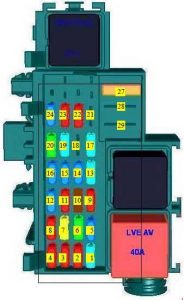

Opel Movano – fuse box diagram – instrument panel
Number
A
Description
1
10
Infotainment system, seat heating, (Relais servitude 1. Relais moteur tournant)
2
10
Power outlet 1
3
10
Cigarette lighter
4
10
Power outlet 2
5
5
Instrument panel
6
30
Central locking (UCE Habitacle (CPE, SUPCPE), BFR)
7
25
Turn signals, rear fog lights, body control module (UCE Habitacle + Batsecurite)
8
5
Diagnostic connector
9
—
—
10
5
ABS, Electronic Stability Program
11
10
Interior lights, brake lights
12
5
Body control module
13
15
Brake light
14
5
Body control module, power windows, air conditioning
15
20
Left heated rear window
16
20
Right heated rear window
17
15
Windscreen washer (Commandes sous volant)
18
5
Electronic immobiliser
19
15
Heated seats (BFRH2, ADPCNC, adaptation compiementaire)
20
—
—
21
10
Cornering lights
22
10
Infotainment system, seat heating, vehicle display screen, audio connections, alarm
23
5
Hands-free connection
24
10
Tachograph
25
—
– (emplacement diode)
26
—
– (emplacement diode)
27
40
Climate control fan
28
10
Additional adaptations (BFRH2, relais ACC deleste, relais servitude 1)
29
40
Power windows, body control module
Fuse box in the engine compartment

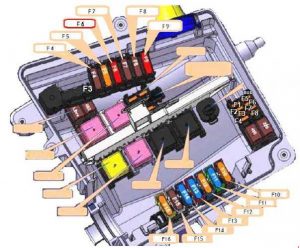

Opel Movano – fuse box diagram – engine compartment
Number
A
Description
F1
—
—
F2
—
—
F3
50
BUS X62
F4
40
ABS ECU
F5
50
Additional heating relay 1
F6
50
Purpose-built body conversion, X62 BUS
F7
70
Additional heating relay 2
F8
70
Rear lights, passenger compartment fuse-relay box, diesel heater resistance
F9
70
Passenger compartment relay and fuse box
F10
50
Motor fan relay 3, motor fan relays (rating depending on vehicle spec.)
40
F11
40
Motor fan speed Relay 1,Motor fan speed Relay 2 (rating depending on vehicle spec.)
50
60
F12
40
Starter motor
F13
60
Heating interface unit
F14
60
Heating interface unit
F15
70
Diesel glow plug relay unit
F16
40
Gearbox electro pump unit relay
50
Fuse box 2
BUS FUSE PLATE (260BA)
F1
5
Lighting control relay power supply (GRUAU) Front and rear lighting
F2
5
Lighting control relay power supply (GRUAU) Individual lighting (X81)
F3
15
Relay 1155 power supply (70A + load shed accessory relay)
F4
25
Relay 1155 power supply (70A + BCM battery relay)
F5
10
Power supply for multimedia display from GRUAU kits
F6
5
Door sill electronic control unit power supply
F7
—
—
F8
—
—

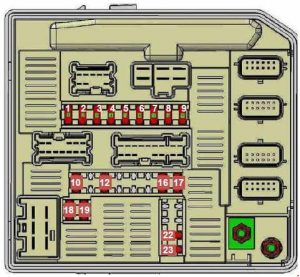

Opel Movano – fuse box diagram – engine compartment
Number
A
Description
F1
7,5
Right side light
F2
7,5
Left side light
F3
10
Right dipped beam lights
F4
10
Left dipped beam lights
F5
20
Fog lamps
F6
10
Left main beam light
F7
10
Right main beam light
F8
25
ABS power supply
F9
30
Windscreen wiper
F10
10
Airbag PIS (primary ignition supply)
F11
—
—
F12
20
Gearbox ECU power supply (Front wheel drive)
F13
—
—
F14
—
—
F15
—
—
F16
5
Gearbox PIS (primary ignition supply)
F17
7,5
Passenger compartment PIS (primary ignition supply)
F18
5
Injection ECU/diesel heater relay
F19
10
Rear running lights PIS (primary ignition supply)
F20
—
—
F21
—
—
F22
10
Air conditioning (compressor) I
F23
5
Defrosting (relay control)

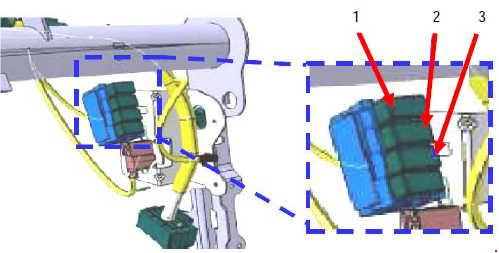

The optional fuse box
Located on the right-hand side (left- and right-hand drive). It is attached to the right-hand flange of the dashboard beam.

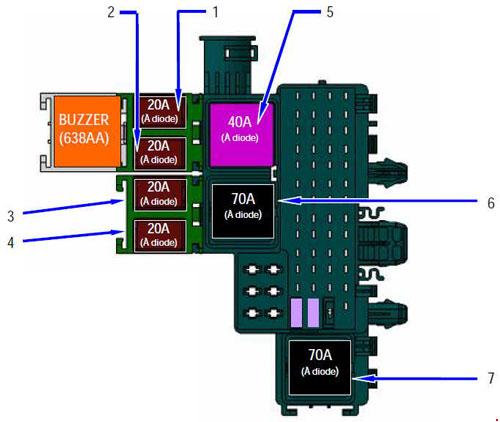

Opel Movano – fuse box diagram – optional fuse box
Number
A
Description
1
20
Sliding door
2
20
Boot lid
3
20
Bus heated seat
4
20
Bus ESP
5
40
A/C info
6
70
BCM + battery feed
7
70
+ load shed accessory feed
The relay box for the KPD option is located in the right-hand side of the dashboard.
Opel Movano – fuse box diagram – optional fuse box
Number
A
Description
1
20
+ 12 V load shed current distribution power supply
2
20
Engine running information
3
20
Heated seat
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
