Opel Vectra (2002 – 2008) – fuse box diagram
Years od production: 2002, 2003, 2004, 2005, 2006, 2007, 2008
Fusebox in passenger compartment
The fusebox is on the left, on the outside of the instrum ent panel. Open door. Disengage cover by pulling firmly and remove.
| Number | Circuit | Rating |
| 1 | Infotainment system, radio transport fuse | 20 |
| 2 | Interior fan, heating, air conditioning system | 7,5 |
| 3 | Sunroof | 20 |
| 4 | — | — |
| 5 | Door module control unit | 7,5 |
| 6 | Brake light | 7,5 |
| 7 | Bodywork module control unit | 30 |
| 8 | Front passenger’s door module control unit | 30 |
| 9 | Central control unit | 7,5 |
| 10 | Steering column module control unit | 7,5 |
| 11 | Diagnostics plug | 7,5 |
| 12 | Battery overload protection | 10 |
| 13 | — | — |
| 14 | — | — |
| 15 | Door module control unit | 30 |
| 16 | — | — |
| 17 | Instruments, information display | 15 |
| 18 | — | — |
| 19 | — | — |
| 20 | Yaw rate sensor (ESP®Plus) | 7,5 |
| 21 | — | — |
| 22 | Cigarette lighter | 30 |
| 23 | Interior fan, air conditioning, Electronic Climate Control | 30 |
| 40 | ||
| 24 | — | — |
| 25 | Heating, air conditioning system | 7,5 |
| 26 | Instrum ents, informa tion display | 7,5 |
Fusebox in luggage compartment
The fusebox is located on the left side of the luggage compartment, in the stowage compartment.
Saloon / Hatch:
Press the latch down a nd open the cover
Estate:
Press both latches down and open the cover and interior trim.
| Number | Circuit | Rating |
| 1 | — | — |
| 2 | — | — |
| 3 | Electric seat adjustment, driver’s seat | 40 |
| 4 | Heated rear window | 40 |
| 5 | Electric seat adjustment, front passenger’s seat | 40 |
| 6 | Electric window operation, right rear | 30 |
| 7 | Electric window operation, left rear | 30 |
| 8 | Seat heating, rear right | 15 |
| 9 | Horn, Vauxhall alarm system | 15 |
| 10 | Fuel pump | 20 |
| 11 | Battery voltage | 25 |
| 12 | Seat heating, rear left | 15 |
| 13 | Towing equipment | 20 |
| 14 | Tailgate wiper | 15 |
| 15 | Heated seats, seat climate control, left front | 15 |
| 16 | Seat heating, front right | 15 |
| 17 | Accessory socket | 15 |
| 18 | Tailgate locking, Estate | 30 |
| 19 | Terminal 30, Twin Audio | 10 |
| 20 | Tank flap locking | 7,5 |
| 21 | Ultrasonic sensor, Vauxhall alarm system | 5 |
| 22 | Electrically op erated tailgate | 30 |
| 23 | Glass breakage sensor (Vauxhall alarm system ) | 7,5 |
| 24 | Battery voltage | 25 |
| 25 | Electronic chassis | 10 |
| 26 | Terminal 15 (starter switch), Twin Audio | 25 |
| 27 | Seat occupancy recognition, tyre pressure monitoring system, rain sensor, air conditioning system | 5 |
| 28 | Parking distance sensors | 7,5 |
| 29 | — | — |

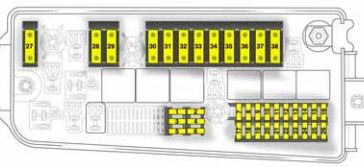

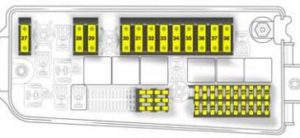

Fusebox in engine compartment
The fusebox is in the box at the front of the engine compartment.
Disenga ge the bar at the front of the cover of fusebox and swing it upwards.
| Number | Circuit | Rating |
| 1 | Engine electronics, transmission electronics | 20 |
| 2 | Starter | 25 |
| 3 | Horn | 20 |
| 4 | Air conditioning system , Electronic Climate Control | 10 |
| 5 | Wind screen wash system, front and rear | 15 |
| 6 | Diesel fuel filter heating | 30 |
| 7 | Central control unit, ESP®Plus | 15 |
| 8 | Headlights, windscreen wash nozzles | 10 |
| 9 | Power steering, brake servo | 7,5 |
| 10 | Adaptive Forward Lighting | 10 |
| 11 | Windscreen wiper | 30 |
| 12 | Central control unit, ESP®Plus | 7,5 |
| 13 | Headlight wash system | 30 |
| 14 | Oxygen sensor | 10 |
| 15 | Engine control unit* | 10 |
| 16 | ABS | 5 |
| 17 | — | — |
| 18 | — | — |
| 19 | Adaptive Forward Lighting, headlight range adjustment | 15 |
| 5 | ||
| 20 | Headlight range adjustment | 5 |
| 21 | — | — |
| 22 | Windscreen wiper | 30 |
| 23 | Auxiliary heating | 20 |
| 24 | Battery voltage, terminal 30 | 30 |
| 25 | Battery voltage, terminal 30 | 30 |
| 26 | — | — |
| 27 | Easytronic | 30 |
| 28 | Tailgate module control unit | 60 |
| 29 | ABS | 40 |
| 30 | Tailgate module control unit | 60 |
| 31 | Vehicle interior module control unit | 60 |
| 32 | ABS | 40 |
| 33 | Vehicle interior module control unit | 60 |
| 34 | Tailgate module control unit | 60 |
| 35 | Cooling fan** | 30 |
| 40 | ||
| 36 | Cooling fan ** | 20 |
| 30 | ||
| Brake servo | 40 | |
| 37 | Adaptive Forw ard Lighting: Slot for changing to symmetrical dipped beam for driving abroad | Insert any maxifuse |
| 38 | — | — |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
