Peugeot 108 (from 2014) – fuse box diagram
Year of production: 2014, 2015, 2016

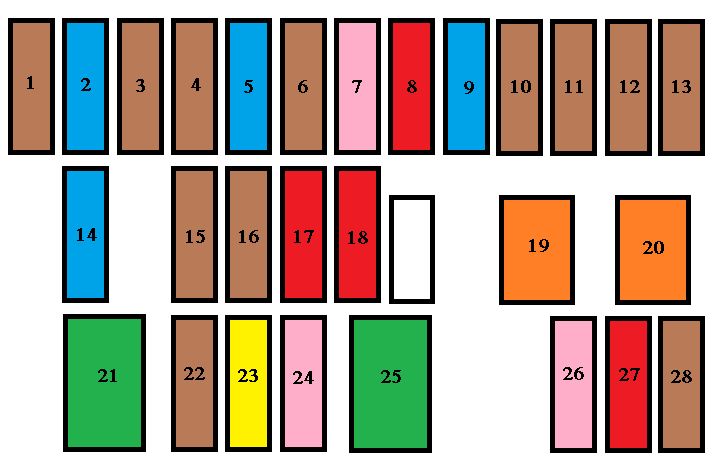

Dashboard fuses
The fusebox is located below the dashboard (driver’s side).
| Fuse | Fuse rating [A] | Function |
| 1 | 5 | Fuel injection system – Audio system – VSC system |
| 2 | 15 | Front and rear screenwash |
| 3 | 5 | Main distribution unit – Instrument panel – Display screen – Air conditioning – Heated rear screen and door mirror heating – Electric fabric roof – Audio system |
| 4 | 5 | Electric power steering – Stop & Start |
| 5 | 15 | Rear wiper |
| 6 | 5 | Cooling fan – ABS system ESP – VSC system |
| 7 | 25 | Front wiper |
| 8 | 10 | Heated door mirrors |
| 9 | 15 | 12 V socket (120 W max) |
| 10 | 7,5 | Door mirrors – Audio system – Stop & Start – Instrument panel – Display screen |
| 11 | 5 | Steering lock – Fuel injection system – Electronic gearbox |
| 12 | 7,5 | Airbags |
| 13 | 5 | Instrument panel – Display Screen – Stop & Start |
| 14 | 15** | Steering – Fuel injection system – Brake lamps |
| 7,5* | ||
| 15 | 7,5** | Fuel injection system – Stop & Start |
| 10* | ||
| 16 | 7,5 | Engine diagnosis |
| 17 | 10 | Brake lamps – Third brake lamp – Fuel injection system -ABS system – VSC system – Electronic gearbox – Keyless Entry and Starting system |
| 18 | 10 | Sidelamps – Number plate lamps – Rear foglamp – Front foglamps – Rear lamps – Lighting dimmer |
| 19 | 40 | Air conditioning |
| 20 | 40 | Air conditioning – Engine self-diagnosis – Sidelamps – Number plate lamps – Rear foglamp – Front foglamps – Rear lamps – Lighting dimmer – Brake lamps – Third brake lamp – Fuel injection system – ABS system – VSC system – Electronic gearbox – “Keyless Entry and Starting” system – Electric windows |
| 21 | 30 | Fuel injection system – Stop & Start – Main distribution unit |
| 22** | 7,5 | Fuel injection system |
| 23** | 20 | Fuel injection system – Stop & Start |
| 24 | 25 | Main distribution unit |
| 25 | 30 | Electric windows |
| 26 | 25 | Electric windows |
| 27 | 10 | Air conditioning |
| 28 | 5 | Rear foglamp |
| * VTi 82 engine ** VTi 68 engine |
||

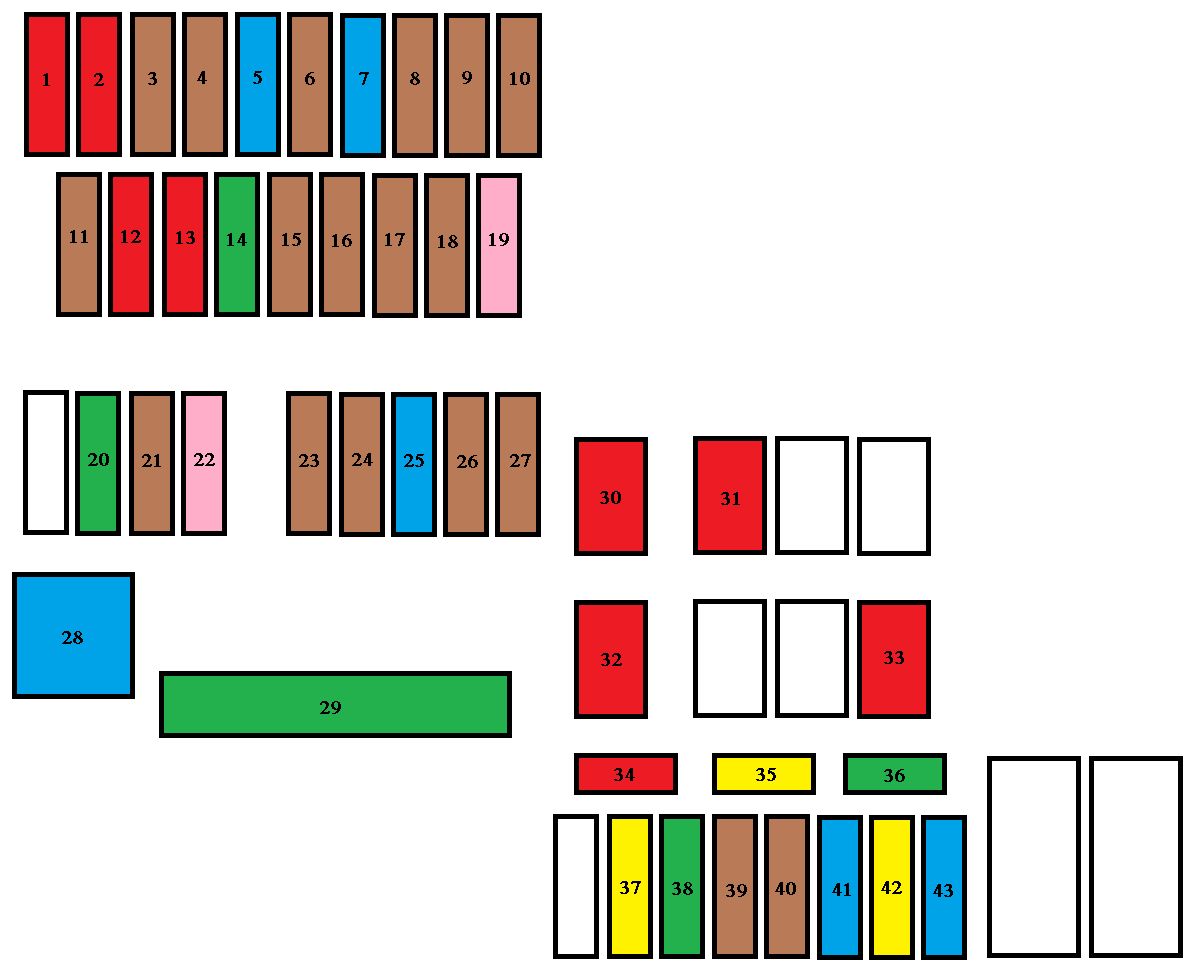

Fuses under the bonnet
| Fuse | Fuse rating [A] | Functions |
| 1 | 10 | Right hand dipped beam |
| 2 | 10 | Left hand dipped beam – Headlamp adjustment |
| 3 | 7,5 | Right hand main beam |
| 4 | 7,5 | Left hand main beam |
| 5* | 15 | Fuel injection system |
| 6* | 7,5 | Fuel injection system |
| 7* | 15 | Fuel injection system |
| 8* | 7,5 | Cooling fan |
| 9 | 7,5 | Air conditioning |
| 10** | 7,5 | Fuel injection system – Brake lamps – Third brake lamp |
| 11 | 5 | Courtesy lamp – Boot lamp |
| 12 | 10 | Direction indicators – Hazard warning lamps – Instrument panel – Display screen |
| 13 | 10 | Horn |
| 14 | 30 | Distribution units |
| 15** | 7,5 | Electronic gearbox |
| 16 | 7,5 | Fuel injection system |
| 17 | 7,5 | Keyless Entry and Starting system |
| 18** | 7,5 | Battery |
| 19 | 25 | Fuel injection system – Cooling fan |
| 20 | 30 | Starter motor |
| 21 | 7,5 | Steering lock |
| 22 | 25 | Front lamps |
| 23 | 7,5 | Fuel injection system |
| 24 | 7,5 | Fuel injection system – Starter motor – Electronic gearbox – Stop & Start |
| 25 | 15 | Audio system – “Keyless Entry and Starting” system |
| 26 | 7,5 | Instrument panel – Display screen |
| 27 | 7,5 | VSC system |
| 28 | 60 | Passenger compartment fusebox |
| 29** | 125 | Heated rear screen and door mirror heating – Electric fabric roof – ABS system – VSC system – Cooling fan – Front foglamps – LED daytime running lamps |
| 30 | 50 | Electronic gearbox |
| 40 | Stop & Start | |
| 31 | 50 | Power steering |
| 32 | 50* | Cooling fan |
| 30 | ||
| 40 | ||
| 33 | 50 | ABS system – VSC system |
| 34 | 10 | Spare fuse |
| 35 | 20 | Spare fuse |
| 36 | 30 | Spare fuse |
| 37 | 20 | Heated rear screen and door mirror heating |
| 38 | 30 | ABS system – VSC system |
| 39 | 7,5 | Front foglamps – Instrument panel – Display screen |
| 40 | 7,5 | LED daytime running lamps |
| 41 | — | Not used |
| 42 | 20 | Electric fabric roof |
| 43 | — | Not used |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
