Peugeot 206 CC (2000 – 2002) – fuse box diagram
Year of production: 2000, 2001, 2002

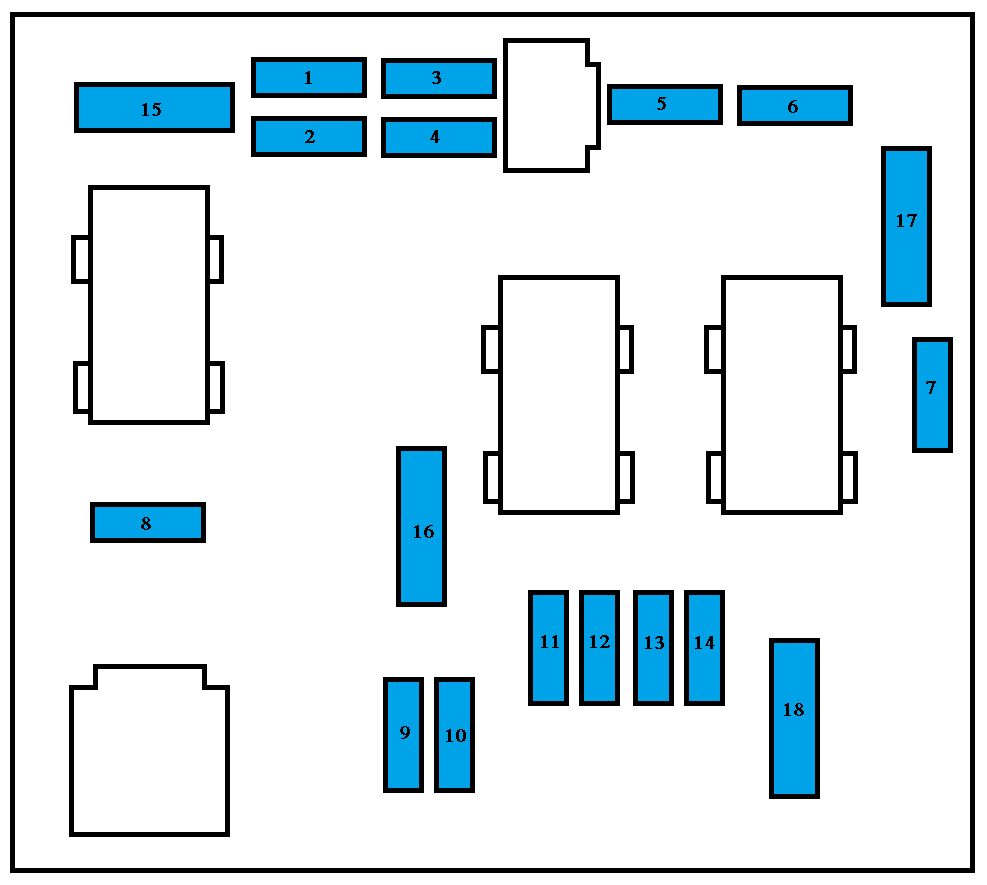

Fuse box in engine compartment
| Fuse | Ampere rating [A] | Circuit protected |
| 1* | 20 | Fan unit |
| 2* | 60 | ABS |
| 3* | 30 | ABS |
| 4* | 70 | Built-in system interface supply |
| 5* | 70 | Built-in system interface supply |
| 6* | — | Not used |
| 7* | 30 | Ignition switch supply |
| 8* | — | Not used |
| * The maxi fuses provide additional protection for the electrical system | ||
| Fuse | Ampere rating [A] | Circuit protected |
| 1 | 10 | Reversing lights switch – Speed sensor |
| 2 | 15 | Canister – Fuel pump |
| 3 | 10 | ABS control unit |
| 4 | 10 | Automatic gearbox control unit – Engine control unit |
| 5 | — | Not used |
| 7 | 20 | Windscreen wash pump |
| 8 | 20 | Fan unit relay – Engine control unit – Engine management solenoid valve |
| 9 | 15 | Left-hand dipped beam |
| 10 | 15 | Right-hand dipped beam |
| 11 | 10 | Left-hand main beam |
| 12 | 15 | Right-hand main beam |
| 13 | 15 | Horns |
| 14 | 10 | Front windscreen wash pumps |
| 15 | 30 | Throttle unit heater – Oxygen sensor – Engine control unit – Air flow meter – Ignition coil – Engine management solenoid valve – Injectors |
| 16 | 30 | Air pump relay |
| 17 | 30 | High and low speed windscreen wiper |
| 18 | 40 | Air conditioning fan |

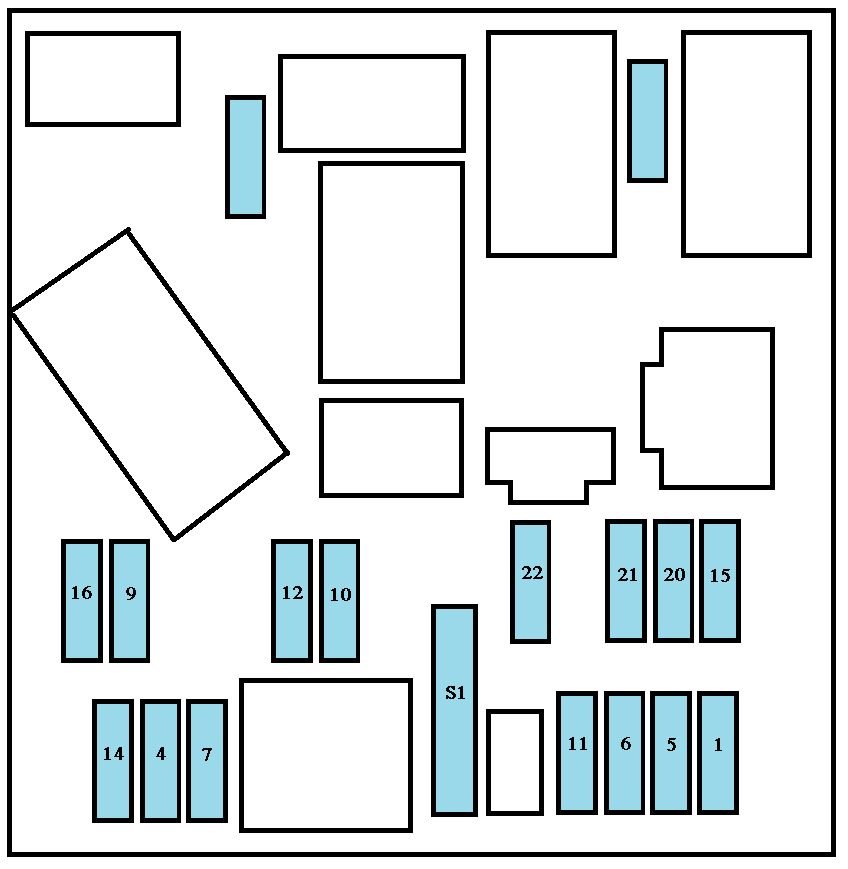

Fuse box (BSI) near steering column
| Fuse | Ampere rating [A] | Circuit protected |
| 1 | 15 | Heated seat – Alarm |
| 4 | 20 | Mulltifunction screen – Navigation control unit- Boot lighting – Audio system – Retractable roof control unit |
| 5 | 15 | Automatic gearbox diagnostics |
| 6 | 10 | Coolant level – Automatic gearbox – Audio system |
| 7 | 15 | Driving school accessories – Alarm fitted as an accessory – Rain detector |
| 9 | 30 | Hydraulic pump |
| 10 | 40 | Driving mirror demisting |
| 11 | 15 | Windscreen wiper |
| 12 | 30 | Front windows |
| 14 | 10 | Engine module – Air bags – Steering wheel stalk |
| 15 | 15 | Instrument panel – Multifunction screen – Navigation control unit – Air conditioning – Audio system |
| 16 | 30 | Locking/unlocking of doors |
| 20 | 10 | Right-hand brake light |
| 21 | 15 | Left-hand brake light – 3rd brake light |
| 22 | 30 | Front courtesy light – Glove box lighting – Lighter |
| S1 | Shunt | PARC shunt |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
