Peugeot 206 SW (2003 – 2010) – fuse box diagram
Year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

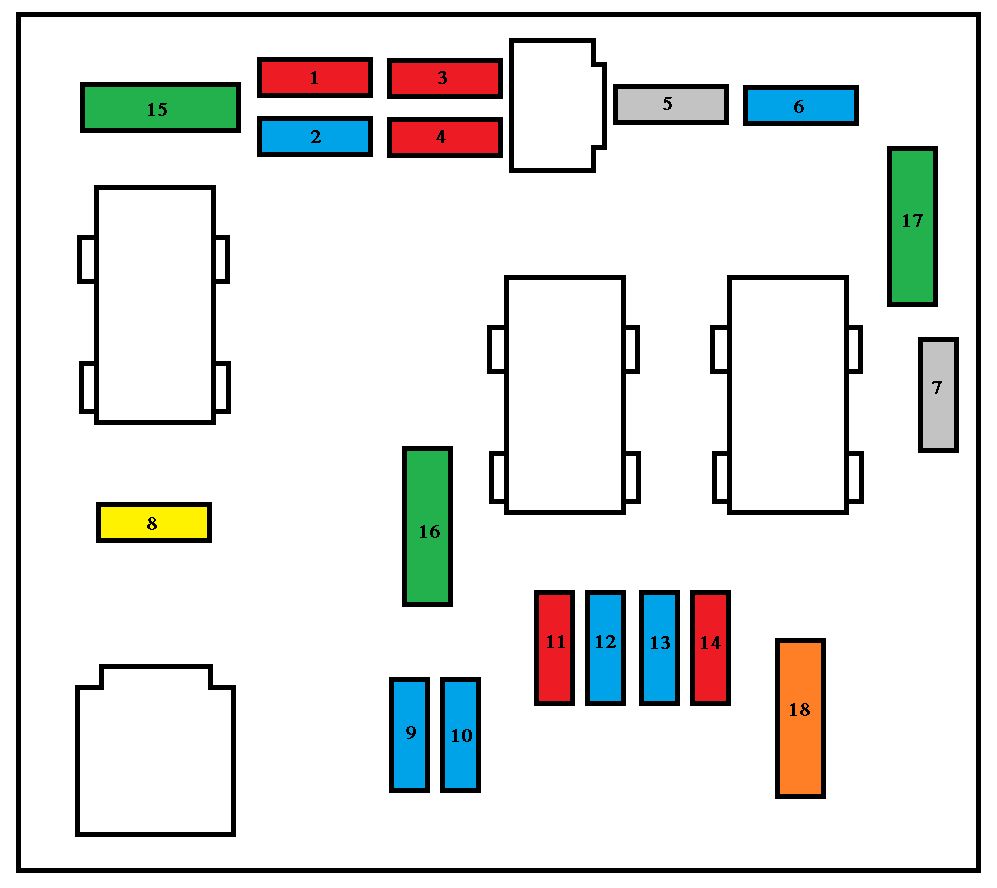

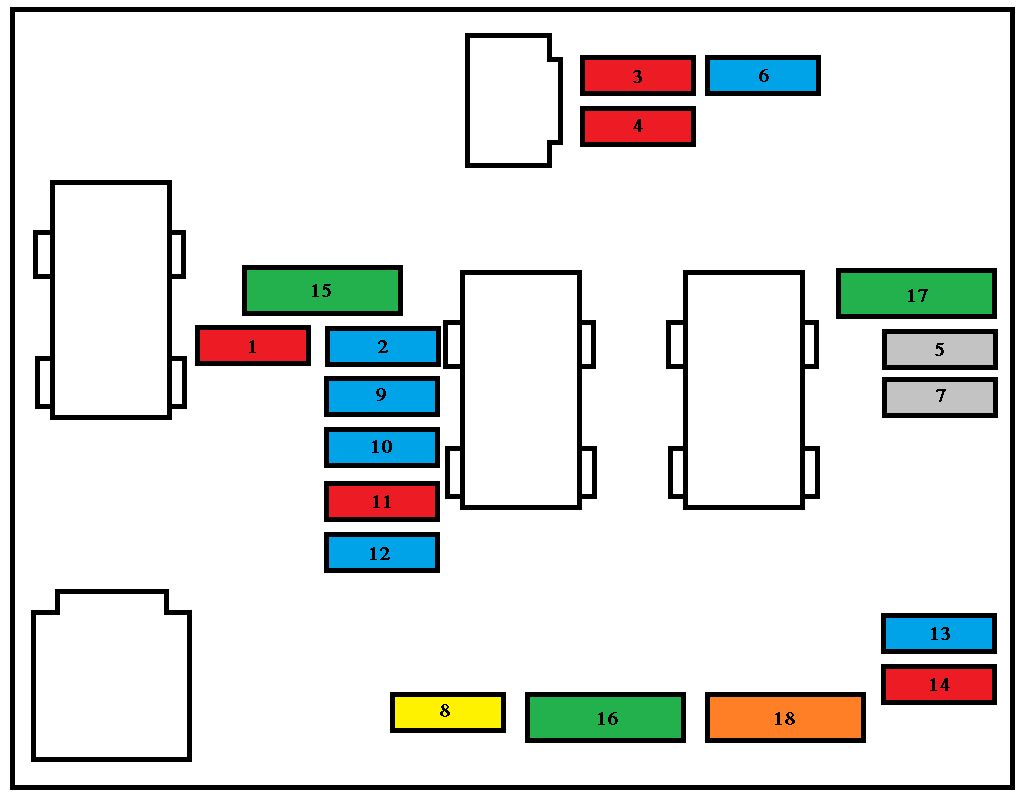

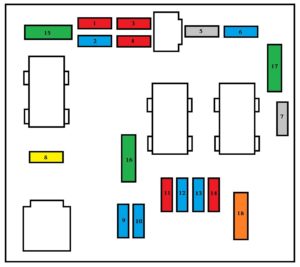

Fuse box in engine compartment
OR
| Fuse | Ampere rating [A] | Functions |
| MF1 | 20/50 | Fan unit without/with air conditioning |
| MF2 | 20/30 | ABS/ESP |
| MF3 | 20/30 | ABS/ESP |
| MF4 | 70 | Built-in systems interface (BSI) supply |
| MF5 | 70 | Built-in systems interface (BSI) supply |
| MF6 | — | Not used |
| MF7 | 30 | Ignition switch supply |
| MF8 | — | Not used |
| The maxi fuses present provide additional protection for the electrical systems. | ||
| Fuse | Ampere rating [A] | Functions |
| 1 | 10 | Pre-heater unit (diesel) – Water in diesel sensor – Reversing lamp switch – Speed sensor – Air flow sensor (diesel) |
| 2 | 15 | Canister electrovalve – Fuel pump |
| 3 | 10 | ABS control unit |
| 4 | 10 | Engine management unit |
| 5 | — | Not used |
| 6 | 15 | Front foglamps |
| 7 | — | Not used |
| 8 | 20 | Fan assembly relay – Engine management unit – Diesel injection pump – Diesel high pressure regulator – Engine management electrovalve |
| 9 | 15 | Left-hand dipped beam |
| 10 | 15 | Right-hand dipped beam |
| 11 | 10 | Left-hand main beam |
| 12 | 15 | Right-hand main beam |
| 13 | 15 | Horn |
| 14 | 10 | Front and rear windscreen wash pumps |
| 15 | 30 | Butterfl y housing heater – Diesel injection pump – Oxygen sensor – Engine management unit – Air flow sensor – Ignition coil – Engine management electrovalve – Diesel heater – Injectors |
| 16 | 30 | Air pump relay |
| 17 | 30 | High and low speed windscreen wiper |
| 18 | 40 | Air conditioning fan |

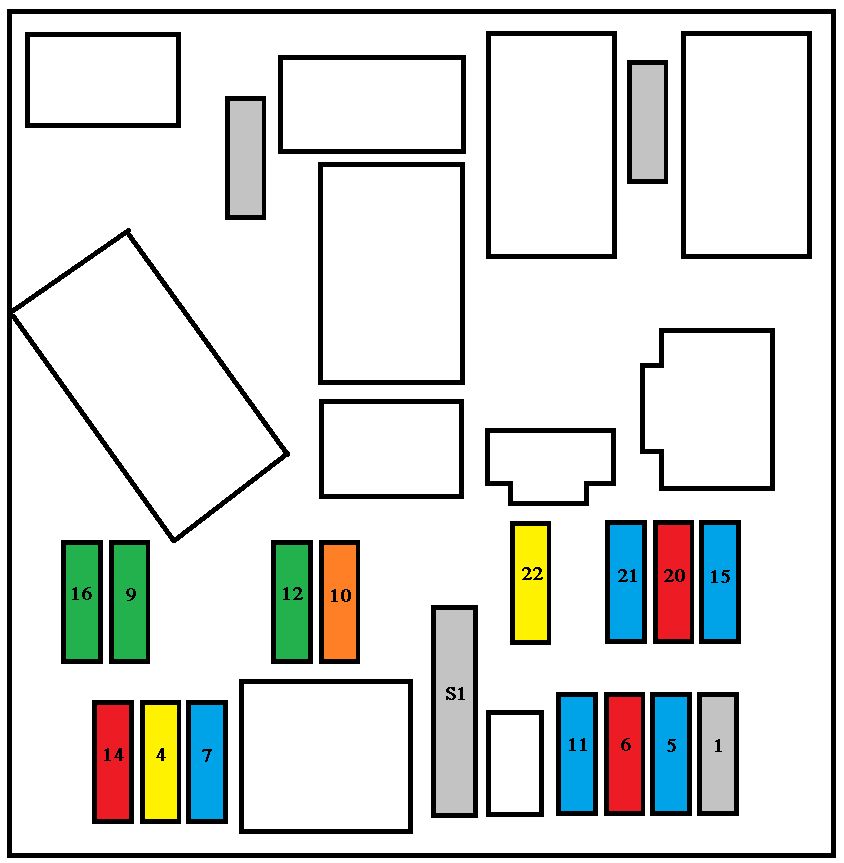

Fuse box under dashboard
| Fuse | Ampere rating [A] | Functions |
| 1 | — | Not used |
| 4 | 20 | Multifunction screen – Boot lamp – Audio system – Steering mounted controls – Trailer |
| 5 | — | Not used |
| 6 | 10 | Coolant level – Audio system |
| 7 | 15 | Driving school accessory – Alarm fitted as an accessory |
| 9 | — | Not used |
| 10 | 40 | Rear screen demisting |
| 11 | 15 | Rear windscreen wiper |
| 12 | 30 | Front electric windows |
| 14 | 10 | Engine fusebox – Airbags – Steering mounted controls – Rain sensor |
| 15 | 15 | Instrument panel – Multifunction screen – Air conditioning – Audio equipment |
| 16 | 30 | Locking/unlocking controls for doors, bonnet and boot |
| 20 | 10 | Right-hand brake lamp |
| 21 | 15 | Left-hand brake lamp – 3rd brake lamp |
| 22 | 30 | Front courtesy lamp – 12 volt accessory socket |
| S1 | Shunt | PARC shunt |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
