Peugeot 3008 Hybrid – fuse box diagram
Year of production: 2011, 2012

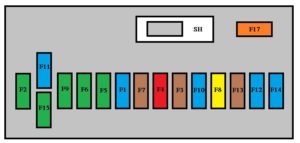

Fascia fuses
The fuse box is placed in the lower section of the fascia (left-hand side).
| Fuse | Ampere rating [A] | Functions |
| F1 | 15 | Rear wiper |
| F2 | — | Not used |
| F3 | 5 | Air bags control unit |
| F4 | 10 | Electrochromatic rear view mirror, air conditioning, switching and protection unit, rear multimedia, traction battery control unit. |
| F5 | 30 | Front one-touch electric windows |
| F6 | 30 | Rear one-touch electric windows |
| F7 | 5 | Front and rear courtesy lamps, map reading lamps, rear reading lamps, sun visor lighting, glove box lighting, centre armrest lighting, boot 12 V relay control. |
| F8 | 20 | Audio equipment, audio/telephone, CD changer, multifunction screen, tyre under-inflation detection, alarm siren, alarm control unit, telematic unit, service module (with Peugeot Connect Media) |
| F9 | 30 | Front 12 V socket, cigarette lighter, rear 12 V socket |
| F10 | 15 | Steering mounted controls |
| F11 | 15 | Low current ignition switch |
| F12 | 15 | Trailer presence, rain/sunshine sensor, supply for fuses F32, F34, F35 |
| F13 | 5 | Engine fusebox, airbag control unit |
| F14 | 15 | Instrument panel, instrument panel screen, supply for fuse F33 |
| F15 | 30 | Locking and deadlocking |
| F17 | 40 | Heated rear screen, supply for fuse F30 |
| SH | — | PARC shunt |
| Fuse | Ampere rating [A] | Functions |
| F29 | — | Not used |
| F30 | 5 | Heated exterior mirrors |
| F31 | 30 | Boot 12 V socket |
| F32 | 5 | Piloted manual gearbox gear lever |
| F33 | 10 | Head-up display, Bluetooth system, air conditioning, retractable screen |
| F34 | 5 | Seat belt warning lamps display |
| F35 | 10 | Parking sensors |
| F36 | 10 | Front heated seats |
| F37 | 20 | Hi-Fi amplifier |
| F38 | 30 | Traction battery control unit |
| F39 | 20 | Panoramic sunroof blind |
| F40 | 10 | Trailer interface, driver’s door control panel |

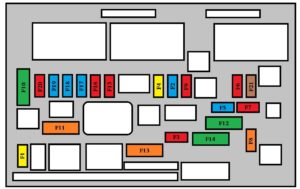

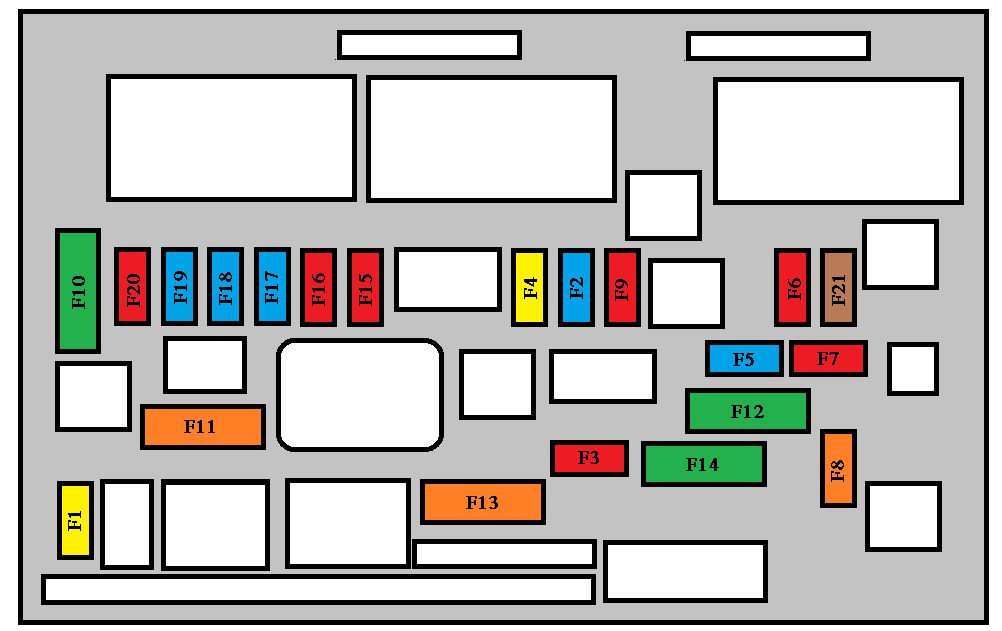

Engine compartment fuses
The fuse box is placed in the engine compartment near the battery (left-hand side).
| Fuse | Ampere rating [A] | Functions |
| F1 | 20 | Engine control unit supply, injection pump and EGR electrovalves, injectors |
| F2 | 15 | Horn |
| F3 | 10 | Front/rear wash-wipe |
| F4 | 10 | Daytime running lamps |
| F5 | 15 | Air fl ow sensor, wiper, sensor heater, hybrid control unit, hybrid selector dial, electronic thermostat, variable valve timing electrovalves, turbo pressure regulation electrovalves (Diesel), engine coolant level sensor (Diesel) |
| F6 | 10 | Diagnostic socket, directional headlamps, particle emission filter pump (Diesel), mirror adjustment control, network interface unit, head-up display |
| F7 | 10 | Power steering control unit, directional headlamps height adjustment motor |
| F8 | 20 | Starter motor control |
| F9 | 10 | Clutch and brake pedal switches |
| F10 | 30 | Heaters (Diesel) |
| F11 | 40 | Air conditioning blower |
| F12 | 30 | Windscreen wipers slow/fast speed |
| F13 | 40 | Built-in systems interface supply (ignition positive) |
| F14 | 30 | Heater radiator water pump |
| F15 | 10 | Right-hand main beam headlamp |
| F16 | 10 | Left-hand main beam headlamp |
| F17 | 15 | Left-hand dipped headlamp |
| F18 | 15 | Right-hand dipped headlamp |
| F19 | 15 | Turbo pressure regulation electrovalve (Diesel) |
| F20 | 10 | Engine coolant level detector (Diesel) |
| F21 | 5 | Cooling fan control |

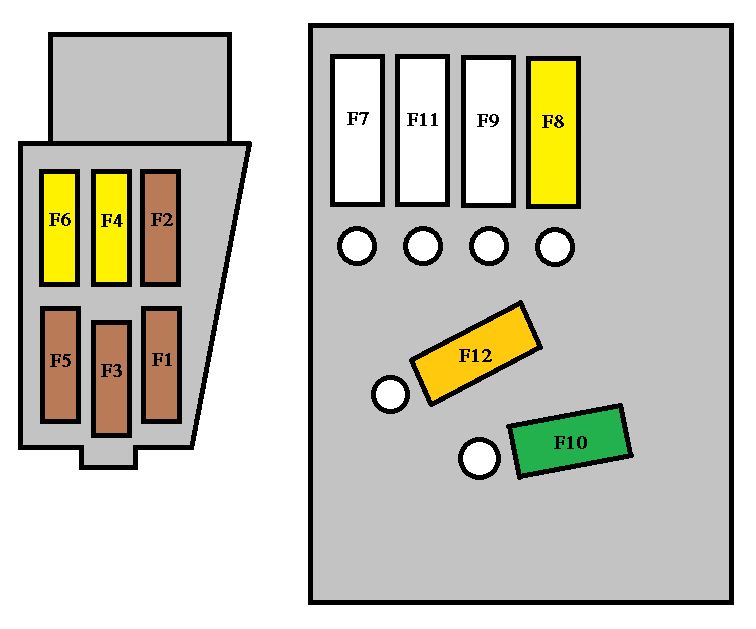

Table of mini and midi-fuses above the battery
| Fuse | Ampere rating [A] | Functions |
| F1 | 5 | Controlled air intake |
| F2 | 5 | Dual function brake switch |
| F3 | 5 | Battery charge unit |
| F4 | 25 | ABS/ESP electrovalves |
| F5 | 5 | ABS/ESP control unit |
| F6 | 15 | Electronic gear control gearbox |
| F7 | 80 | Power steering electropump assembly |
| F8 | 60 | Fan assembly |
| F9 | 80 | Pre-heat unit (Diesel). |
| F10 | 40 | ABS/ESP electropump assembly |
| F11 | 100 | Switching and protection unit |
| F12 | 30 | Electropump unit, electronic gear control gearbox |
Table of maxi-fuses
| Fuse | Ampere rating [A] | Functions |
| MF1 | 30 | Electric vacuum pump |
| MF2 | 50 | Trailer interface |
| MF3 | 60 | Passenger compartment fusebox |
| MF4 | 80 | Built-in systems interface |
| MF5 | 80 | Built-in systems interface |
| MF6 | 30 | Electric parking brake |
| MF7 | — | Not used |
| MF8 | 25 | Headlamp wash |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
