Peugeot 307 CC (2007 – 2008) – fuse box diagram
Year of production: 2007, 2008

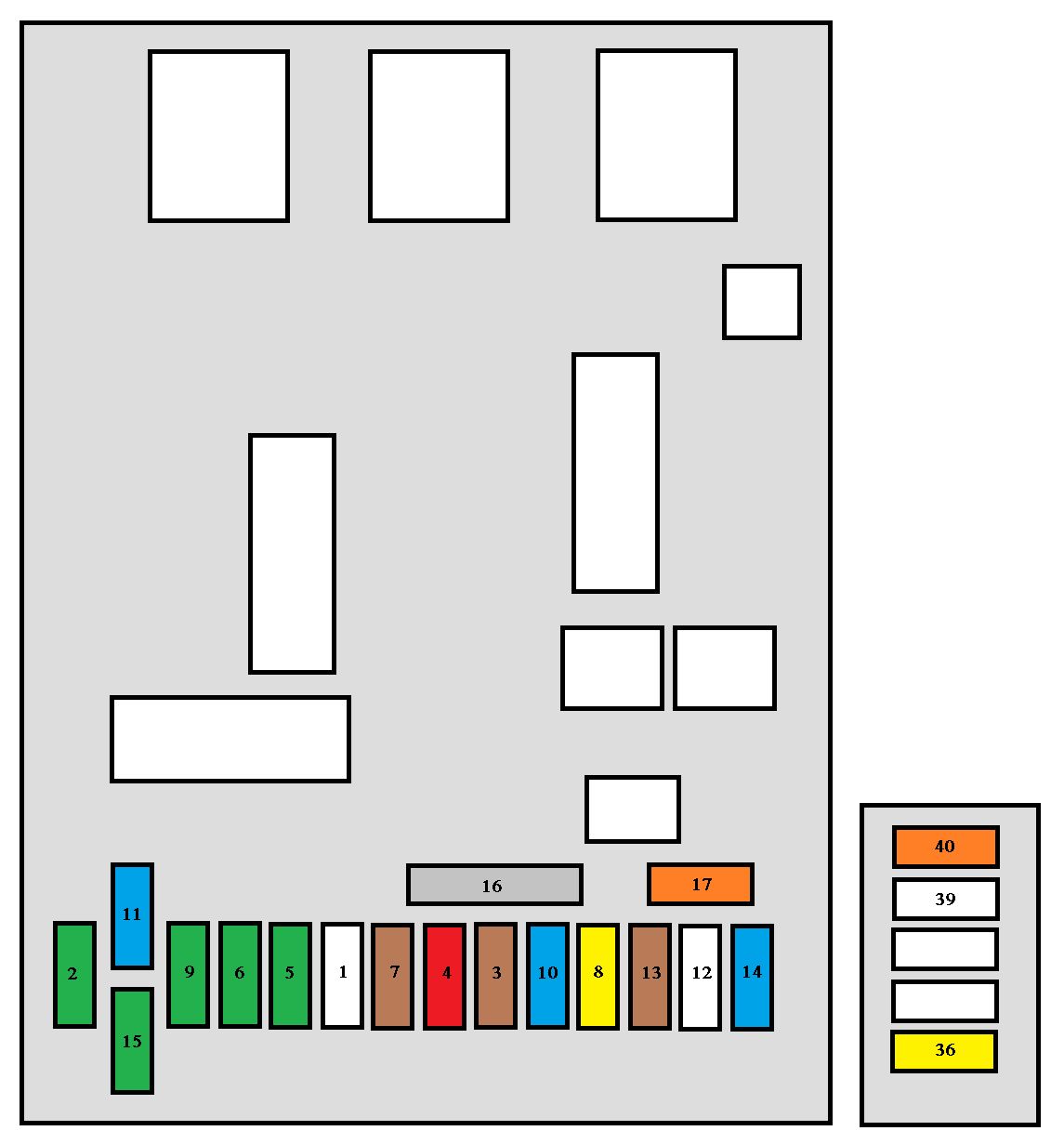

Fascia fuses
| Fuse | Ampere rating [A] | Functions |
| 36 | 20 | Hi-Fi amplifier |
| 40 | 30 | Retractable roof pump supply |
| Fuse | Ampere rating [A] | Functions |
| 1 | — | Not used |
| 2 | 30 | Locking and deadlocking |
| 3 | 5 | Air bags and pre-tensioners unit |
| 4 | 10 | Brake and clutch pedal switches, engine coolant level switch, steering wheel angle sensor, diagnostic socket, ESP sensor, particle emission filter pump, electrochromatic mirror |
| 5 | 30 | Front electric windows and heated mirrors supply |
| 6 | 30 | Rear electric windows supply, hinged flaps motor |
| 7 | 5 | Front and rear courtesy lights, map reading lights, glove box light |
| 8 | 20 | Multifunction display supply, audio equipment, audio/telephone, alarm siren, alarm control unit, trailer fuse box, steering wheel controls supply |
| 9 | 30 | 12V front socket, 12V rear socket |
| 10 | 15 | Automatic gearbox control unit, brake switch, tyre under-inflation detection control unit |
| 11 | 15 | Diagnostic socket, particle emission filter control unit, low current ignition switch |
| 12 | 15 | Rear parking assistance, Hi-Fi amplifier |
| 13 | 5 | Engine fuse box supply, rain and brightness sensor |
| 14 | 15 | Trailer fuse box, instrument panel, automatic air conditioning, air bags, pre-tensioners and rear protective pop-up roll-over hoops unit, hands-free kit |
| 15 | 30 | Locking and deadlocking supply |
| 16 | – | PARC shunt |
| 17 | 40 | Heated rear screen |
Engine compartment fuses

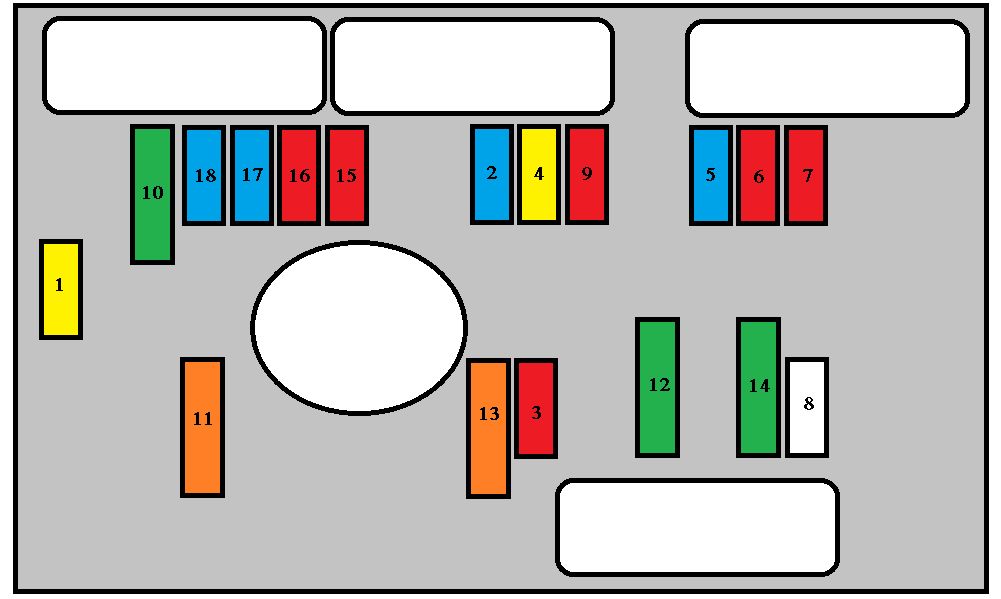

Peugeot 307 CC (2007 – 2008) – fuse box – engine compartment
| Fuse | Ampere rating [A] | Functions |
| 1 | 20 | Fan assembly relay control, engine control unit control |
| 2 | 15 | Horn |
| 3 | 10 | Front wash-wipe |
| 4 | 20 | Headlamp wash |
| 5 | 15 | Fuel pump and purge canister solenoid valve (2 litre petrol) |
| 6 | 10 | Four speed automatic gearbox control unit, automatic gearbox lever locking control, push control switch, fan assembly high speed relay, right and left xenon bulb headlamps |
| 7 | 10 | ABS/ESP control unit, power steering control unit |
| 8 | 20 | Starter control |
| 9 | 10 | Additional heating unit (Diesel), engine coolant level switch |
| 10 | 30 | Engine management actuators (ignition coil, solenoid valves, oxygen sensors, control units, injectors, heaters), purge canister solenoid valve (1.6 litre petrol) |
| 11 | 40 | Air conditioning blower |
| 12 | 30 | Windscreen wipers low/high speed |
| 13 | 40 | Built-in systems interface supply (ignition positive) |
| 14 | 30 | Air pump (2 litre petrol) |
| 15 | 10 | Right main beam headlamp |
| 16 | 10 | Left main beam headlamp |
| 17 | 15 | Left dipped headlamp |
| 18 | 15 | Right dipped headlamp |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
