Peugeot 308 mk2 (from 2016) – fuse box diagram
Year of production: 2016
Dashboard fuses
The fusebox is placed in the lower dashboard (left-hand side).
Version 1 (Full)

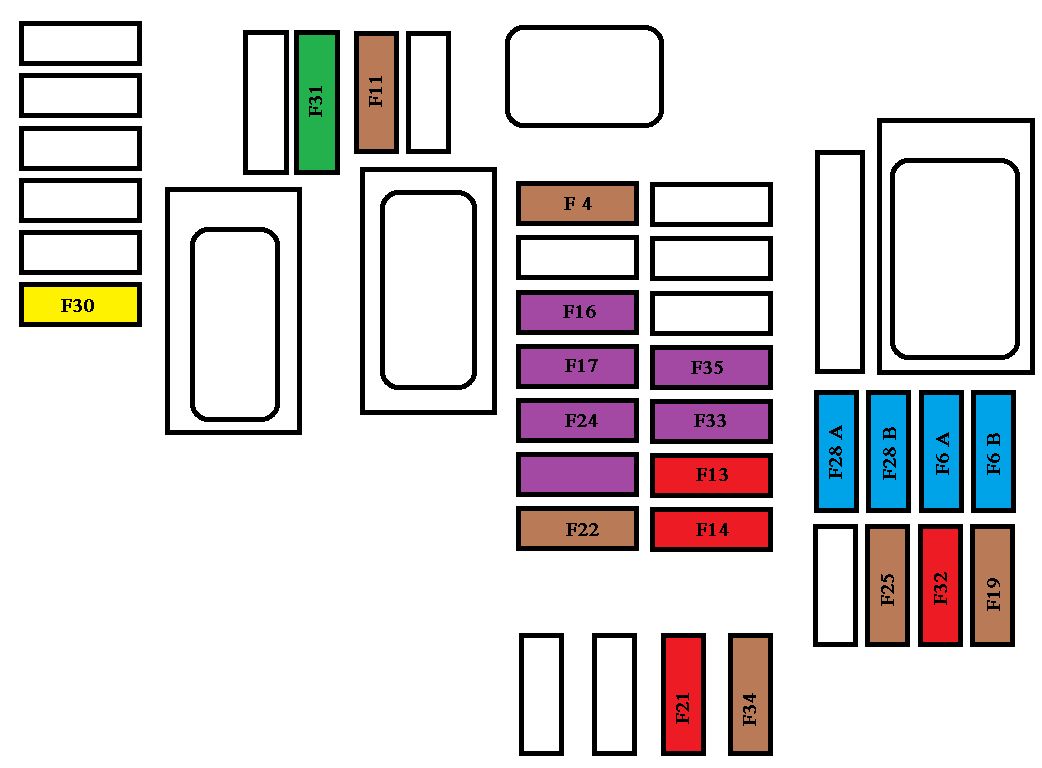

Peugeot 308 mk2 (from 2015) – fuse box – dashboard – version 1
Fuse
Ampere rating [A]
Functions
F4
5
Emergency and assistance calls
F6 A or B
15
Audio system, touch screen, CD player, navigation
F11
5
“Keyless Entry and starting” system
F13
10
Front 12 V accessory socket
F14
10
12 V accessory socket in the boot
F16
3
Glove box lamp, rear courtesy lamp
F17
3
Vanity mirror lamp, front courtesy lamp
F19
5
Instrument panel
F21
10
Multifunction screen, air conditioning
F22
5
Reversing camera, parking sensors
F24
3
Rain and sunshine sensor
F25
5
Airbags
F28 A or B
15
Audio system (battery +)
F30
20
Rear wiper
F31
30
Locks
F32
10
Hi-Fi amplifier
F33
3
Memorisation of driving positions
F34
5
Electric power steering
F35
3
Seat belts not fastened display
Version 2 (Eco)

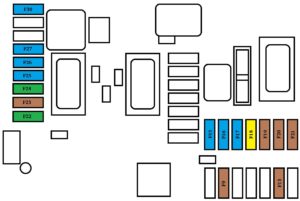

Peugeot 308 mk2 (from 2015) – fuse box – dashboard version 2
Fuse
Ampere rating [A]
Functions
F9
5
Emergency and assistance calls
F13
5
Reversing camera and parking sensors
F15
15
12 V accessory socket
F16
15
Cigarette lighter
F17
15
Audio system
F18
20
Touch screen, CD player, audio and navigation system
F19
5
Rain, sunshine sensor
F20
5
Airbags
F21
5
Instrument panel
F22
30
Interior, exterior, front and rear locks
F24
F23
5
Glove box lamp, vanity mirror, front and rear courtesy lamps
F25
15
Front/rear screenwash pump
F27
F26
15
Horn
F30
15
Rear wiper
Engine compartment fuses
The fusebox is located in the engine compartment near the battery.
Version 1 (Full)
Fusebox 1

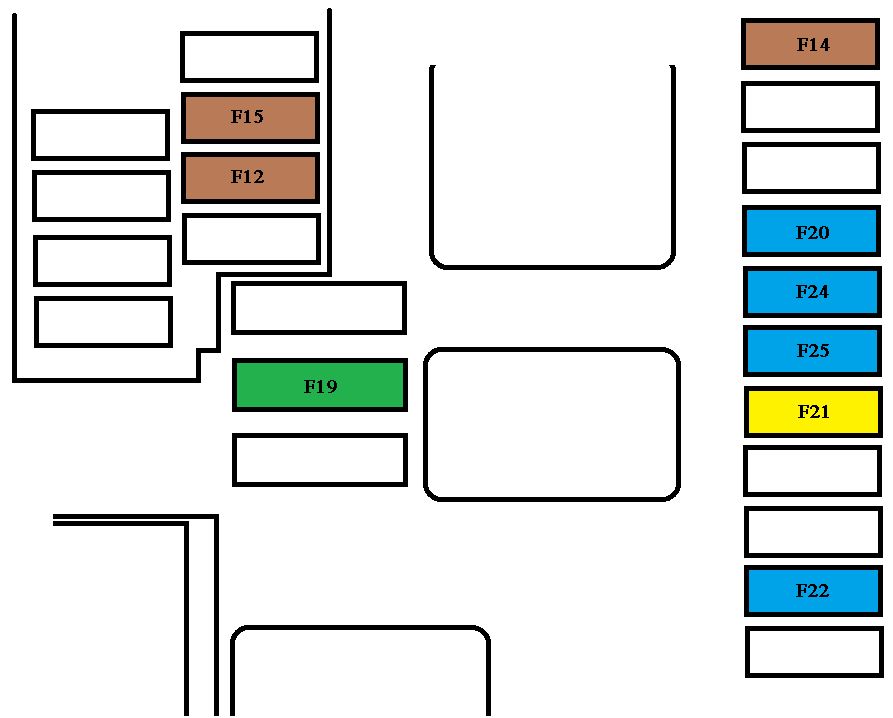

Peugeot 308 mk2 (from 2015) – fuse box – engine compartment – version 1 (Full)
Fuse
Ampere rating [A]
Functions
F12
5
Park Assist control unit
F14
25
Front and rear screenwash pump
F15
5
Power steering
F19
30
Front wiper motor
F20
15
Front and rear screenwash motors
F21
20
Headlamp wash
F22
15
Horn
F23
15
Right hand main beam headlamp
F24
15
Left hand main beam headlamp
Fusebox 2
Fuse
Ampere rating [A]
Functions
F8
30
Diesel emissions control system (AdBlue®)
F10
5
Automatic gearbox
F12
15
Automatic gearbox
Version 2 (Eco)

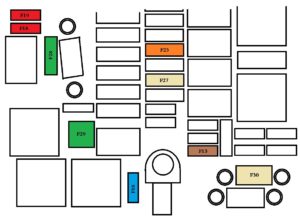

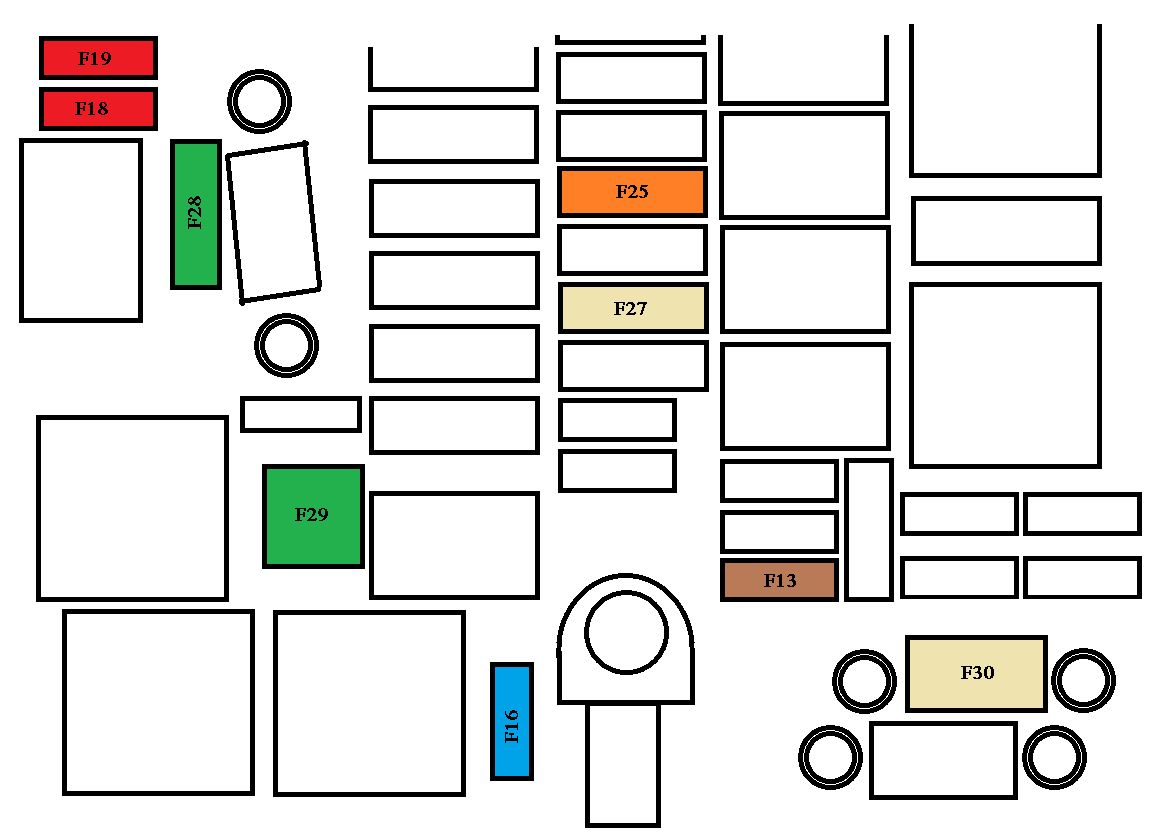

Peugeot 308 mk2 (from 2015) – fuse box – engine compartment – version 2 (Eco)
Fuse
Ampere rating [A]
Functions
F13
5
Built-in systems interface
F16
15
Front foglamps
F18
10
Right hand main beam headlamp
F19
10
Left hand main beam headlamp
F25
40
Headlamp wash relay (aftermarket fitment)
F27
25
Built-in systems interface
F28
30
Diesel emissions control system (AdBlue®)
F29
30
Front wiper motor
F30
80
Pre-heater plugs (Diesel), additional programmable heating (aftermarket fitment), headlamp wash pump
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
