Peugeot 607 (2006) – fuse box diagram
Year of production: 2006

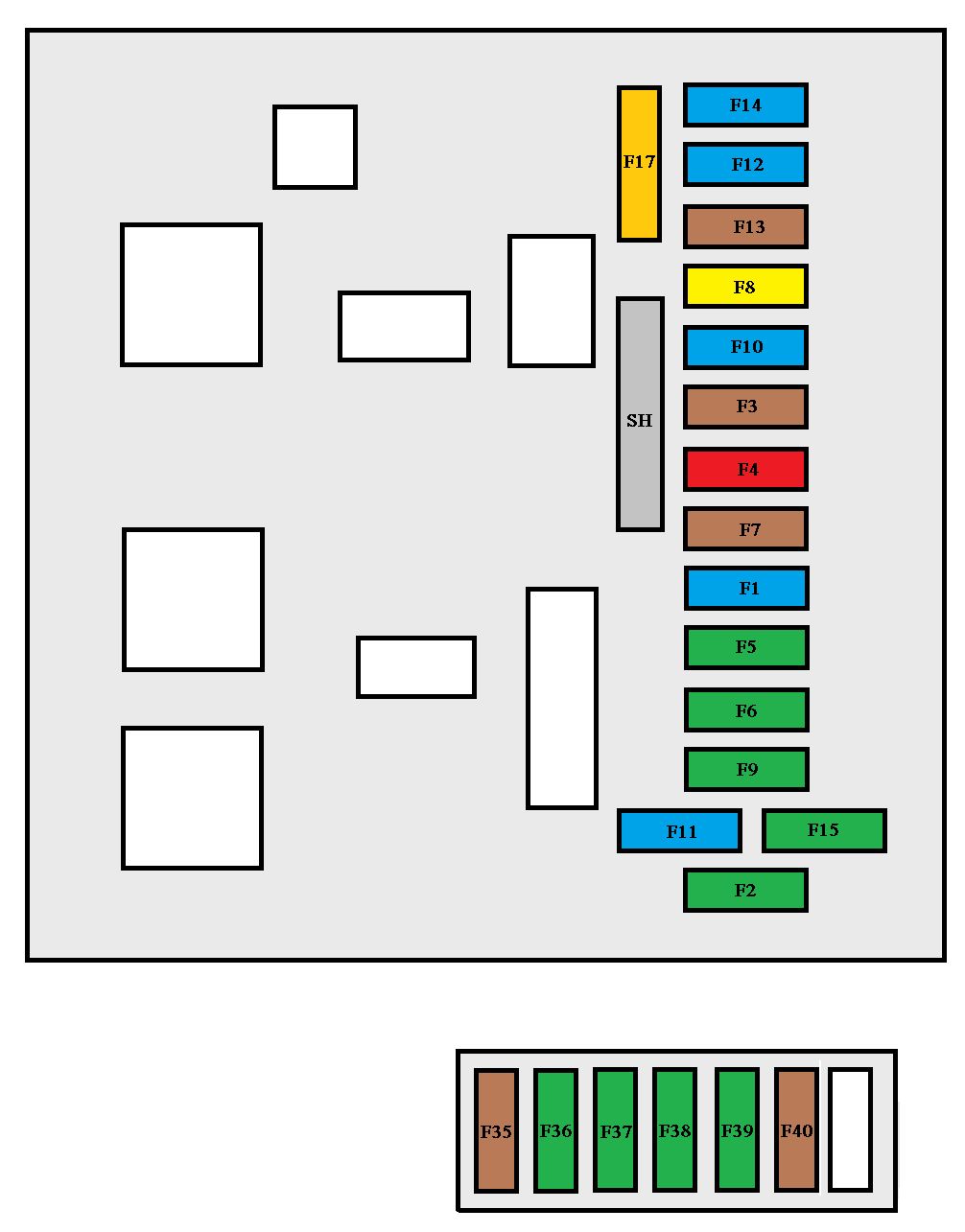

Dashboard fuses
| Fuse | Ampere rating [A] | Functions |
| F31 | 5 | Right-hand brake light |
| F32 | 5 | Left-hand brake light |
| F33 | 5 | Third brake light |
| F34 | 5 | Audio/telephone supply |
| F35 | 5 | Tyre under-inflation detection control unit, CD changer |
| F36 | 30 | Passenger seat relay |
| F37 | 30 | Passenger and rear right heated seats |
| F38 | 30 | Driver’s and rear left heated seats |
| F39 | 30 | Driver’s seat relay |
| F40 | 5 | Diagnostics socket |
| Fuse | Ampere rating [A] | Functions |
| F1 | 15 | Front wash-wipe pump and wash-wipe fluid level sensor |
| F2 | 30 | Locking and deadlocking earth |
| F3 | 5 | Air bags |
| F4 | 10 | Clutch switch, brake dual-function switch, diagnostic connector, ESP sensor, air bags andpre-tensioners unit, air conditioning BCP3 relay, electrochromatic mirror |
| F5 | 30 | Front electric windows and sunroof supply |
| F6 | 30 | Rear electric windows supply |
| F7 | 5 | Glove box switch, courtesy lights, map reading lights, courtesy mirror |
| F8 | 20 | Multifunction display supply, steering wheel control, alarm siren, trailer fusebox suppl |
| F9 | 30 | Front and rear lighters (100 W max.) |
| F10 | 15 | Additive reservoir control unit supply |
| F11 | 15 | Automatic gearbox control unit, automatic gearbox positions selection switch, ignition switch |
| F12 | 15 | Trailer fusebox supply, hands-free kit, seats relay, seat memory unit, rain and brightness sensor |
| F13 | 5 | Engine fusebox supply, headlamp adjustment supply |
| F14 | 15 | Parking assistance control unit supply, headlamp adjustment switch, instrument panel, air conditioning, air bags and pre-tensioners unit |
| F15 | 30 | Locking and deadlocking supply |
| F17 | 40 | Heated rear screen and heated mirrors |
Engine compartment fuses
| Fuse | Ampere rating [A] | Functions |
| F1 | 20 | Fan assembly relay control, engine control unit power relay |
| F2 | 15 | Horn |
| F3 | 10 | Front and rear wash-wipe |
| F4 | 20 | Headlamp wash |
| F5 | 15 | Fuel pump and purge canister solenoid valve |
| F6 | 10 | Power steering, suspension control unit, automatic gearbox |
| F7 | 10 | Engine control unit, ESP control unit |
| F8 | 15 | Starter coil |
| F9 | 10 | Level sensor, passenger compartment heating (HDI), Stop switch |
| F10 | 30 | Engine management actuators (ignition coil, solenoid valves, oxygen sensors, control units, injectors) |
| F11 | 40 | Air conditioning blower relay |
| F12 | 30 | Windscreen wipers relay |
| F13 | 40 | Built-in system interface supply (ignition positive) |
| F14 | 30 | Air pump (petrol) |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
