Pontiac Trans Sport (1995) – fuse box diagram
Year of production: 1995
Instrument Panel Fuse Block
Fuse Panel (3.1L V6)
The instrument panel fuse block is in the glovebox.
| Fuses | Usage |
| CTSY | Dome Lamps, Courtesy Lamps, Power Door Lock Switches, Glove Box Lamp, Power Mirrors, Power Sliding Delay Lock Module |
| ELC | Auto Level Control, Underhood Lamp |
| HORN | Horns, Horn Relay, Safety Belt Buzze |
| STOP HAZ | FrontRear Turn Lamps, Front Sidemarker Lamps, Rear Stop Lamps, Instrument Cluster Turn Indicator Lamps, Cruise Brake Switch |
| F PUMP | Fuel Pump, Oil Pressure SenderFuel Pump Switch |
| RDOIO/AUX | Radio, Front Cigar Lighter, Accessory Power Outlet |
| TAIL | Front Park Lamps, Rear Taillamps, Front Sidemarker Lamps, License Plate Lamp, Radio, HeatNentlAC Control Head, Power Sliding Door |
| ECM | Throttle Body Fuel Injection, Fuel Pump Relay, Elec. Vac. Reg. Valve, Elec. Control Module, Elec. Spark Control Module |
| TURN B/U | FrontRear Turn Lamps, Front Sidemarker Lamps, Cluster Turn Telltale, Back-up Lamps |
| GAUGES | Cluster, Anti-Lock Brake System Lamp Module, Elec. Level Control Sensor |
| LPS | Cluster, Radio, Wiper Switch, Headlamp Switch, Rear Blower Switch, HeatNentIAC Control Head, Door Switch Illumination, Front/Rear Ashtray Illumination Bulbs |
| ABS | Anti-Lock Brake System |
| RDO2 | Radio |
| R WIPER | Rear Wipermasher Motors; Overhead Console Compass |
| F WIPER | Front Wipermasher Motor |
| IGN | A/C Compressor, A/C Solenoid Box, Compressor Relay, Temp. Door Motor, Low Blower Relay; HealNent/AC Control Head; Cruise Module; Cooling Fan Relay; Rear Defogger Relay; Key Chime; Daytime Running Lamps Module; Vehicle Speed Sensor Buffer and Generator Charge Discrete, Transaxle Converter Clutch Switch |
| HTR-NC | FrontIRear Blower Motors, High Blower Relay |
| R BLW | Rear Blower, Rear HeatNent/AC |
Fuse Panel (3800 V6)

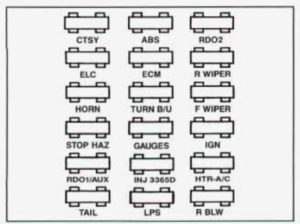

Pontiac Trans Sport – fuse box – instrument panel (engine 3800 V6)
The instrument panel fuse block is in the glovebox.
| Fuses | Usage |
| CTSY | Dome Lamps, Courtesy Lamps, Power Door Lock Switches, Glove Box Lamp, Power Mirrors, Power Sliding Delay Lock Module |
| ELC | Auto Level Control, Underhood Lamp |
| HORN | Horns, Horn Relay, Safety Belt Buzzer |
| STOP HAZ | FrontRear Turn Lamps, Front Sidemarker Lamps, Rear Stop Lamps, Instrument Cluster Turn Indicator Lamps |
| RDOIO/AUX | Radio, Front Cigar Lighter, Accessory Power Outlet |
| TAIL | Front Park Lamps, Rear Taillamps, Front Sidemarker Lamps, License Plate Lamp, Radio, HeatNentlAC Control Head, Power Sliding Door |
| ABS | Anti-Lock Brake System |
| ECM | Mass Air Flow Sensor, Electronic Control Module |
| TURN B/U | FrontRear Turn Lamps, Front Sidemarker Lamps, Cluster Turn Telltale, Back-up Lamps |
| GAUGES | Cluster, Anti-Lock Brake System Lamp Module, Elec. Level Control Sensor |
| INJ 3365D | Injector 3365 Fuse – Remote Location |
| LPS | Cluster, Radio, Wiper Switch, Headlamp Switch, Rear Blower Switch, HeatNentlAC Control Head, Door Switch Illumination, FrontRear Ashtray Illumination Bulbs |
| RDO2 | Radio |
| R WIPER | Rear Wipermasher Motors; Overhead Console Compass |
| F WIPER | Front Wipermasher Motor |
| IGN | A/C Solenoid Box, Temp. Door Motor, Low Blower Relay; HeatNentlAC Control Head; Cooling Fan Relay; Rear Defogger Relay; Key Chime; Daytime Running Lamps Module; Transaxle Converter Clutch Solenoid and Generator Charge Discrete |
| HTR-NC | Front/Rear Blower Motors, High Blower Relay |
| R BLW | Rear Blower, Rear HeatNentlAC |

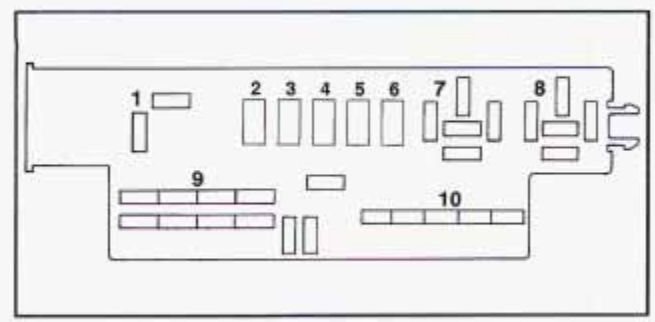

Circuit Breakermelay Panel
Circuit breakers and relays are located in the circuit breaker/relay panel. This is located behind the panel under the glove box, near the passenger’s door.
| Circuit Breakers | Usage |
| 1 | Hazard Flas ;hers |
| 2 | With 3800 V6 engine only: Canister Purge Solenoid, A/C Clutch Control Relay, Cruise Control |
| 3 | Not Used |
| 4 | Power Windows Circuit Breaker |
| 5 | Power Seat/Power Sliding Door Motor Circuit Breaker |
| 6 | Rear Defogger Circuit Breaker |
| 7 | Air Conditioning Blower Relay |
| 8 | Horn Relay |
| 9 | Chime Module |
| 10 | Defogger Timer Relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
