Pontiac Trans Sport (1996) – fuse box diagram
Year of production: 1996

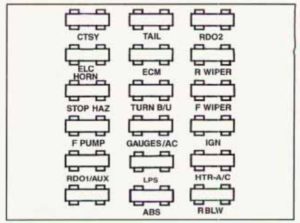

Instrument Panel Fuse Block
The instrument panel fuse block is in the glovebox.
| Fuses | Usage |
| CTSY | Automatic Door Lock Module, Dome Lamps, Courtesy Lamps, Power Door Lock Switches, Glove Box Lamp, Power Mirrors, Keyless Entry Receiver |
| ELC | Electronic Level C’ontrol, Air Inflator, Underhood Lamp |
| HORN | Horns, Horn Relay, Safety Belt Buzzer. Lamps On Reminder, Key in the Ignition Warning |
| STOP HAZ | Hazards, Rear Stoplamps, Anti-Lock Brake System (ABS), Center High-Mounted Stoplamp |
| F PUMP | Fuel Pump, Rear Engine Fan Relay |
| RDOIlAUX | Radio, Cigarette Lighter, Accessory Power Outlet, Trailer Harness, Heater-A/C Control |
| TAIL | Daytime Running Lamps (DRL) Module, Headlamp and Instrument Panel Dimmer Switch (to LPS fuse), Power Sliding Door Controller |
| ECM | Powertrain Control Module |
| TURN B/U | Automatic Door Locks Module, Back-up Lamps, Power Sliding Door Alarm Module, Fog Lamp Relay, Power Sliding Door Controller, Keyless Entry Receiver, Brake-Transaxle Shift Interlock (BTSI), Front/Rear Turn Lamps |
| GAUGES/AC | NC Compressor Relay, DRL Module, ABS, Electronic Level Control Height Sensor, Instrument Panel Cluster, Power Sliding Door Controller |
| LPS | Interior Lamps Dimming, Rear Climate Control Blower, Door Lock Switches, Temperature and Compass Display, Headlamp and Instrument Panel Dimmer Switch, Heater-A/C Control, Instrument Panel Cluster, Illumination for Power Sliding Door Switches |
| ABS | ABS Enable Relay |
| RD02 | Radio, Steering Wheel Controls |
| R WIPER | Temperature and Compass Display, Rear Window Wipermasher |
| F WIPER | Windshield and Rear Window Wipermasher |
| IGN | Cruise Control Switch, DRL Module, Heater-NC Control, Speedometer and Tachometer, Rear Window Defogger Relay, Safety Belt Reminder Chime, Lamps on Reminder, Key in the Ignition Warning |
| HTR-NC | Low Speed NC Blower Relay |
| R BLW | Rear Climate Control Blower |

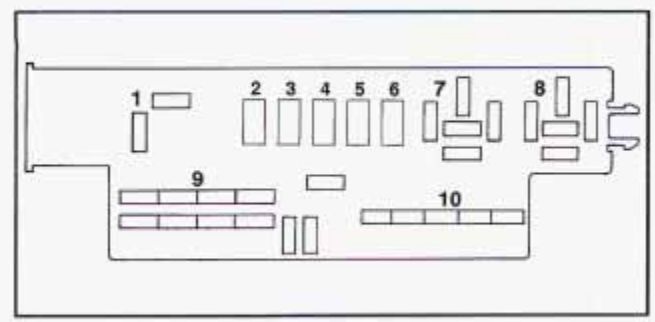

Circuit Breakermelay Panel
Circuit breakers and relays are located in the circuit breaker/relay panel. This is located behind the panel under the glove box, near the passenger’s door.
| Circuit Breakers | Usage |
| 1 | Hazard Flas ;hers |
| 2 (fuse) | Automatic Trarisaxle, Evaporative Emission (EVAP) Canister Purge Solenoid Valve, Evaporative Emissions Canister Purge Vacuum Diagnostic Switch, Linear Exhaust Gas Recirculation (EGR) Valve, Front Engine Fan Relay, Heated Oxygen Sensors, Mass Air Flow (MAF) Sensor, Powertrain Control Module (PCM) |
| 3 | Daytime Running Lamps (Canada Only) |
| 4 | Power Windows |
| 5 | Power Seat, Bower Sliding Door Controller, Power Door Lock |
| 6 | Rear Defogger |
| 7 | Air Conditioning Blower, Rear Blower Motor |
| 8 | Horns |
| 9 | Safety Belt Reminaer Chime, Lamps on Reminder, Key In the Ignition Warning (Chime Module) |
| 10 | Rear Defogger Time |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market
