Porshe 914 (1969 – 1976) – fuse box diagram
Year of production: 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976

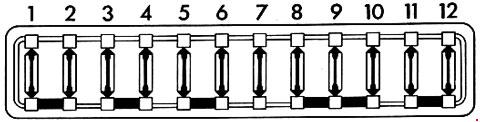

Fuse box
| No. | A | Description |
| 1 | 16 | ’69-’72: Retractable Headlight Motors |
| 25 | ’73-’76: Retractable Headlight Motors | |
| 2 | 8 | Emergency Flashers, Interior Light (possibly turn signals and their indicator lights, parking brake indicator light, speedometer gauge light, fuel gauge light, tach gauge light, temp control light) |
| 3 | 16 | ’69-’72: Fog/Driving Lights, parking lights indicator light, horn |
| 8 | ’73-’76: Fog/Driving Lights, parking lights indicator light, horn | |
| 4 | 8 | Fresh Air Fan, Reverse Light Switch (possibly tail lights, tach, fuel gauge, oil temp gauge, voltage gauge, alternator idiot light, low fuel idiot light, oil pressure idiot light, clock) |
| 5 | 16 | ’69-’72: Wipers, Cigarette Lighter, Turn Signals, Brake Lights, Backup Light (possibly horn, heater control lights, fresh air fan indicator light, fresh air fan motor) |
| 25 | ’73-’76: Wipers, Cigarette Lighter, Turn Signals, Brake Lights, Backup Light (possibly horn, heater control lights, fresh air fan indicator light, fresh air fan motor) | |
| 6 | 8 | License Plate Lights, clock light, voltage gauge light, rear trunk light, engine bay light (possibly oil temp light, defrost light) |
| 7 | 8 | Parking Lights – Right (possibly side marker lights, right brake light) |
| 8 | 8 | Parking Lights – Left (possibly side marker lights, left brake light) |
| 9 | 8 | Right Low Beam |
| 10 | 8 | Left Low Beam |
| 11 | 8 | Right High Beam |
| 12 | 8 | Left High Beam, and high beam indicator light |
