Ranault Capture (from 2013) – fuse box diagram

Ranault Capture (from 2013) – fuse box diagram

Year of production: 2013, 2014, 2015, 2016, 2017, 2018, 2019

Fuse box

Renault Capture - fuse box diagram
Renault Capture – fuse box diagram

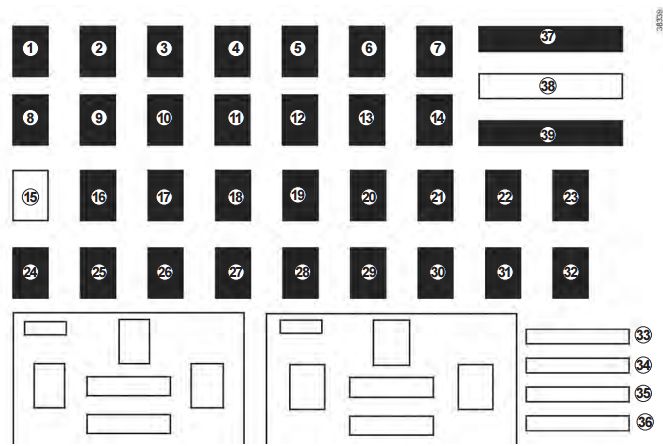

Fuse Allocation
1 Power-assisted steering
2 Injection
3 Airbag
4 Automatic gearbox, LPG
5 Dipped beam headlights
6 Front fog lights, front side lights, main beam headlights
7 Horn
8 Left-hand main beam headlight
9 Right-hand main beam headlight
10 Right-hand dipped beam headlight
11 Left-hand dipped beam headlight
12 Left-hand side lights
13 Right-hand side lights
14 Rear windscreen wiper
15 Empty location
16 Headlight beam adjustment
17 Daytime running lights
18 Brake lights
19 Electric door mirrors
20 ABS, ESP
21 Interior lighting
22 Vehicle On/Off button
23 Radio
24 Passenger compartment ECU
25 Passenger compartment ECU
26 Direction indicator lights
27 Central locking of opening elements
28 UCE energy management
29 UCE energy management
30 Alarm
31 Instrument panel
32 Cigarette lighter
33 Rear fog lights
34 Front seat heating
35 Rear screen de-icer
36 Towbar
37 Front windscreen wiper
38 Empty location
39 Front windscreen wiper

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
