Renault Clio (2017) – fuse box diagram
Year of production: 2017

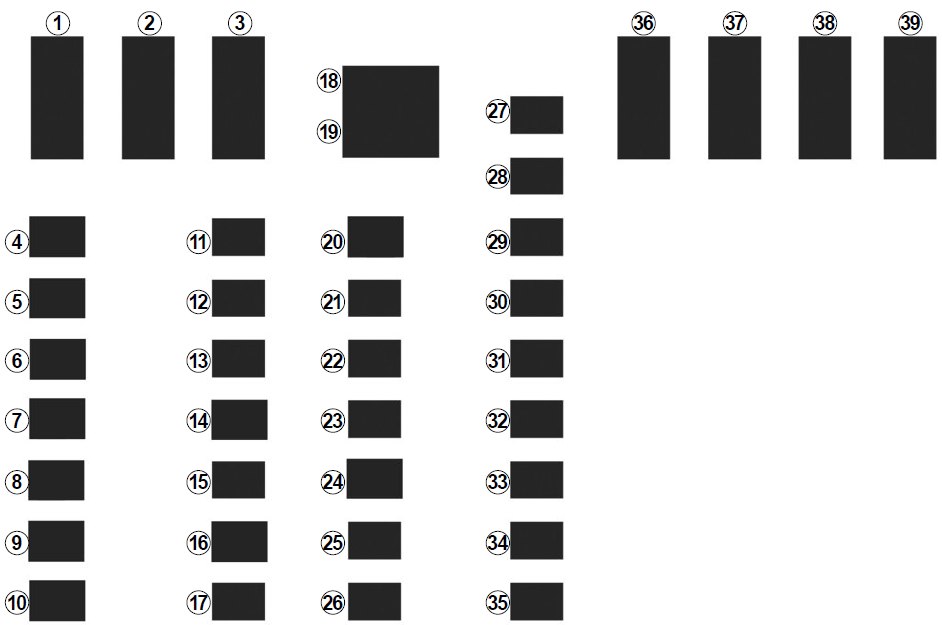

Allocation of fuses
Fuses
Fuse | Allocation |
1 | Front windscreen wiper, controls under steering wheel |
2 | Front left-hand daytime running lights, right-hand side lights, left-hand main beam headlight, right-hand dipped beam headlight, front fog lights |
3 | Interior lighting, registration plate lighting, fog lights |
4 | Right-hand side lights, rear side lights |
5 | Left-hand side lights, front side lights |
6 | Dipped beams, front right-hand daytime running light, left-hand side lights, right-hand main beam headlight |
7 | Left-hand dipped beam headlight |
8 | Right-hand main beam headlight |
9 | Left-hand main beam headlight, steering column controls |
10 | Steering column controls, speed limiter/cruise control, interior rear-view mirror, belt warning module, Parking sensor, additional heating, electric headlight beam adjustment, rear screen de-icer |
11 | Central door locking, rain and light sensor, steering wheel angle sensor, vehicle start button, electric rear windows |
12 | Courtesy light, luggage compartment light, air conditioning, electric windows |
13 | ABS-ESC, brake switch |
14 | Steering column controls, brake switch |
15 | Horn |
16 | Rear fog lights |
17 | Cigarette lighter |
18 | Radio and multimedia, diagnostic socket |
19 | Power-assisted steering |
20 | GPL |
21 | Airbag, electric locking of steering column |
22 | Injection, starting, fuel pump |
23 | Brake switch, rear screen wiper, passenger compartment ECU |
24 | Daytime running lights |
25 | Electric headlight beam adjustment, rear screen, heating, parking sensor, cruise control, radio, heated seat, seat belt warning |
26 | Automatic gearbox |
27 | Reversing lights, rear wiper, passenger compartment ECU, automatic gearbox |
28 | Instrument panel |
29 | Steering column controls, Alarm |
30 | Air conditioning, steering column controls, energy ECU |
31 | Wipers, rear reversing lights, energy ECU |
32 | Central locking of opening elements |
33 | Direction indicator lights |
34 | Passenger compartment ECU, hands-free access |
35 | Interior lighting, electric windows, air conditioning, electric door mirrors, brake lights, ABS, passenger compartment ECU |
36 | Towbar socket |
37 | Heated seats |
38 | Heated rear screen |
39 | Electric door mirror |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
