Renault Duster (2015 – 2016) – fuse box diagram
Year of production: 2015, 2016

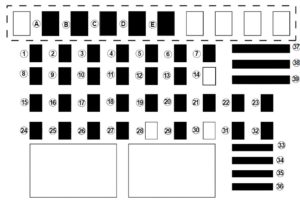

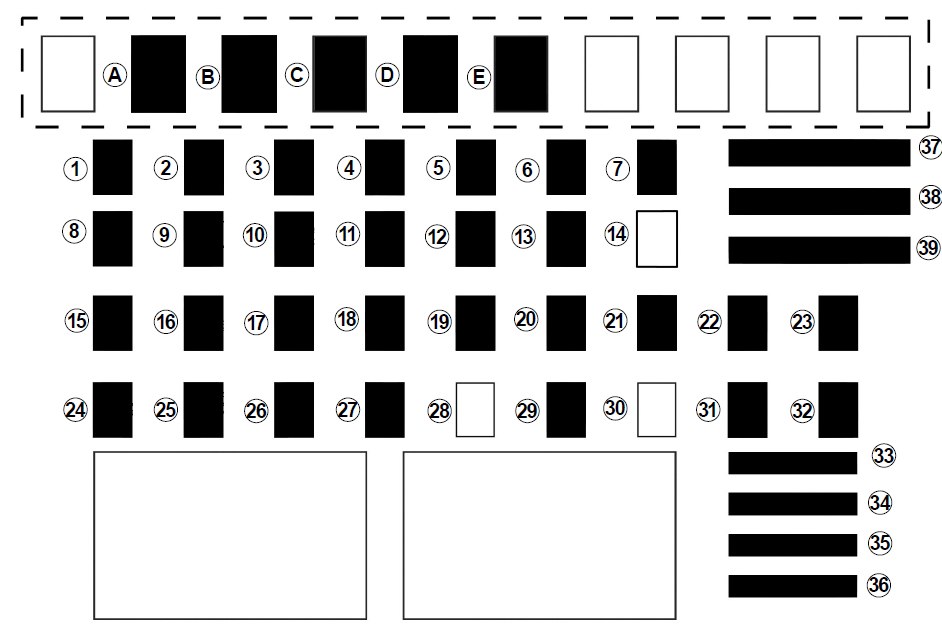

Allocation of fuses in the passenger compartment
Fuse
| Fuse | Allocation |
| A | Driver’s side window winder |
| B | 4-wheel drive (4WD) transmission |
| C | LPG |
| D | Rear accessories socket |
| E | Passenger compartment ECU, starter |
| 1 | Front electric window |
| 2 | Left-hand main beam headlight |
| 3 | Right-hand main beam headlight |
| 4 | Left-hand dipped beam headlight |
| 5 | Right-hand dipped beam headlight |
| 6 | Rear lights |
| 7 | Front side lights |
| 8 | Rear electric windows |
| 9 | Rear fog lights |
| 10 | Horn |
| 11 | Automatic door locking |
| 12 | ABS-ESC, brake switch, clutch switch |
| 13 | Interior lights, boot light, glovebox light |
| 14 | Empty location |
| 15 | Windscreen wiper |
| 16 | Cruise control/Speed limiter, unfastened seat belt warning, parking distance control, multimedia, air conditioning, heated seats, automatic gearbox lever, UCH |
| 17 | Daytime running lights |
| 18 | Brake lights |
| 19 | Injection, instrument panel or dashboard, passenger compartment, sequential gearbox lever |
| 20 | Airbag |
| 21 | 4-wheel drive transmission (4WD), LPG, automatic gearbox, sequential gearbox, reverse gear |
| 22 | Power-assisted steering |
| 23 | Heated rear windscreen, heated seats, seatbelt alarm, parking distance control, additional passenger compartment heating, cruise control/speed limiter, heated windscreen |
| 24 | Passenger compartment ECU |
| 25 | Passenger compartment ECU |
| 26 | Direction indicator lights |
| 27 | Steering column control |
| 28 | Not used |
| 29 | Steering column control |
| 30 | Not used |
| 31 | Instrument panel |
| 32 | Radio, passenger compartment air conditioning control panel, passenger compartment ventilation, rear accessories socket |
| 33 | Cigar lighter |
| 34 | Diagnostics and radio socket |
| 35 | Defrosting rearview mirror |
| 36 | Electric door mirrors |
| 37 | Passenger compartment ECU, starter |
| 38 | Front windscreen wiper |
| 39 | Passenger compartment ventilation |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
