Saab 9-3 (1998 – 2002) – fuse box diagram
Year of production: 1998, 1999, 2000, 2001, 2002
Fuse panel in the instrument panel

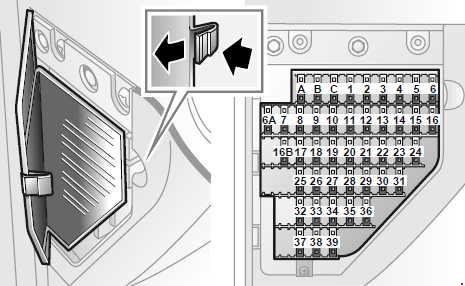

Saab 9-3 – fuse box diagram – instrument panel
No. A Function
A
–
–
B
10
Stop lights, trailer
C
30
Cabin fan, ACC
1
30
Electrically heated rear window and rear-view mirrors
2
20
Direction indicators
3
30
Cabin fan, A/C
4
15
Trunk light; switch illumination; electrically powered radio antenna
5
30
Electrically operated front seat, right
6
30
Cigarette lighter
6B
7.5
Automatic transmission
7
30
Rear window operators, rear-view mirrors, sunroof
8
15
Rear wiper
9
7.5
ACC panel
10
–
–
11
7.5
DICE / TWICE
12
20
Stop lights; front fog lights
13
15
Diagnostics; radio
14
30
Front window motors
15
20
Daytime running lights
16
30
Electrically operated front seat, left
16B
30
Control module, engine management system
17
15
DICE/TWICE; instruments; memory for electrically operated driver’s seat
18
10
Airbag
19
10
ABS; A/C; rear fog light
20
20
Electric heating, front seats
21
10
Manual A/C; soft top (Convertible)
22
15
Cruise Control; direction indicators
23
20
Soft top (Convertible); telephone
24
7.5
Radio
25
30
Central locking
26
30
Control module, engine management system; ignition cassette
27
15
High beam flash; ACC
28
10
Engine management system
29
10
Right parking light; number-plate lighting
30
10
Left parking light
31
20
Reversing light; windshield wipers; headlight beam-length adjustment
32
15
Fuel pump
33
15
Electric heating of rear seat
34
10
SID; control module; automatic transmission
35
15
DICE/TWICE; main instrument panel; interior lighting
36
10
Relay, starter
37
–
–
38
25
Oxygen sensor (lambda probe)
39
–
–
Relay holder (Under the instrument panel next to the steering wheel)
Saab 9-3 – fuse box diagram – relay holder -instrument panel
No. Function
A
Electric heating of rear seat
B
Reversing light, cars with automatic transmission
C1
–
C2
Lock motor, trunk lid
D1
Rear wiper
D2
Rear-window washing
E
Ignition switch
F
–
G
Windshield wipers (intermittent)
H
Rear-window heating
I
Fuel pump
J
–
K
Start relay
L
Main relay (injection system)
Fuses and relays in the engine bay (left side)

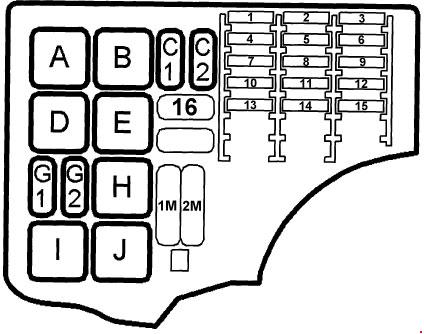

Saab 9-3 – fuse box diagram – engine compartment
No. A Function
1
10
Horn
2
15
Front fog lights
3
40
Radiator fan, low speed
4
10
Vacuum pump
5
15
A/C-compressor
6
10
Left low beam
7
10
Right low beam
8
10
Left high beam
9
10
Right high beam
10
7.5
Headlight wipers
11
–
–
12
–
Extra lights
13
7.5
APC
14
10
Extra heater; water pump (Europe)
15
15
Extra heater (Europe)
MAXI 1
30
Radiator fan, high speed
MAXI 2
50
ABS
Relays
A
Low beam
B
High beam
C1
Extra heater (Europe)
C2
Vacuum pump (Turbo aut.)
D
Radiator fan, low speed
E
Lamp check (filament monitor, front)
F1
–
F2
–
G1
Horn
G2
Front fog lights
H
–
I
Radiator fan, high speed
J
A/C-compressor
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
