Saab 9-7X (2007 – 2008) – fuse box diagram
Year of production: 2007, 2008
Engine compartment fuse block
The engine compartment fuse block is located in the engine compartment, on the passenger’s side of the vehicle.

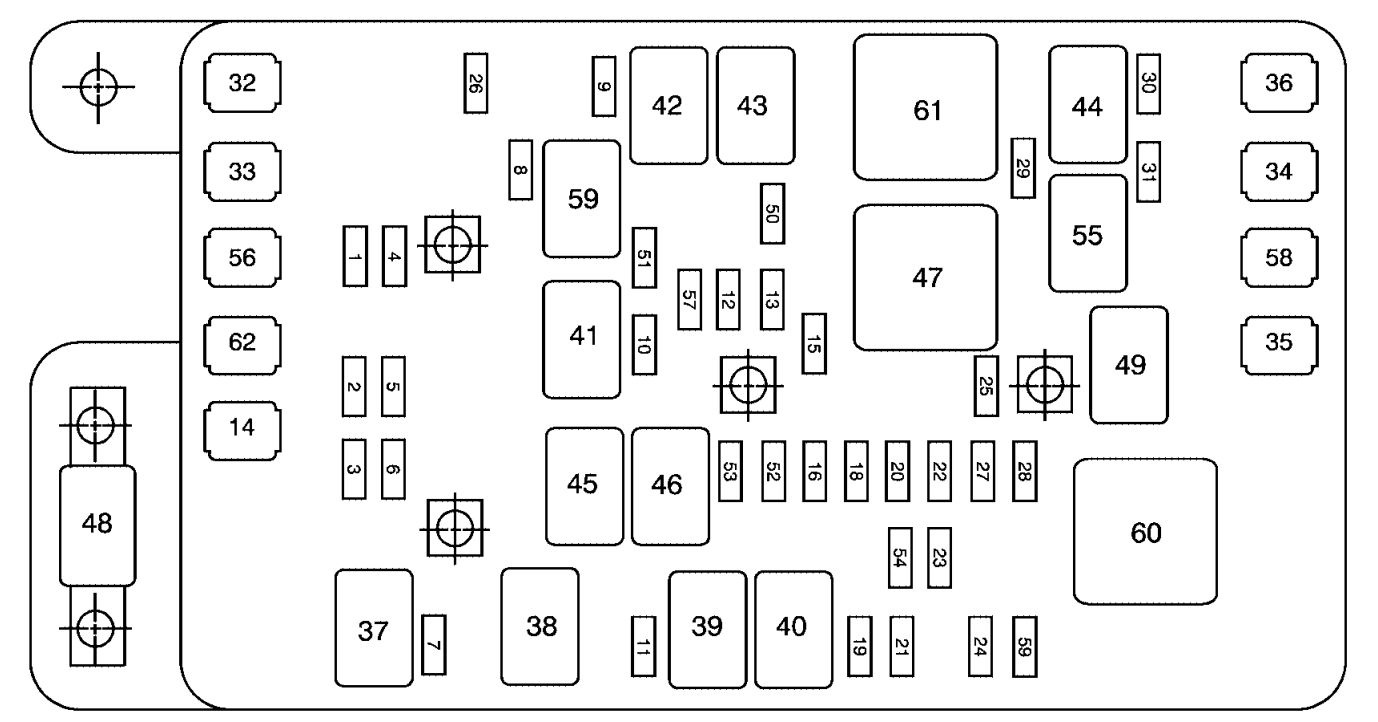

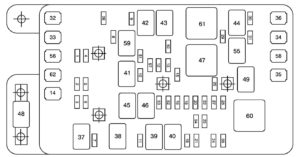

L6 Engine
| Fuse | Usage |
| 1 | Electronically Controlled Air Suspension |
| 2 | Passenger’s Side Headlamp High Beam |
| 3 | Passenger’s Side Headlamp Low Beam |
| 4 | Trailer Back-Up |
| 5 | Driver’s Side Headlamp High Beam |
| 6 | Driver’s Side Headlamp Low Beam |
| 7 | Windshield Wiper |
| 8 | Automatic Transfer Case |
| 9 | Windshield Washer |
| 10 | Powertrain Control Module B |
| 11 | Fog Lamps |
| 12 | Stoplamp |
| 13 | Cigar Lighter |
| 15 | Electric Adjustable Pedals |
| 16 | Ignition B |
| 18 | Airbag System |
| 19 | Electric Brake |
| 20 | Cooling Fan |
| 21 | Horn |
| 22 | Ignition E |
| 23 | Electronic Throttle Control |
| 24 | Instrument Panel Cluster/Driver Information Center (DIC) |
| 25 | Brake Transmission Shift Interlock |
| 26 | Transmission Control Module (TCM) Caniste |
| 27 | Backup |
| 28 | Powertrain Control Module I |
| 29 | Oxygen Sensor |
| 30 | Air Conditioning |
| 31 | Truck Body Controller 1 |
| 50 | Passenger’s Side Trailer Turn |
| 51 | Driver’s Side Trailer Turn |
| 52 | Hazard Flashers |
| 53 | Headlamp Driver Module |
| 54 | Air Injection Reactor Solenoid |
| 57 | Ignition A1 |
| 59 | Regulated Voltage Control |
| J-Case Fuse | Usage |
| 14 | Trailer Stoplamp/Turn Signal |
| 32 | Trailer |
| 33 | Anti-lock Brake System |
| 34 | Ignition A |
| 35 | Driver’s Side Headlamp |
| 36 | Blower Motor |
| 56 | Air Pump |
| 58 | Passenger’s Side Headlamp |
| 62 | Vehicle Stability Enhancement System (StabiliTrak®) |
| Relays | Usage |
| 37 | Headlamp Washer |
| 38 | Rear Windshield Wiper/Washer |
| 39 | Fog Lamps |
| 40 | Horn |
| 41 | Fuel Pump |
| 42 | Windshield Washer |
| 43 | High-Beam Headlamp |
| 44 | Air Conditioning |
| 45 | Cooling Fan |
| 46 | Headlamp Driver Module |
| 47 | Starter |
| 49 | Electric Adjustable Pedals |
| 55 | Air Injection Reactor Solenoid |
| 59 | Low-Beam Headlamp |
| 60 | Ignition 1 |
| 61 | Powertrain |
| 62 | Vehicle Stability Enhancement System (StabiliTrak®) |
| Misc. | Usage |
| 48 | Instrument Panel Battery |

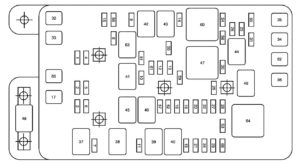

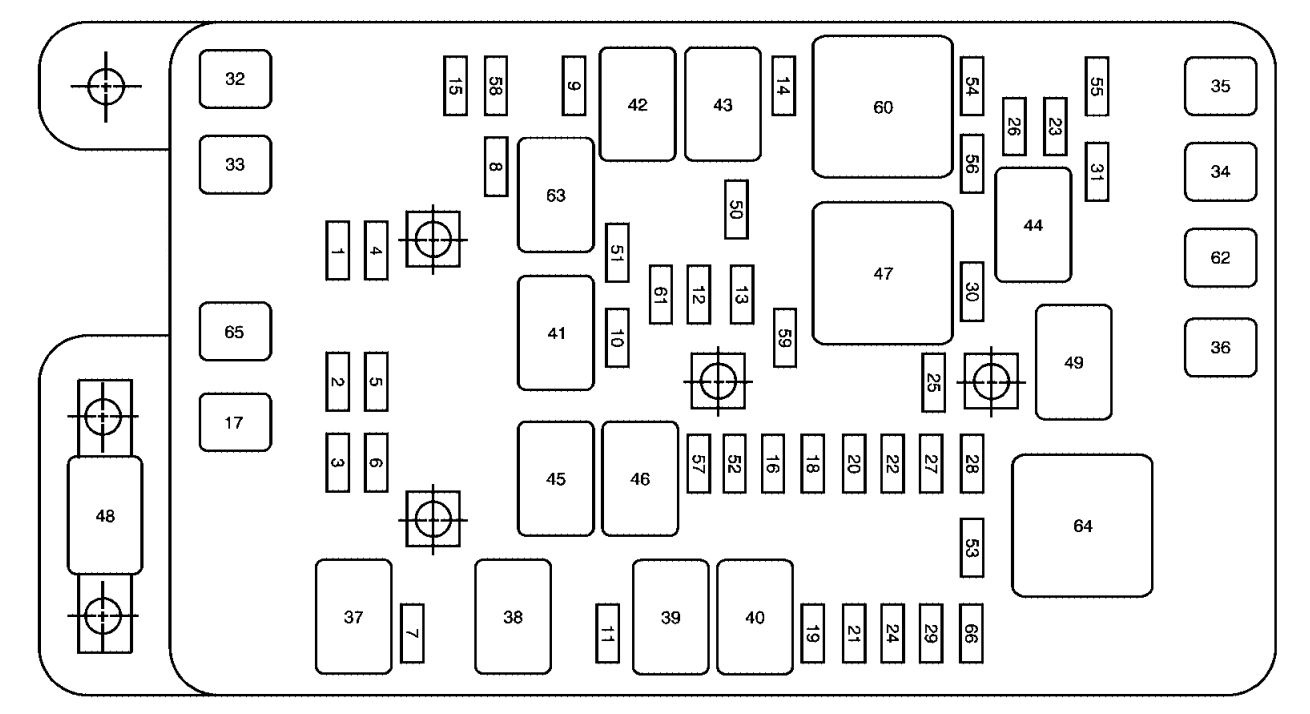

V8 Engine
| Fuse | Usage |
| 1 | Electronically Controlled Air Suspension |
| 2 | Passenger’s Side Headlamp High Beam |
| 3 | Passenger’s Side Headlamp Low Beam |
| 4 | Trailer Back-Up |
| 5 | Driver’s Side Headlamp High Beam |
| 6 | Driver’s Side Headlamp Low Beam |
| 7 | Windshield Wiper |
| 8 | Automatic Transfer Case |
| 9 | Windshield Washer |
| 10 | Powertrain Control Module B |
| 11 | Fog Lamps |
| 12 | Stoplamp |
| 13 | Cigar Lighter |
| 14 | Ignition Coils |
| 15 | Transmission Control Module/Canister |
| 16 | Ignition B |
| 18 | Airbag System |
| 19 | Electric Brake |
| 20 | Cooling Fan |
| 21 | Horn |
| 22 | Ignition E |
| 23 | Electronic Throttle Control |
| 24 | Instrument Panel Cluster/Driver Information Center |
| 25 | Brake Transmission Shift Interlock |
| 26 | Engine 1 |
| 27 | Backup |
| 28 | Engine Control Module 1 |
| 29 | Engine Control Module |
| 30 | Air Conditioning |
| 31 | Injector Bank A |
| 50 | Passenger’s Side Trailer Turn |
| 51 | Driver’s Side Trailer Turn |
| 52 | Hazard Flashers |
| 53 | Transmission |
| 54 | Oxygen Sensor B |
| 55 | Oxygen Sensor A |
| 56 | Injector Bank B |
| 57 | Headlamp Driver Module |
| 58 | Truck Body Controller 1 |
| 59 | Electric Adjustable Pedals |
| 61 | Ignition A1 |
| 66 | Regulated Voltage Control |
| J-Case Fuse | Usage |
| 17 | Trailer Turn Signal, Stoplamp |
| 32 | Trailer |
| 33 | Anti-lock Brake System |
| 34 | Ignition A |
| 35 | Blower Motor |
| 36 | Driver’s Side Headlamp |
| 62 | Passenger’s Side Headlamp |
| 65 | Vehicle Stability Enhancement System (StabiliTrak®) |
| Relays | Usage |
| 37 | Headlamp Washer |
| 38 | Rear Wiper |
| 39 | Fog Lamps |
| 40 | Horn |
| 41 | Fuel Pump |
| 42 | Windshield Washer |
| 43 | High-Beam Headlamp |
| 44 | Air Conditioning |
| 45 | Cooling Fan |
| 46 | Headlamp Driver Module |
| 47 | Starter |
| 49 | Electric Adjustable Pedals |
| 60 | Powertrain |
| 61 | Low-Beam Headlamp |
| 64 | Ignition 1 |
| Misc. | Usage |
| 48 | Instrument Panel Battery |
Rear underseat fuse block
The rear underseat fuse block is located on the driver’s side of the vehicle, under the second row seat.
| Fuses | Usage |
| 01 | Right Door Control Module |
| 02 | Left Door Control Module |
| 03 | Liftgate Module 2 |
| 04 | Truck Body Controller 3 |
| 05 | Blank |
| 06 | Blank |
| 07 | Truck Body Controller 2 |
| 08 | Power Seats |
| 09 | Rear Wiper |
| 10 | Driver Door Module |
| 11 | Amplifier |
| 12 | Passenger Door Module |
| 13 | Blank |
| 14 | Driver Side Rear Parking Lamps |
| 15 | Blank |
| 16 | Vehicle Center High-Mounted Stoplamp (CHMSL) |
| 17 | Passenger Side Rear Parking Lamps |
| 18 | Locks |
| 19 | Liftgate Module/Driver Seat Module |
| 20 | Blank |
| 21 | Locks |
| 23 | Blank |
| 24 | Unlock |
| 25 | Ignition 0 |
| 26 | Overhead Battery/OnStar® System |
| 27 | Rainsense™ Wipers |
| 28 | Sunroof |
| 29 | Accessory |
| 30 | Parking Lamps |
| 31 | Truck Body Controller Accessory |
| 32 | Truck Body Controller 5 |
| 33 | Front Wipers |
| 34 | Ignition 3 |
| 35 | Vehicle Stop |
| 36 | Transmission Control Module |
| 37 | Heat Ventilation Air Conditioning B |
| 38 | Front Parking Lamps |
| 39 | Rear Left Turn Signal |
| 40 | Heat, Ventilation, Air Conditioning 1 |
| 41 | Front Right Turn Signal |
| 42 | Radio |
| 43 | Trailer Park |
| 44 | Rear Right Turn Signal |
| 45 | Blank |
| 46 | Auxiliary Power 1 |
| 47 | Blank |
| 48 | Ignition 0 |
| 49 | Not Used |
| 50 | Blank |
| 51 | Front Left Turn Signal |
| 52 | Brakes |
| 53 | Truck Body Controller 4 |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
